PTH03060 | Advanced Energy


Not for New Designs

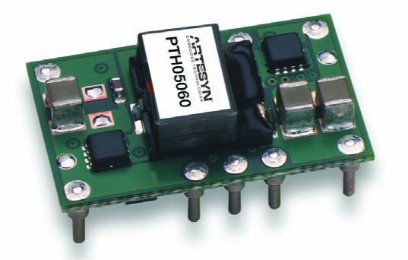

25 W (10 A) Non-Isolated DC-DC Converters

The PTH03060 series of non-isolated DC-DC converters offers some of the industry’s most advanced point-of-load (POL) functions, including Auto-Track™ (a Texas Instruments trademark) sequencing for controlled power-up/power-down of complex semiconductor devices, such as DSPs, FPGAs, and ASICs. These 25 W DC-DC converters offer up to 93% efficiency and are Point-of-Load Alliance (POLA)-compliant. Delivering 10 A and a trimmable output voltage (0.8 to 2.5 VDC) from an input of 2.95 to 3.65 VDC to meet your semiconductor power needs, the converters have an installed height of just 0.33 inch and a small footprint of 0.62 x 0.99 inch. Standard features include pre-bias startup, input undervoltage lockout, remote sense, remote on/off, and auto-resetting short-circuit protection. The parts are available in through-hole horizontal and surface-mount versions.


  • 10 A output current
  • 3.3 V input voltage
  • Wide-output voltage adjust (0.8 V to 2.5 V)
  • Auto-track™ sequencing*
  • Margin up/down controls
  • Pre-bias start-up capability
  • Efficiencies up to 93%
  • Output ON/OFF inhibit
  • Output voltage sense
  • Point-of-Load-Alliance (POLA) compatible
  • RoHS compliant
  • Two year warranty


出力電力 (W): 25
長さ(インチ): 0.99
幅(インチ): 0.62
高さ(インチ): 0.35
マウントタイプ: BMP; SMT &Through Hole
最小出力電流 (A): 0
最大出力電流 (A): 10
出力電圧範囲 (V): 0.8V to 2.5V
すべての仕様 仕様の崩壊


モデル番号 最小電圧 (V) 最大最大電圧 (V) 電流 (A) 公称電圧 (V) 出力数 サンプル 購入
PTH03060W 0.8 2.5 10 1.2 1 お問い合わせ 購入


タイトル タイプ
Application Note (553 KB) アプリケーションノート
PTH03060 Datasheet (384 KB) データシート
PTH03060WAZ RoHS2 CoC (95 KB) RoHS証明書
TUV-SUD Certificate (215 KB) 安全証明書
