CSZ3200FT-9
Active

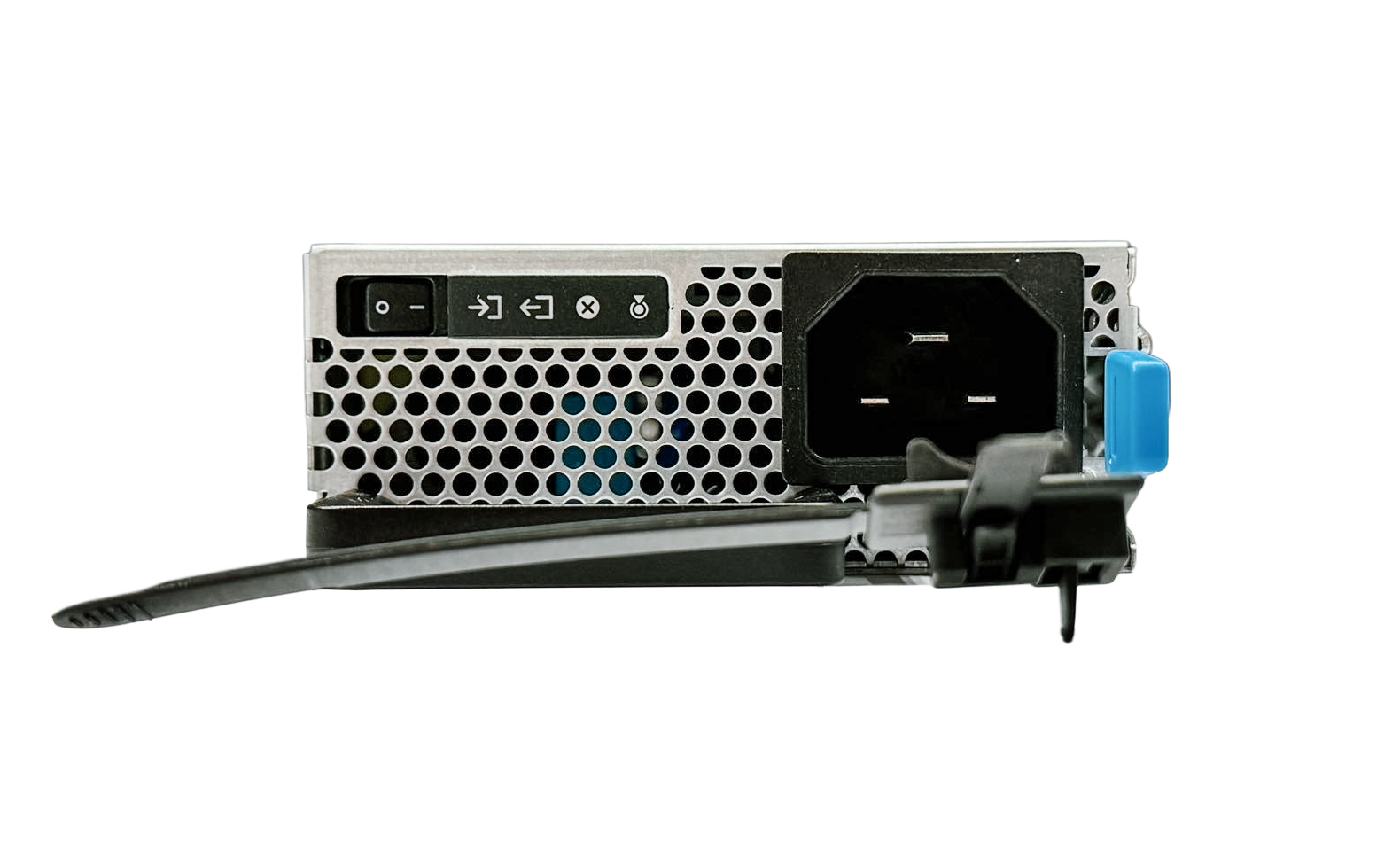

Hot Pluggable PSU, 3.2 kW

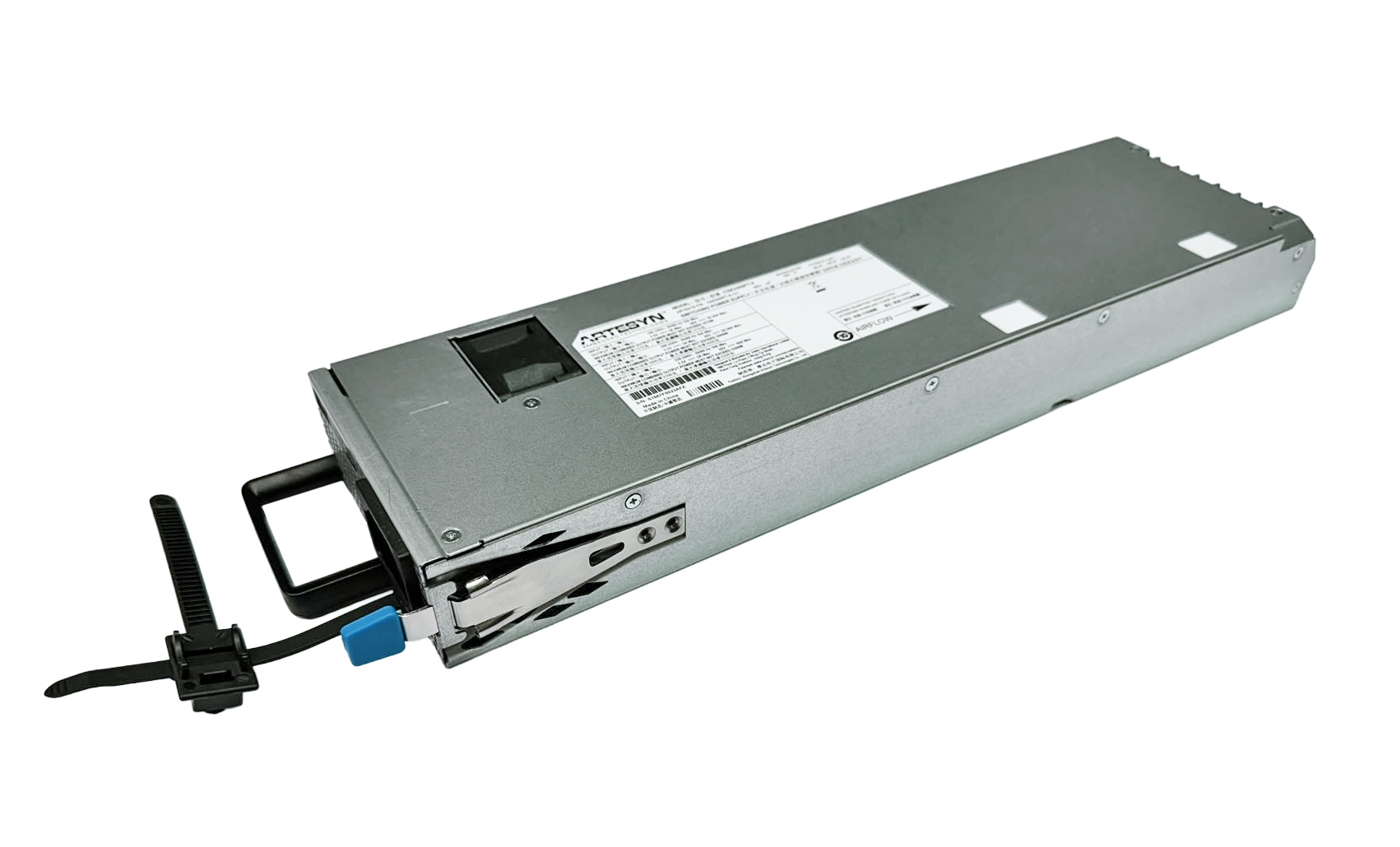

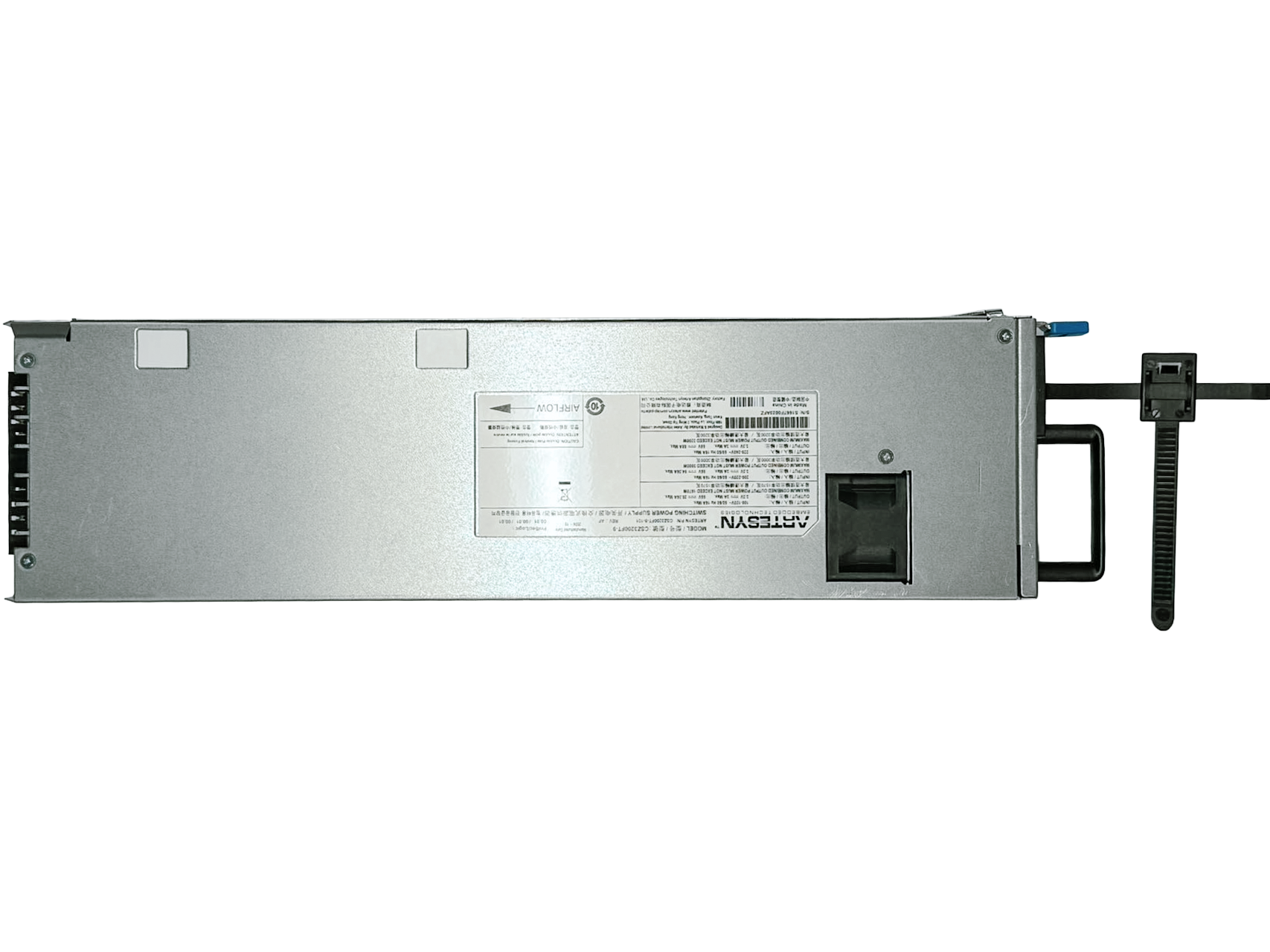

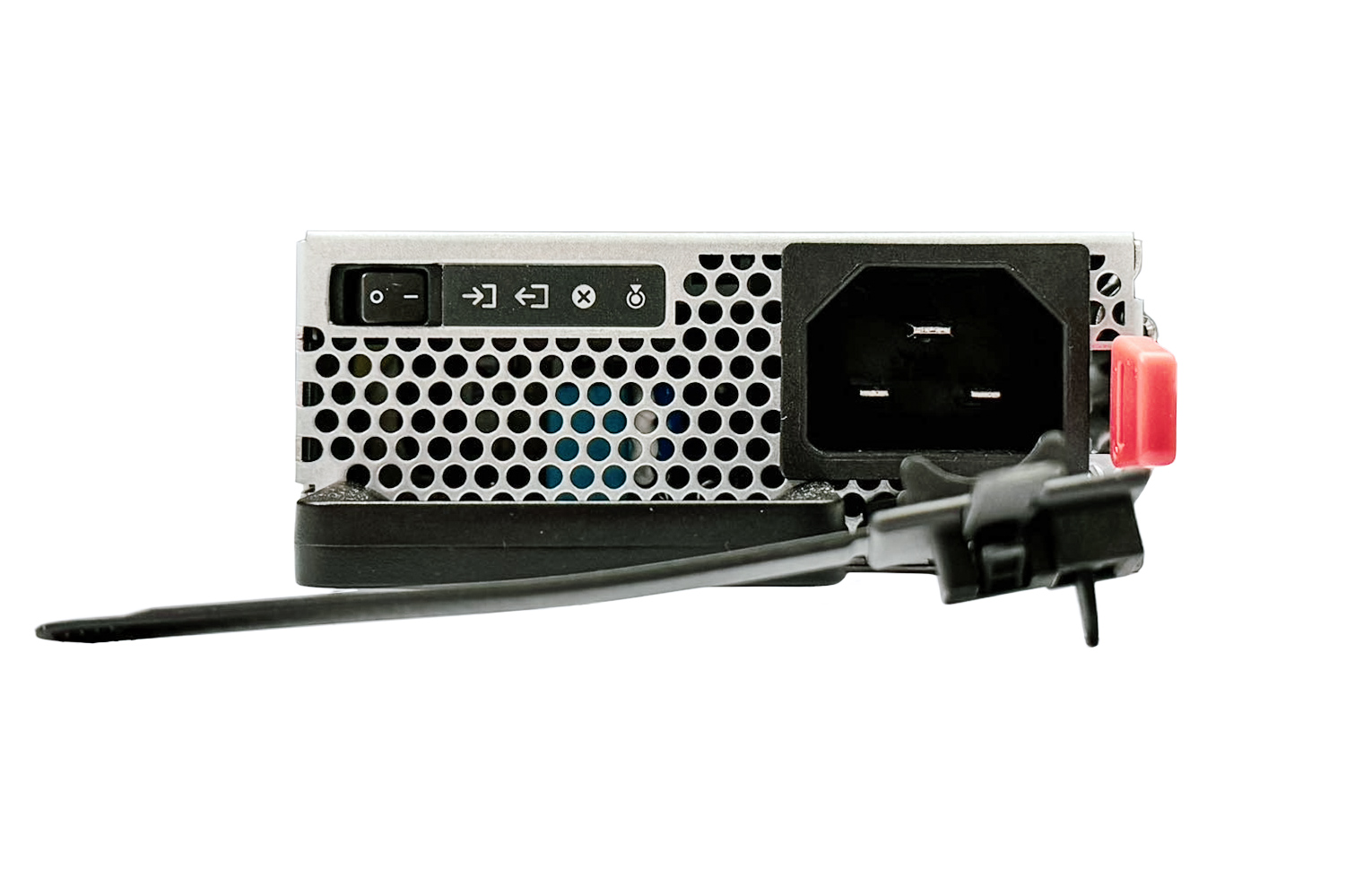

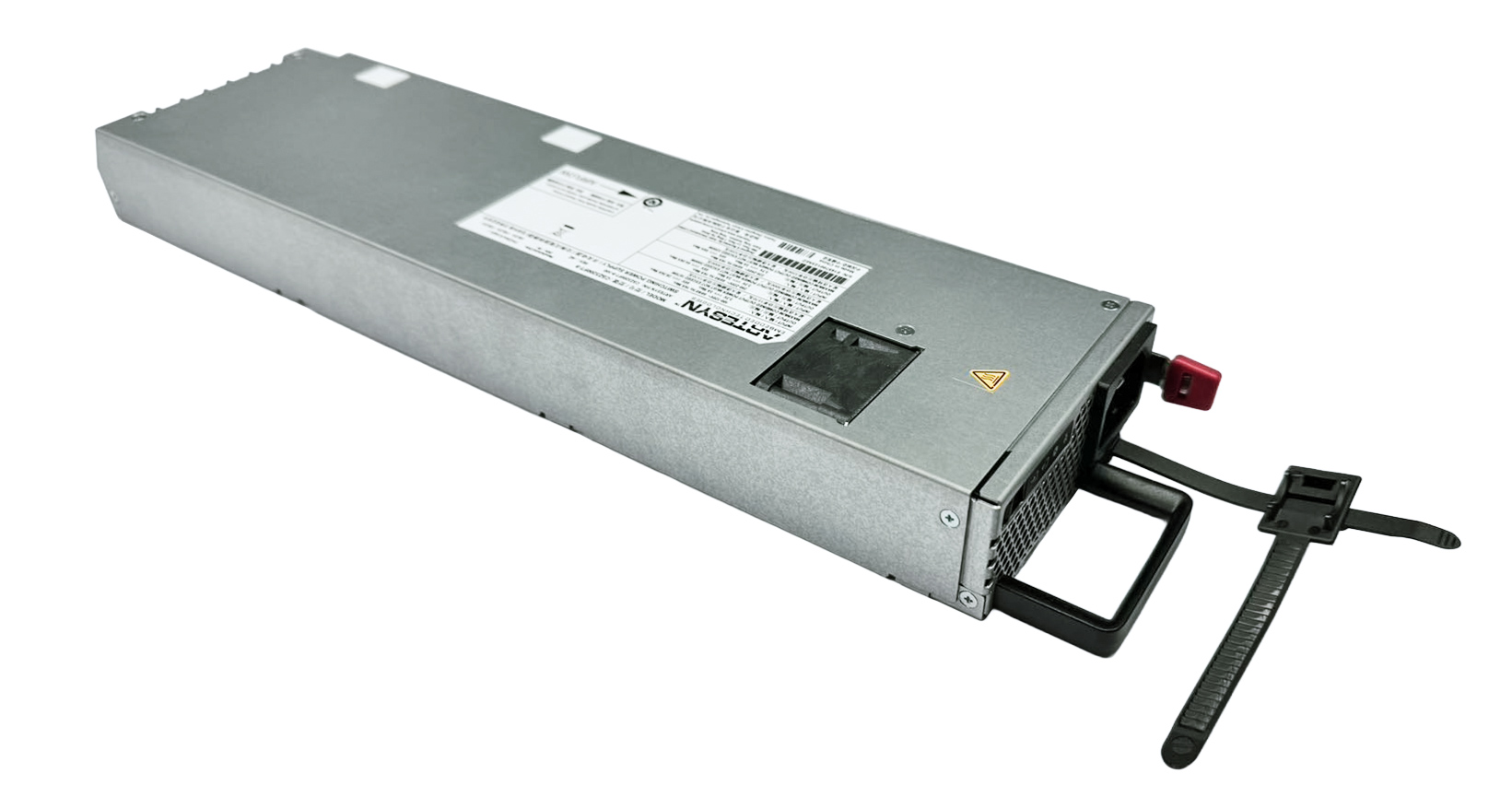

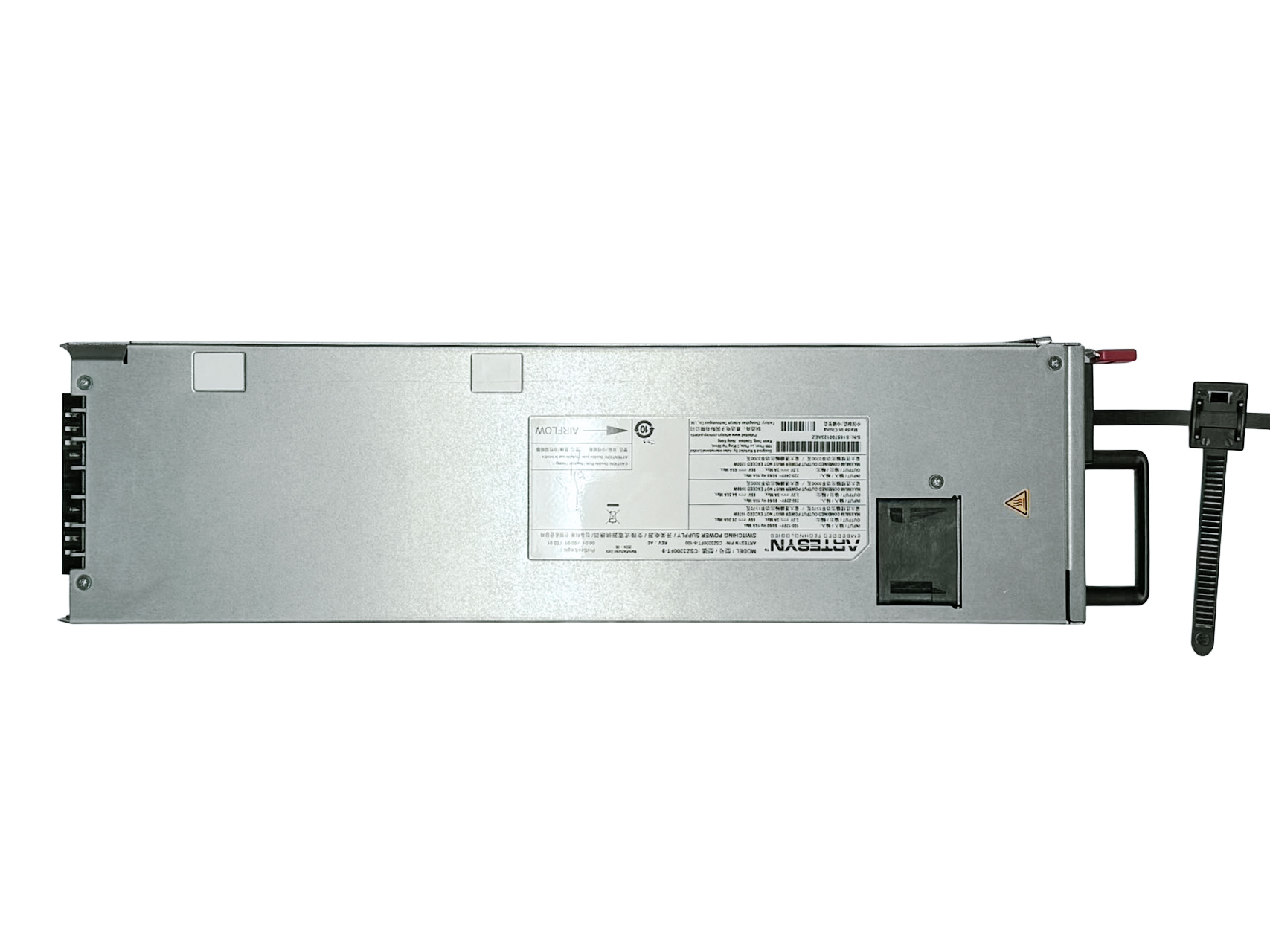

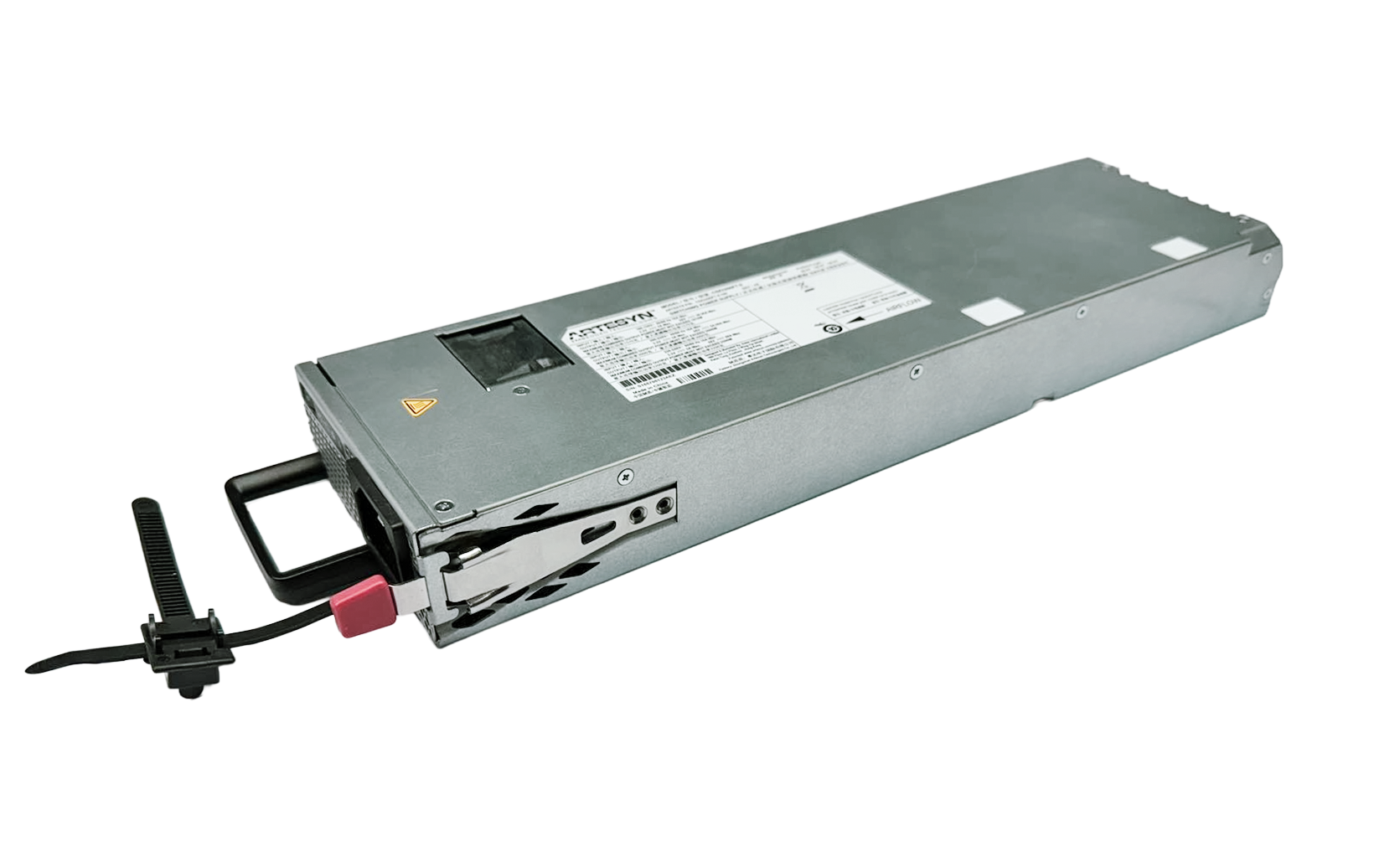

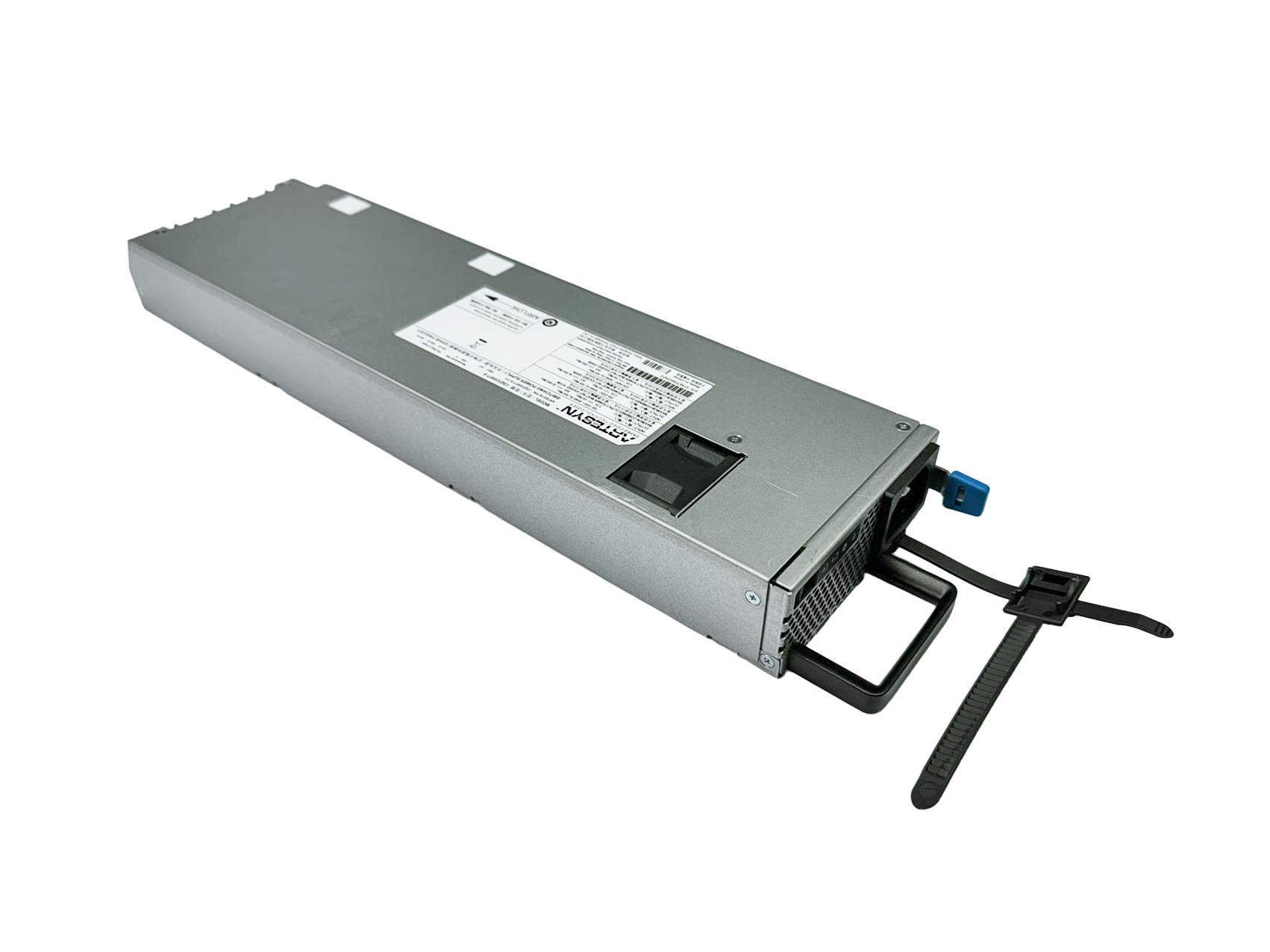

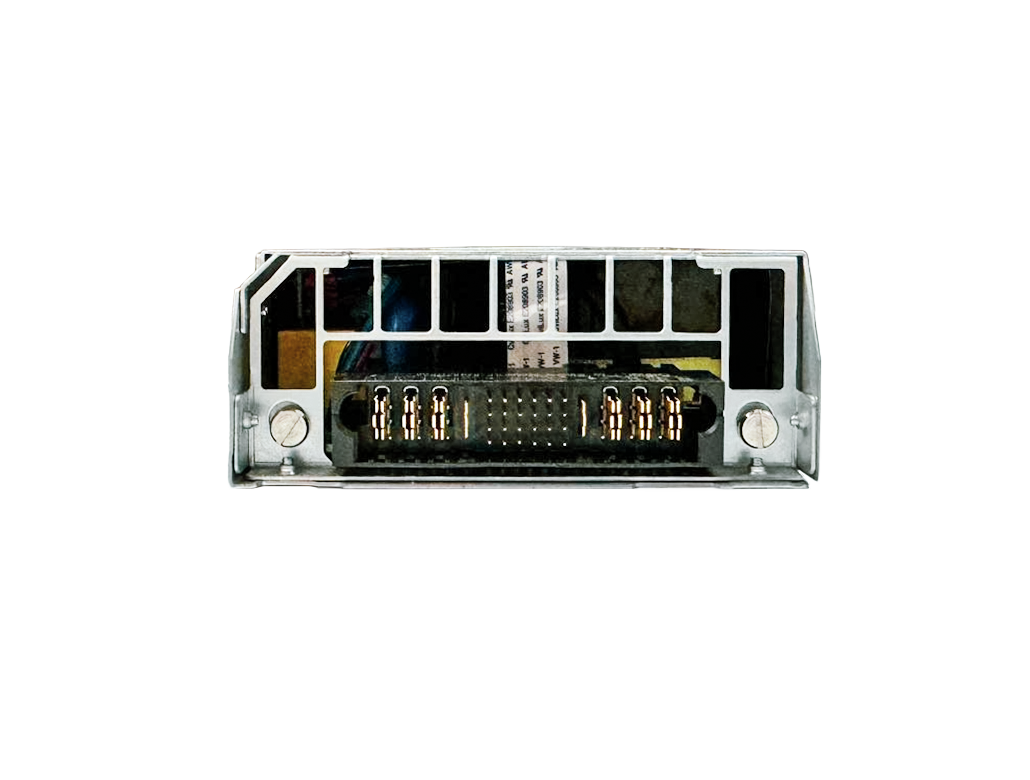

The 3.2 kW CZS3200FT-9 Titanium Efficiency certified power supply offers a peak efficiency of 96% and delivers up to 55 V and 58 A. The PSU features an input range of 90-1327 Vac and 180 to 264 Vac. The main output range is 55 VDC that can feed downstream DC-DC converters. Housed in a 1U high rack-mount enclosure measuring 1.58 x 3.95 x 14.547 inches (40.13 x 100.33 x 369.5 mm), this power supply is fit for cost-optimized applications.
The CZS3200FT-9 is digitally controlled via an integral I2C interface using
Advanced Energy’s universal PMBus® graphical user interface.
特徴
- Accepts low and high line AC
- Input frequency 47 - 63 Hz
- Titanium efficiency certified
- 20 ms hold-up time at 100% load
- Power factor >0.9 starting at 10% load
- Main output voltage 55 V at 58 A
- Standby output 3.3 V at 3.0 A
- 3200 W continuous output power
- Active load sharing for parallel or redundant mode operation without additional components
- Full digital control
- Supports PMBus®
- Field upgradable firmware
メリット
- Input voltage flexibility for worldwide deployment
- Reduces electricity bill due to high efficiency and high power factor performance
- PMBus support for monitoring, reporting, and control functions for system power management
- Field upgradable firmware feature reduces mean-time-to-repair and system downtime
仕様
| 出力電力 (W): | 3200 |
|---|---|
| 長さ（インチ）: | 14.547 |
| 幅（インチ）: | 3.95 |
| 高さ（インチ）: | 1.58 |
| マウントタイプ: | Hotpluggable |
| 最小出力電流 (A): | 0 |
| 最大出力電流 (A): | 58 |
| 出力電圧範囲 (V): | 55V |
