R1L Series

Active

4-Wire Kelvin Probes

These 4-wire probes are used with the R1L Series milli-ohmmeters and bond meters. Two different styles of 4-wire Kelvin probes are available to adapt to the physical conditions.  Both the large HTP-101A pistol grip Kelvin probes and the smaller SKP-8 hand probes are designed with static dissipating properties and are an integral part of the intrinsic safety system.  The SKP-8 Kelvin probes have a choice of replaceable tips to further accommodate the work requirements.

特点

  • 4-wire Kelvin probes and clups
  • Wire Length: multiple options
  • Pin Diameter: 0.158in
  • Pin-to-Pin Distance: 0.5in (1.27cm)
  • Intrinsically safe options available; molded with a conductive additive to prevent static electricity buildup

益处

  • 4-Wire Kelvin sensing for highest accuracy
  • Wide range of probe/tip styles and cable lengths to meet most any application requiement

规格

Connector Type: Dual Banana, Spade Lug
Intrinsically Safe: Varies by probe
Pin Tip Style: Clip, Flat, Spear

库存检查

型号
Cable Length (m) Connector Type Intrinsically Safe Pin Tip Style Receptacle/ Pin Dia. (mm) 购买
13162 Active, 联系我们
Heavy Duty Ground Stake for the R1L-C, 1 Piece
购买
13162/4 Active, 联系我们
Heavy Duty Ground Stakes for the R1L-C, Set of 4
购买
CA-191 Active, 联系我们
GPIB/IEEE-488 Cable, 3 Meters Long
购买
HKC-100 Active, 联系我们
Large Kelvin Test Lead Set
2.4 Dual Banana No Clip NA 购买
HTP-100 Active, 联系我们
3" Riser for M1125A, M1130A & M1135A
购买
HTP-101A Active, 联系我们
Kelvin Pistol Grip Probes for R1L-E2A
2.4 Spade Lug Yes Spear 3.2 购买
KAK-04 Active, 联系我们
Kelvin Alligator Set
1.2 Dual Banana No Clip NA 购买
KTL-100 Active, 联系我们
Kelvin Klip, for R1L-B, R1L-BR, R1L-D1, 7'
2.1 Dual Banana No Clip NA 购买
KTL-910 Active, 联系我们
Kelvin Klip Replacement Kit for KTL-100
NA NA No Clip NA 购买

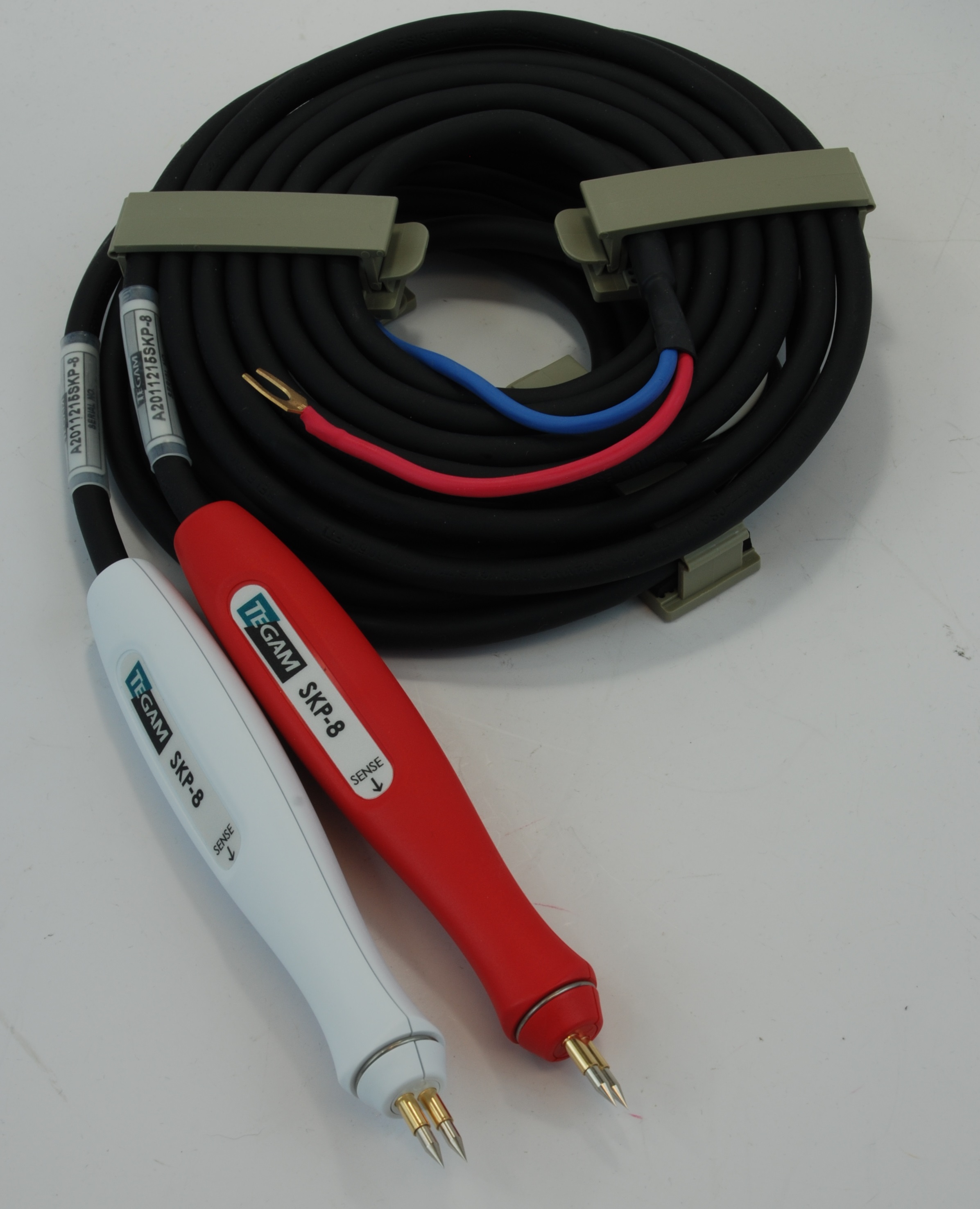

SKP-8 Active, 联系我们
Small Kelvin Probes for R1L-E2A, Spear Tips
2.4 Spade Lug Yes Spear 3.2 购买
SKP-8F Active, 联系我们
Small Kelvin Probes for R1L-E2A, Flat Tips
2.4 Spade Lug Yes Flat 3.2 购买
