tegam ®

700 Series

Active

4-Wire Probes

These 4-wire probes are used with the 700 Series handheld bond meters and milliohmmeters. Often, these 4-wire probes are more important than the instrument. No one has a wider range of configurations to meet and adapt to your needs than Advanced Energy. From tight spacing to piercing paint, we have a tip configuration to make your job easier.

特点

  • 4-wire Kelvin probes and clips available in multiple syles
  • Kelvin Clip lead option for secure ground connection
  • Unique display probe options
    • Models BKDP-M2, MKDP-M2, MCDP-M2

益处

  • 4-Wire Kelvin sensing for highest accuracy
  • Wide range or probe/tip styles and cable lengths to meet most any application requirement
  • Ergonomic tri-shape probe lead for accessing multiple points with one hand
  • Comfortable to carry and use for extended periods of time

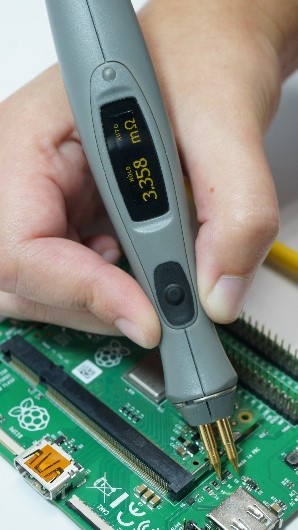

  • Unique display probe options place instrument control and reading at your fingertips and in line of sight

规格

Connector Type: Dual Banana, Lemo, M12
Intrinsically Safe: Varies by probe
Pin Tip Style: Chisel, Clip, Concave, Flat, Round, Serrated, Spear

库存检查

型号
Cable Length (m) Connector Type Intrinsically Safe Pin Tip Style Receptacle/ Pin Dia. (mm) 购买
BCP-10-A Active, 联系我们
Pin Kit, 8 Pins per Pack, 30° Pointed Tip
NA NA Yes Spear 3.2 购买
BCP-10-B Active, 联系我们
Pin Kit, 8 Pins per Pack, Plunger Flat Tip
NA NA Yes Flat 3.2 购买
BCP-10-C Active, 联系我们
Pin Kit, 8 Pins per Pack, Large Rounded Tip (.090 in)
NA NA Yes Round 3.2 购买
BCP-10-D Active, 联系我们
Pin Kit, 8 Pins per Pack, Concave Tip
NA NA Yes Concave 3.2 购买
BCP-10-F Active, 联系我们
Pin Kit, 8 Pins per Pack, 40° Chisel Tip
NA NA Yes Chisel 3.2 购买
BKDP-M2 Active, 联系我们
Big Kelvin Display Probe, 700 Series
2 NA No NA 3.2 购买
BKEP-M2 Active, 联系我们
Big Kelvin Extented Probe, 700 Series
2 M12 No NA 3.2 购买
BKP-10 Active, 联系我们
Big Kelvin Probe, Banana Connector
3 Dual Banana No NA 3.2 购买
BKP-B Active, 联系我们
Pin Kit, Spear Tip, 4 Pins per Pack
NA NA Yes Spear 3.2 购买
BKP-F Active, 联系我们
Pin Kit, Flat Tip, 4 Pins per Pack
NA NA Yes Flat 3.2 购买
BKP-H Active, 联系我们
Pin Kit, Serrated Tip, 4 Pins per Pack
NA NA Yes Serrated 3.2 购买
BKP-J Active, 联系我们
Pin Kit, Rounded Tip, 4 Pins per Pack
NA NA Yes Round 3.2 购买
BKP-M2 Active, 联系我们
Big Kelvin Probe, 700 Series
2 M12 No NA 3.2 购买
BKP-M2S Active, 联系我们
Big Kelvin Probe, 700 Series, Intrinsically Safe
2 M12 Yes NA 3.2 购买
KC-M2 Active, 联系我们
Kelvin Klip, 700 Series, 2m
2 M12 No Clip NA 购买
KC-M2S Active, 联系我们
Kelvin Klip, 700 Series, 2m, Intrinsically Safe
2 M12 Yes Clip NA 购买
KC-M5 Active, 联系我们
Kelvin Klip, 700 Series, 5m
5 M12 No Clip NA 购买
KC-M5S Active, 联系我们
Kelvin Klip, 700 Series, 5m, Intrinsically Safe
5 M12 Yes Clip NA 购买
MCDP-M2 Active, 联系我们
Miniature Coaxial Kelvin Display Probe, 700 Series
2 M12 No NA 1.6 购买
MCP-6 Active, 联系我们
Miniature Coaxial Probe, Banana Connector
1.8 Dual Banana No NA 1.6 购买
MCP-A Active, 联系我们
Replacement Pins for the MCP Series Probe
NA NA No NA 1.6 购买
MCP-M2 Active, 联系我们
Miniature Coaxial Probe, with M12 Connector, 700 Series
2 M12 No NA 1.6 购买
MCP-M2S Active, 联系我们
Miniature Coaxial Probe, with M12 Connector, 700 Series, Intrinsically Safe
2 M12 Yes NA 1.6 购买
MKDP-M2 Active, 联系我们
Miniature Kelvin Display Probe, 700 Series
2 M12 No NA 1.6 购买
MKP-6 Active, 联系我们
Miniature Kelvin Probe, Banana Connector
1.8 Dual Banana No NA 1.6 购买
MKP-B Active, 联系我们
Spear Tip Pin Kit, 4 Per Pack
NA NA Yes Spear 1.6 购买
MKP-F Active, 联系我们
Flat Tip Pin Kit, 4 Per Pack
NA NA Yes Flat 1.6 购买
MKP-H Active, 联系我们
Serrated Tip Pin Kit, 4 Per Pack
NA NA Yes Round 1.6 购买
MKP-J Active, 联系我们
Round Tip Pin Kit, 4 Per Pack
NA NA Yes Serrated 1.6 购买
MKP-LM Active, 联系我们
Serrated Rotating Tip Pin Kit, 4 Per Pack
NA NA No Serrated 1.6 购买
MKP-M2 Active, 联系我们
Miniature Coaxial Probe, 700 Series
2 M12 No NA 1.6 购买
MKP-M2S Active, 联系我们
Miniature Coaxial Probe, 700 Series, Intrinsically Safe
2 M12 Yes NA 1.6 购买
