US Series
Active
Precise, Micro-Size High Voltage Power Supplies
Advanced Energy's UltraVolt US series of regulated DC-to-DC supplies delivers high voltage power in four micro-size modules and is designed for applications with limiting portability, weight, and space requirements. The modules deliver maximum high voltage power of 200 to 500 VDC and 0.1 W (100 mW) of power from 5 or 12 VDC inputs. Single-output positive or negative polarities are available and overcurrent, short-circuit, and arc protection are standard. Effectively use an analog interface to control and monitor voltage output and benefit from low ripple and low noise.
特点

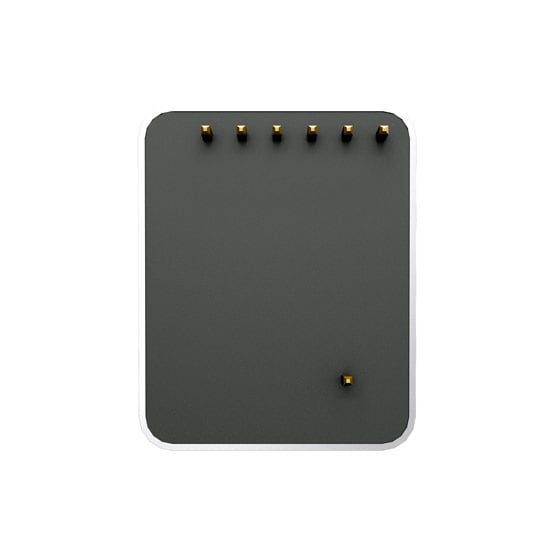

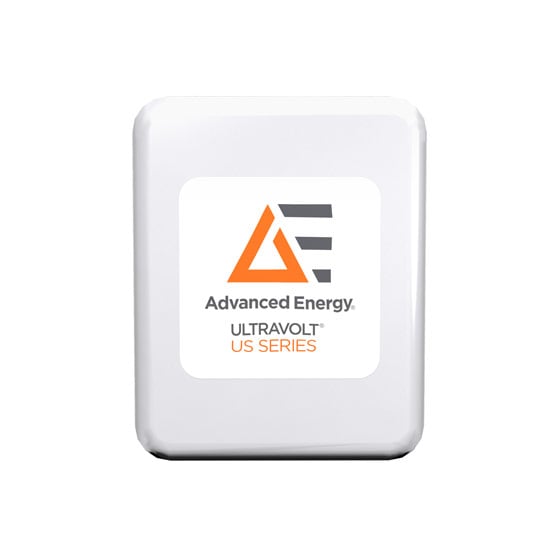

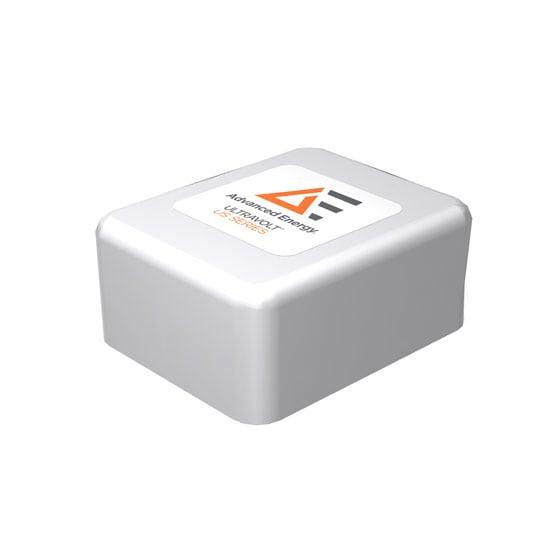

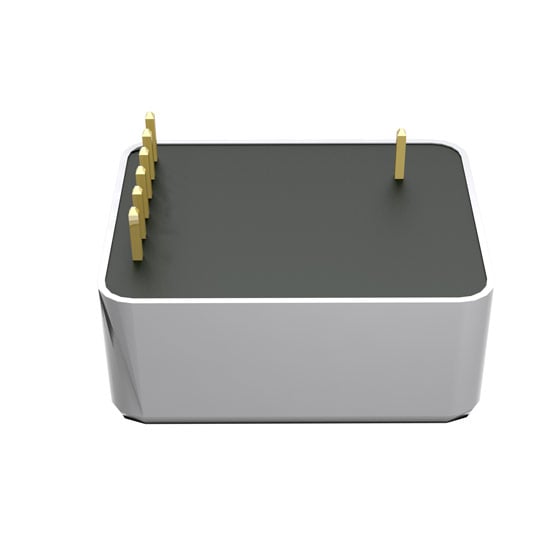

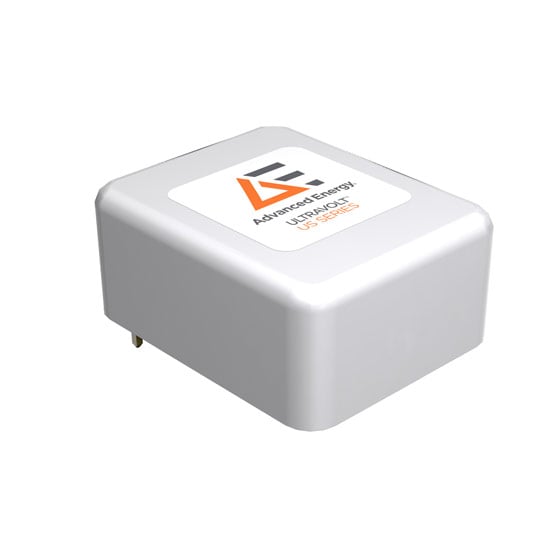

- Small, lightweight, PCB-mountable package (5.8 cm3, 13 g)
- Low output ripple, temperature coefficient, and line regulation (Analog interface with output voltage control and monitoring)
- Integrated overcurrent and short circuit/arc protection
- Tin-plated metal enclosure
益处
- Achieve product design requirements for size and weight
- Stabilize regulation across changing ambient temperatures and input supply voltages
- Simplify control using board-level 0 to 2.5 VDC signals
- Increase power subsystem robustness and reliability
- Protect against external RF and EMI noise
技术文档
相关应用
探索所有应用
Analytical Instruments
Advanced Energy's power solutions are designed to meet the specific power requirements of various analytical instruments such as spectroscopy, mass spectrometry, chromatography, electrophoresis, particle size analyzers, and scanning electron microscopes.
Explore Analytical Instruments
