SL Power™

Linear - DCC Series

Active

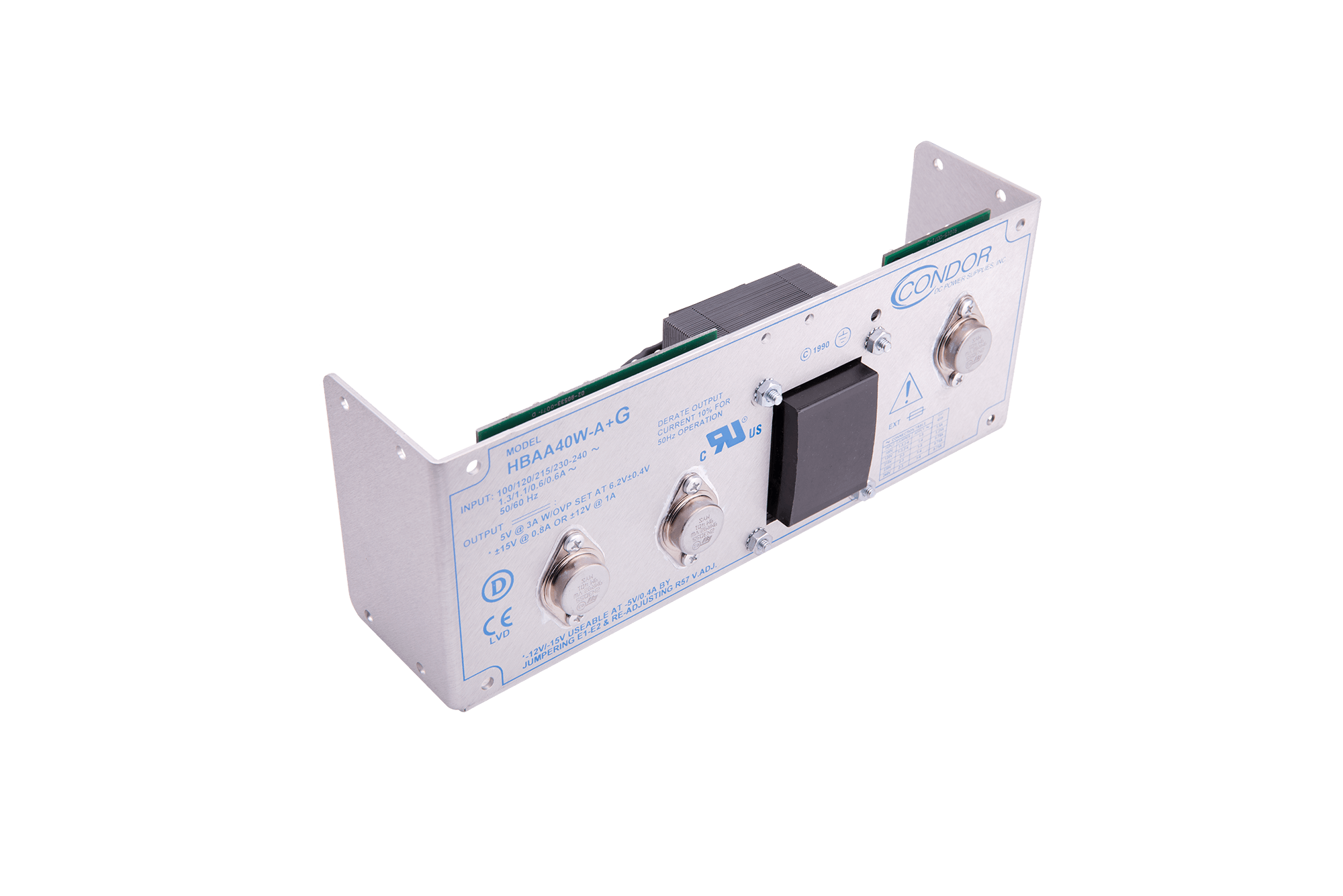

Low Noise Linear Technology Power Supply

Advanced Energy’s SL Power linear series power supplies are triple output models. The models feature commercial or medical safety approvals and accept a universal input of 100 to 240 VAC. These linear power supplies feature very little output ripple with 3 mV, and low regulation with 0.05% of the output voltages. The power supplies have optional overvoltage protection and short-circuit protection on all models.

特点

  • MTBF 200,000+ hours per MIL-HDBK-217D (most units)
  • All electarolytic caps rated at 105°C

益处

  • World-wide ac input ranges and safety standards
  • Industry standard packages
  • Approved to EN/CSA/IEC/UL62368-1
  • Burn-in with cycling; 3-year warranty
  • Capacitors have highest CV & ripple current ratings
  • Transformer insulation meets Class F (155°C)
  • Exceed FCC and CISPR22, Class B conducted emissions
  • RoHS Compliant models available (G suffix)

规格

输出功率(瓦): 150
长度(英寸): 15
宽度(英寸): 4.88
高度(英寸): 3.75
安装类型: Embedded PSU
最小输出电流 (A): 3
最大输出电流 (A): 3.4
输出电压范围 (V): 12V to 15V
所有规格 折叠规格

库存检查

型号
最小值电压 (V) 最大电压电压 (V) 电流 (A) 标称电压 (V) 输出数量 样品 购买
HDCC150W-A+G 活动,有库存
5V @ 12A, -15 to 15V @ 3.4/3A
5 15 12 5, 15, -15 3 要求 购买

技术文档
