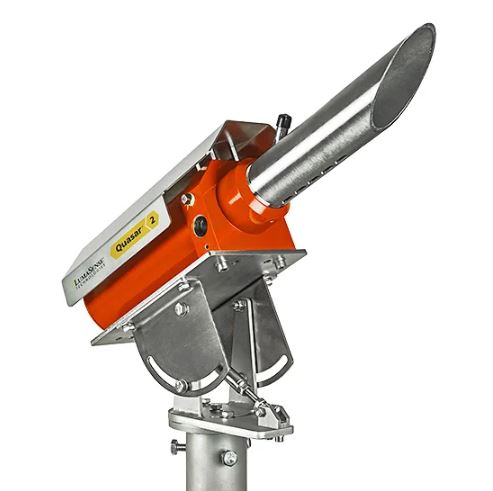

E²TQuasar 2 Flare Stack Flame and Pilot Monitor
Active
Continuous Duty Flare Stack Flame and Pilot Monitoring Instrument
The Quasar 2 infrared instruments provides continuous monitoring and detection of pilot flame and flare gases from flares for refineries, gas plants, and other petrochemical applications independet of gas composition, up to a disctance of 400 m. The instruments can be used with elevated flares, ground flares, as well as off-shore and staged flares.
Models are available with such features as automatic compensation for signal variation due to target movement, varying luminosiity, and weather conditions, such as rain, snow, and fog, vernier sighting capabilities for easy target acquisition at long sighting distances, and heavy-duty mounting systems designed to resist movement in high winds. The integrated alarm delay circuit can be adjusted for a specific location or application, eleminating false alarm from tempoary loss of signal due to intermittent flames, adverse weather and wind.
Models are available with such features as automatic compensation for signal variation due to target movement, varying luminosiity, and weather conditions, such as rain, snow, and fog, vernier sighting capabilities for easy target acquisition at long sighting distances, and heavy-duty mounting systems designed to resist movement in high winds. The integrated alarm delay circuit can be adjusted for a specific location or application, eleminating false alarm from tempoary loss of signal due to intermittent flames, adverse weather and wind.
特徴
- Configurable product to meet a wide range of client flare types and monitoring requirements
- Five optics options to ensure the highest flame signal detection
- Status lights: green (flame) and red (no flame)
- SIL 1 rated
- EXd IIB Enclosure
- Stainless Steel housing
メリット
- Install a reliable and accurate pilot and flare monitoring system without service interruption
- Detection of hydrocarbon and hydrogen flames
- Use the high-resolution optical system and various spot sizes to position the system up to 1/4 mile (400 m) away from the monitored flare stack
- Modular opto-electronic package for easy access and service
- Nearly maintenance free
仕様
| FOV（最小スポットサイズ）（mm）: | 37.5:1, 60:1, 75:1, 150:1, 300:1 |
|---|---|
| アライメント／照準: | Targeting port for target alignment |
| インターフェース/出力（mA）: |
switched 4/20mA
4 to 20mA (Advance Model only) Mechanical Relay (Advance Model only) |
| 露光時間 t90 (ms): | 10ms |
| 周囲温度 (°C): | -40 to 60 |
| フォーカス範囲（mm/mtr）: | 0 to 400 |
| 元レーティング: |
IECEx Ex db IIB T4
ATEX II 2 G Ex db IIB T4 Class I, Div 1, Groups C and D Class I, Div 2, Groups A, B, C and D |
| 保護等級: |
IP66
NEMA 4x |
技術文書
Product Information Documents
テクニカル・ビデオ

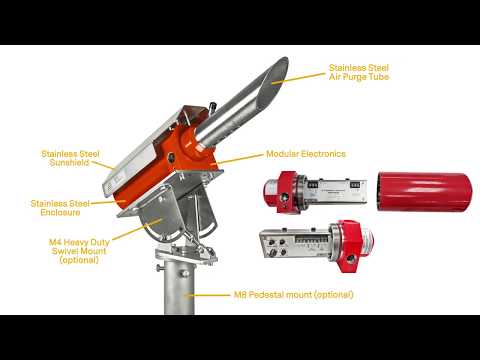

Flare Stack Monitoring with Quasar 2 and FlareSpection
9月 4, 2019
Continuous monitoring of pilot flames and flared gases is essential for flaring systems. When thermocouples aren't enough, learn how the Quasar 2 and the FlareSpection systems can provide reliable non-contact infrared detection for flare stack monitoring.
Quasar 2 is a pyrometry-based system for detecting pilot flames and individual heat signatures.
FlareSpection is a thermal imaging-based system for detecting differences in multiple heat signatures and distinguishing between the flare and pilot flames.
