NCF425 Series
Active

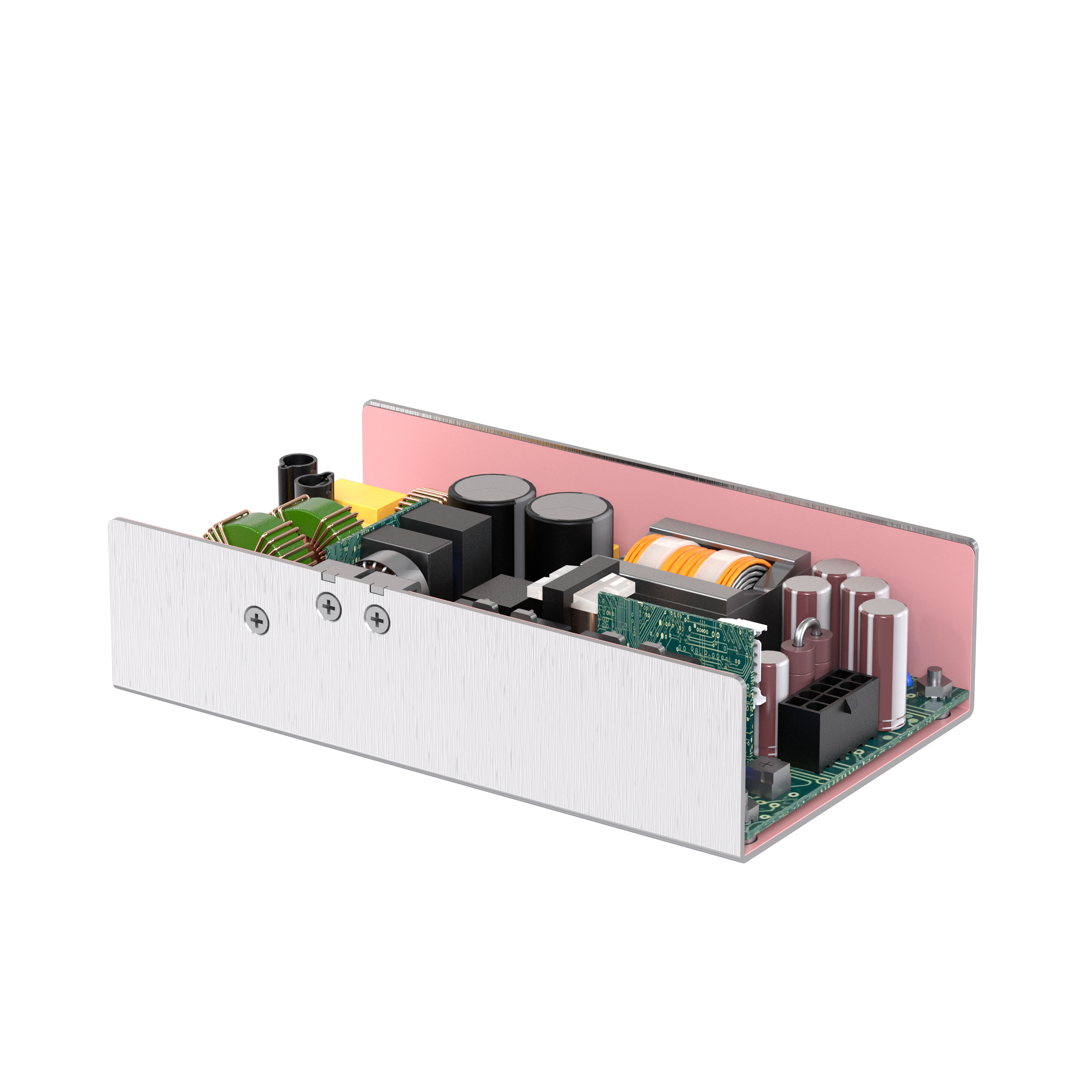

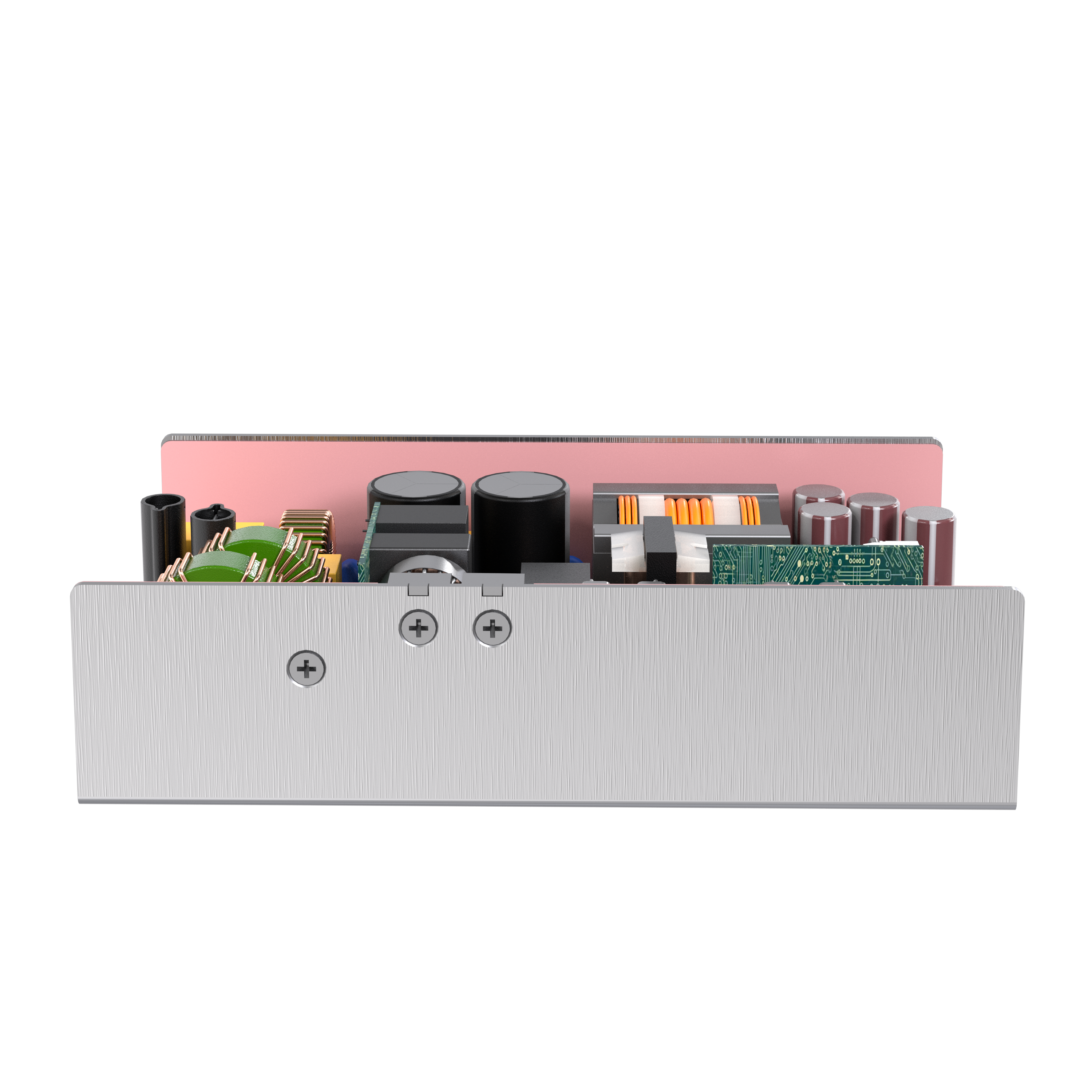

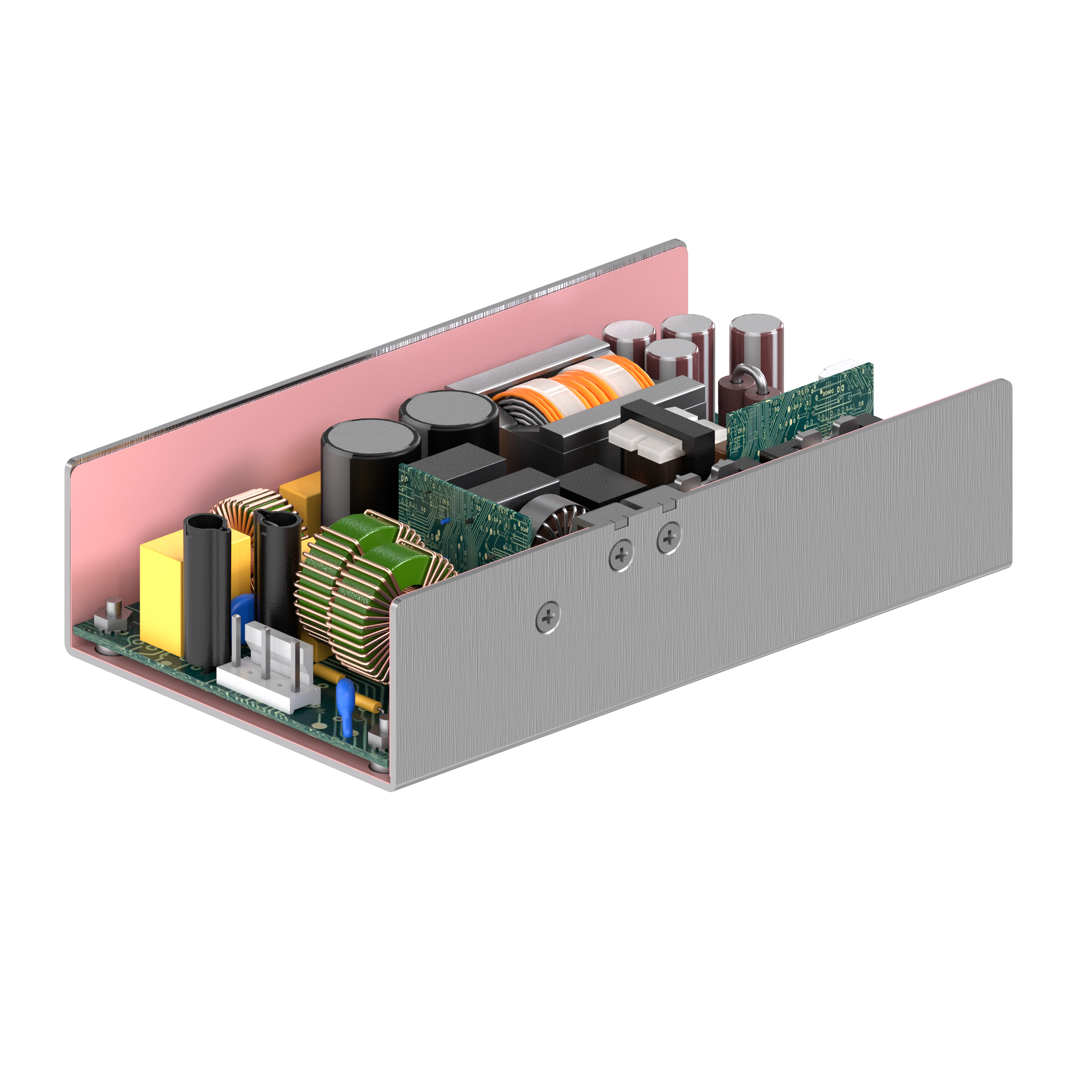

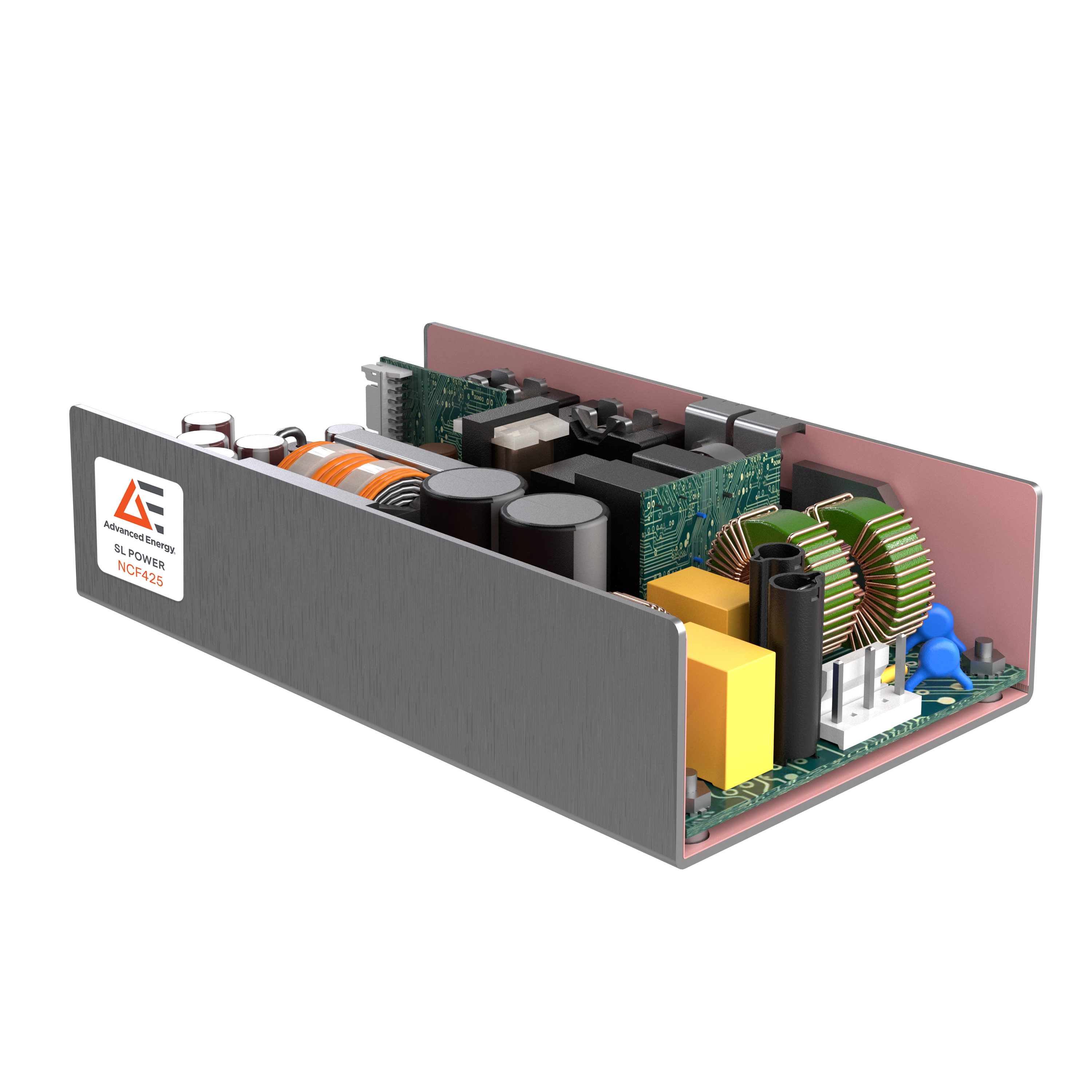

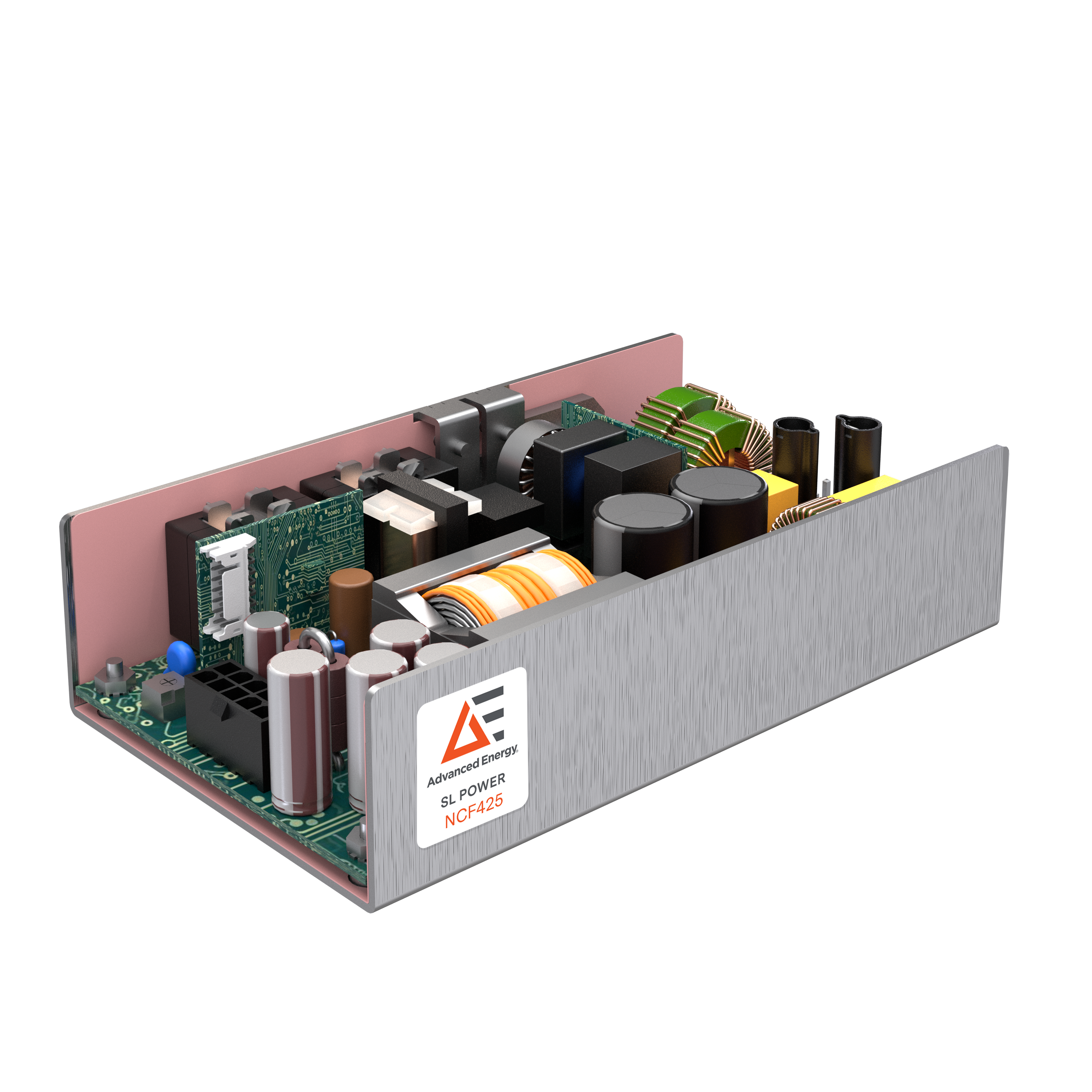

425 W CF Rated Medical Power Supply
Advanced Energy's SL Power NCF425 series are medically approved AC-DC power supplies with CF rating for critical medical applications requiring low leakage current.. They are available with a nominal main output of 12 V, 15 V, 24 V, or 48 V and also offer a 5 kV defibrillator withstand. NCF425 series power supplies provide up to 425 W of output power with air flow and a universal input voltage of 85 to 264 VAC. All models have output overvoltage, short circuit and overload protection and a 2.4 x 5.0 x 1.6 inch form factor.
特徴
• CF Rated with Less than 10 μA Leakage Current
• 5 kV Defibrillator Withstand
• Up to 425 W with Airflow
• Up to 270 W Convection Cooled
• 2.4”W x 5.0”L x 1.6”H Form Factor
• Universal Input 85 to 264 VAC
• 5 kV Defibrillator Withstand
• Up to 425 W with Airflow
• Up to 270 W Convection Cooled
• 2.4”W x 5.0”L x 1.6”H Form Factor
• Universal Input 85 to 264 VAC
メリット
• Meets Class B Emissions Levels
• 7+ Years Electrolytic Capacitor Life
• Meets IEC60601-1-2 4th Edition EMC
• Class I Input
• RoHS Compliant
• REACH Compliant
• 3 Year Warranty
• 7+ Years Electrolytic Capacitor Life
• Meets IEC60601-1-2 4th Edition EMC
• Class I Input
• RoHS Compliant
• REACH Compliant
• 3 Year Warranty
仕様
| 出力電力 (W): | 425 |
|---|---|
| 長さ（インチ）: | 6 |
| 幅（インチ）: | 3.5 |
| 高さ（インチ）: | 1.5 |
| マウントタイプ: | U chassis |
| 最小出力電流 (A): | 5.63 |
| 最大出力電流 (A): | 30 |
| 出力電圧範囲 (V): | 12V to 48V |
