Advanced energy’s global footprint helps ease customers’ tariff concerns. This series includes parts that are USMCA qualified.
SL Power™
GB130Q Series
Active
130 W Quad Output Medical and Industrial Grade

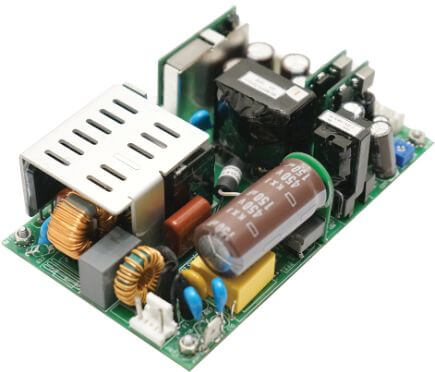

Advanced Energy’s SL Power GB130Q series of open-frame AC-DC power supplies comprises five quad outputs models. All models feature medical safety approvals and accept a universal input of 90 to 264 VAC. These compact switch-mode power supplies feature output overvoltage, overload protection, with short-circuit protection on all outputs. GB130Q series power supplies provide 100 W of output power with free air convection cooling and 130 W with 200 LFM of forced air.
特徴
- 3” x 5” x 1.5” Package
- 130 W w/air, 100 W Convection Cooled
- Universal Input 90 to 264 VAC
- Efficiency 87% Typical
- 5 V @ 1 A Standby Output
メリット
- Approved to EN/IEC/UL62368-1
- Approved to CSA/EN/IEC/UL60601-1, 3rd Edition
- Meets Class B Radiated & Conducted EMI
- Remote Inhibit
- >7 Year E-cap Life
- 3 Year Warranty
- RoHS Compliant
- Covered Versions Available
仕様
| 出力電力 (W): | 130 |
|---|---|
| 長さ（インチ）: | 5 |
| 幅（インチ）: | 3 |
| 高さ（インチ）: | 1.44 |
| マウントタイプ: | Embedded PSU |
| 最小出力電流 (A): | 1 |
| 最大出力電流 (A): | 12 |
| 出力電圧範囲 (V): | 5V to 24V |
