Ultimod UX6
Active
Up to 1200 W Configurable AC-DC Power Supplies
must be used with powerMods )

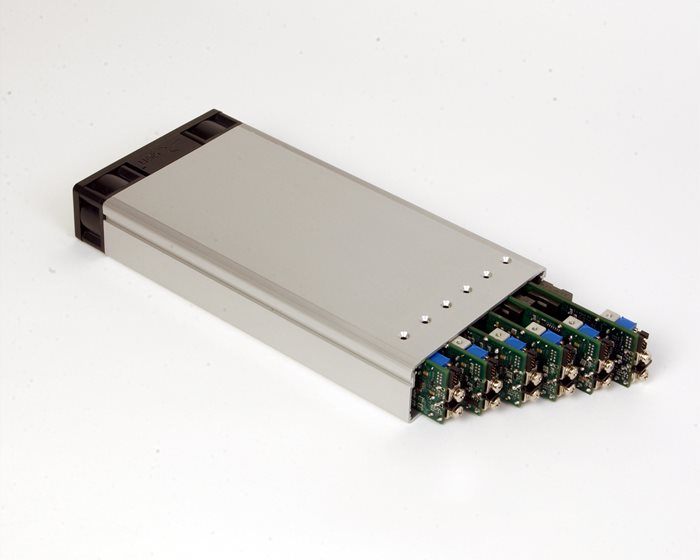

The Excelsys UX6, 6-slot series delivers up to 1200 W from a compact 260 mm x 127 mm x 40.4 mm package. It can be populated with up to six powerMods, providing up to twelve isolated DC outputs that range from 1.15 to 58 V. Outputs can be parallel connected for higher currents and series connected for higher voltages up to 348 VDC.
The UX6 complies with the IEC60950 (second edition) for industrial applications, IEC 60601-1 (3rd Edition) and IEC60601-1-2 (4th Edition, EMC) medical certifications and is SEMI F47 compliant. Product options include conformal coating, low leakage current (<150 uA), IEC or cable input connector, mounting options, reverse fans and additional ruggedization.
The Excelsys UX6, 6-slot series delivers up to 1200 W from a compact 260 mm x 127 mm x 40.4 mm package. It can be populated with up to six powerMods, providing up to twelve isolated DC outputs that range from 1.15 to 58 V. Outputs can be parallel connected for higher currents and series connected for higher voltages up to 348 VDC.
The UX6 complies with the IEC60950 (second edition) for industrial applications, IEC 60601-1 (3rd Edition) and IEC60601-1-2 (4th Edition, EMC) medical certifications and is SEMI F47 compliant. Product options include conformal coating, low leakage current (<150 uA), IEC or cable input connector, mounting options, reverse fans and additional ruggedization.
特徴
- >91% efficiency
- Lowest acoustic noise
- MTBF figures of > 670,000
- Optional ruggedization to MIL-STD-810G vibration
- Five-year warranty
メリット
- Higher power density consumes less physical space
- Fast deployment with user- and field-configurability
- Confidence in reliability from the #1 configurable power supply manufacturer
仕様
| 長さ（インチ）: | 10.23 |
|---|---|
| 幅（インチ）: | 5 |
| 高さ（インチ）: | 1.59 |
| 出力電圧範囲 (V): | 1.15 to 348 |
| 最大出力（W）: | 1200 |
| Minimum Input Voltage (V): | 85 |
| 最大入力電圧 (V): | 264 |
.jpg?resizemode=force&maxsidesize=408)
.jpg?resizemode=force&maxsidesize=408)
.jpg?resizemode=force&maxsidesize=408)
比較する
| Model | Ultimod UX6 | uMP10 Gen II | Coolx1000 | uMP09 Gen II |
|---|---|---|---|---|
| 長さ（インチ） | 10.23 | 10.11 | 10 | 10.11 |
| 幅（インチ） | 5 | 5 | 6.5 | 3.5 |
| 高さ（インチ） | 1.59 | 1.57 | 1.54 | 1.57 |
| 出力電圧範囲 (V) | 1.15 to 348 | 0.9 to 500 | 1 to 615 | 0.9 to 240 |
| 最大出力（W） | 1200 | 1200 | 1000 | 1000 |
| Minimum Input Voltage (V) | 85 | 85 | 85 | 90 |
| 最大入力電圧 (V) | 264 | 264 | 264 | 264 |
