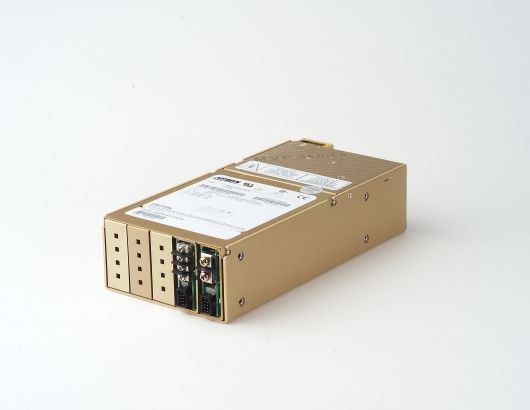

iMP4

Active

750 to 1158 W Configurable AC-DC Power Supplies

The iMP4 series AC-DC configurable power supplies comprise a microprocessor-controlled PFC front end providing five slots that accept intelligent DC-DC converter modules. It is capable of delivering 750 to 1100 W in a 254 mm x 127 mm x 63.5 mm package, with up to 15 isolated outputs using single, dual or triple output modules ranging from 1.8  to 66 V. Single output modules come in four power ranges that can be mixed and matched and connected in parallel or series. ​

​User-configurable functions include current, input/output OK signals and indicators. These digitally controlled power supplies feature a PMBus®-compliant I2C serial interface that enables parameters such as the voltage, current limit and enable/inhibit status of individual outputs to be programmed via an intuitive downloadable user GUI. The serial interface also allows remote monitoring of voltage, current and temperature. The iMP4 series carries full industrial EN/UL60950, medical EN60601-1safety approvals, is SEMI F47 compliant (with extended hold-up module) and offers optional reverse fan, conformal coating and RS485, CANBus and MODBUS communications.

特徴

  • 85% efficiency ​
  • Field replaceable intelligent fan (speed control/fault status)​
  • Output margining, sequencing and remote sense ​
  • Industrial Shock/Vibration (>50G’s)​
  • MTBF >550,000 hours​
  • Two-year warranty

メリット

  • Intelligent I2C control communications for easy configuration​
  • Fast deployment​
  • Thousands of output combinations customized to any application.​
  • Confidence in reliability from the #1 configurable power supply manufacturer

仕様

長さ(インチ): 10
幅(インチ): 5
高さ(インチ): 2.5
出力電圧範囲 (V): 1.8 to 300
最大出力(W): 1100
Minimum Input Voltage (V): 85
最大入力電圧 (V): 264

Accessories Stock Check

70-841-004
アクティブ, 在庫あり
iMP Control Mating Connector
70-841-023
アクティブ, 在庫あり
iMP I2C Connector Mating Kit
73-544-002
アクティブ, 在庫あり
iMP RS485/CANBUS
73-555-0000
アクティブ, 在庫あり
iMP Blank Panel
iMP/iVS High Voltage Module 350V @ 250ma 1-slot
HUP Hold-Up Module (1 Slot) (85566602640)

コンフィグプロのご紹介

アドバンスド・エナジーの画期的なオンライン・パワー・コンフィギュレーター

300万を超える構成可能な電源の組み合わせにより、この電源ソリューションアルゴリズムはコストを最適化し、MP、IMP、IVS、およびMICROMP(UMP)構成可能電源ファミリーの理想的なソリューションを導きます。
スタート

技術文書

比較する

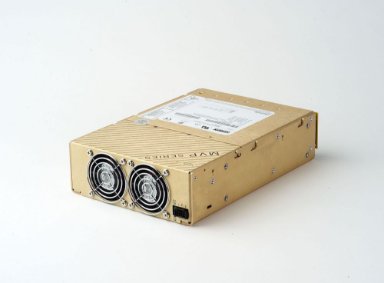

Model iMP4 uMP10 Gen II iMP8 Ultimod UX6 Coolx1000
長さ(インチ) 10 10.11 10 10.23 10
幅(インチ) 5 5 7 5 6.5
高さ(インチ) 2.5 1.57 2.5 1.59 1.54
出力電圧範囲 (V) 1.8 to 300 0.9 to 500 1.8 to 420 1.15 to 348 1 to 615
最大出力(W) 1100 1200 1200 1200 1000
Minimum Input Voltage (V) 85 85 85 85 85
最大入力電圧 (V) 264 264 264 264 264
