Precision RF Power Meters - Thermistors

Active

Thermistor-Based RF Power Meter

Thermistor-based RF power sensors are recognized as the most accurate way to measure and transfer RF power. Advanced Energy's thermistor power meters were designed to reduce uncertainties and accommodate a broader variety of RF power sensors. We leveraged our experience building Type IV bridges to develop superior DC substitution power meters with advanced analog and digital electronics that provide the lowest possible uncertainties in a portable instrument.

特点

  • Exceptional Accuracy
  • Thermistor based meters
  • Support 100 Ω and 200 Ω thermistors including AE-TEGAM and Weinschel
  • Integrates bridge balancer and heater control for ovenized sensors
  • Made in USA

益处

  • Exceptional accruacy to minimize power meters contribution to uncertainty
  • Replaces other DC substituion thermistor power meters

规格

Basic Accuracy: ±(0.05% of reading, ±0.5 µW)
Frequency Range: 6 kHz to 50+ GHz (sensor Dependent)
Power Range: -30 to +14 dBm (0.001 mW to 30 mW)
Sensor Type: Thermistor-NTC

库存检查

型号
Basic Accuracy Frequency Range Power Range Power Requirements Sensor Resistance Sensor Type 购买

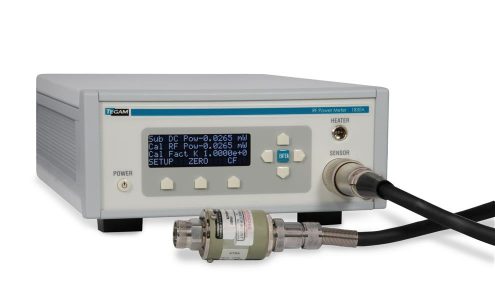

1830A Active, 联系我们
RF Thermistor Power Meter
±(0.05% of reading, ±0.5 µW) 6 kHz to 50+ GHz (sensor Dependent) -30 to +14 dBm (0.001 mW to 30 mW) 100 to 240 Vac, 48 to 62 Hz, 75 VA max 100 Ω, 200 Ω Thermistor-NTC 购买

Accessories Stock Check

Cable, 1830A to F/M Mounts, 15"
Cable, 1830A to F/M Mounts, 48"
Cable, 1830A and 1806A to Large Heater, 48"

Heater cable (4-pin mini to 4-pin large)
For use with the following combinations:
• 1806A connected to M1130A and M1135A
• 1830A connected to M1130A and M1135A

Cable, 1830A and 1806A to Small Heater, 15"
Cable, 1830A and 1806A to Small Heater, 48"
Cable, Voltage Bias and Heater, 1830A to 15XX/25XX, 48"

Heater cable (4-pin mini to 4-pin mini)
For use with the following combinations:
• 1806A connected to F1130A/B and F1135A/B
• 1830A connected to F1130A/B and F1135A/B

Cable, Voltage Bias and Heater, 1830A to 15XX/25XX, 15"

Heater cable (4-pin mini to 4-pin mini)
For use with the following combinations:
• 1806A connected to F1130A/B and F1135A/B
• 1830A connected to F1130A/B and F1135A/B

Calibration Cable for the 1830A with Spade Lugs, 48"
Cable, Sensor, 1830A to 8478B and 478A Sensor, 48"
Cable, USB A/A 2M
Single Unit Rack Mount Kit, 1830A, F113XB & 25XXA Series
Dual Unit Rack Mount Kit, 1830A, F113XB & 25XXA Series
Cable, 1830A to Unterminated Ends, 48"

Power Sensor Calibration Accessories

PM Series Accessories

服务

Calibration and Alignment

Advanced Energy has the tools and processes to ensure your equipment continues to meet its original specifications.  Our products are calibrated at global AE service sites with proprietary technology designed to exceed industry standards​.

Agreement Term Options

Repair

Our worldwide service centers provide fast cycle times, use only AE-qualified parts, and follow the original product's specifications and test procedures for the highest quality repair or calibration.

Agreement Term Options
