OLH10K Series
Active
10 kW Rack-Mounted Converter with HV Disc Set

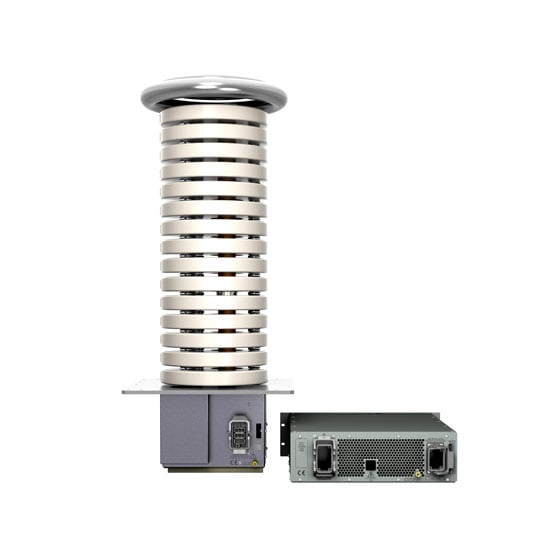

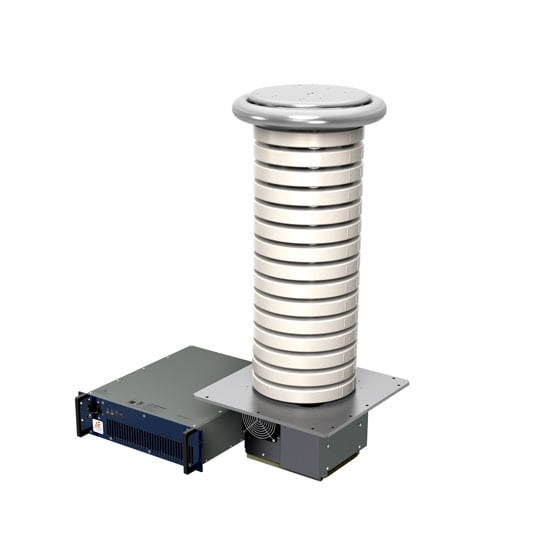

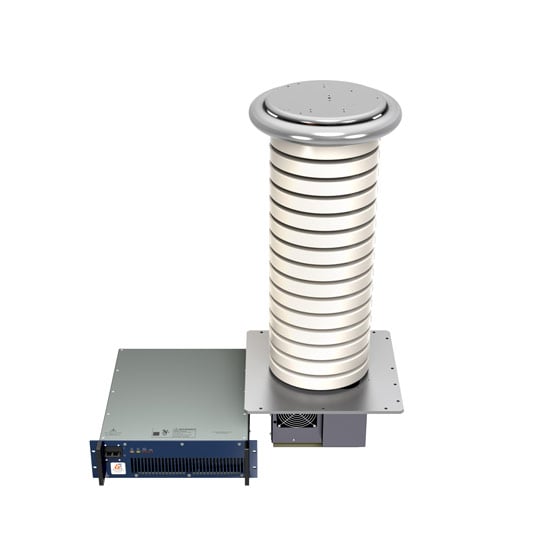

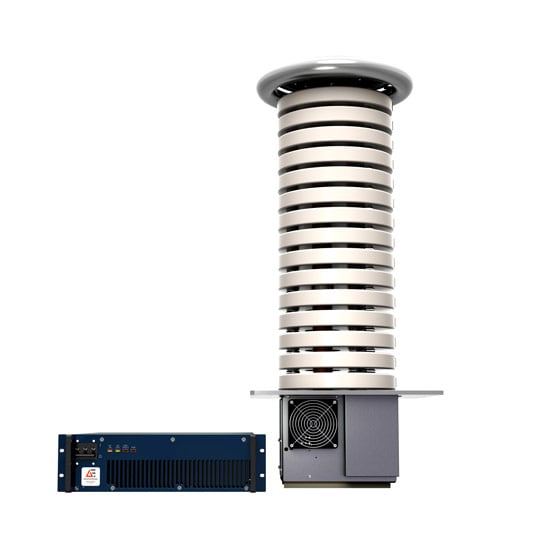

Advanced Energy’s OLH10K series includes a range of exceptionally reliable, single-output, 10 kW high voltage power supplies. The custom-only supplies consist of two units. One features a rack-mount power converter that can facilitate both local and remote controls. The other is a separate HV unit that employs a modular disc construction. Three different input voltage variants are available: OLH10K (208 VAC), OLH10KC (380 VAC), and the OLH10KE (400 VAC).
特点
- 10 kW in 3U rack mounted converter with HV disc set
- Extended maximum high voltage range — up to 300 kV
- Unique Arc Count and Extinguish (ACE) system for managing load-arcing
- Efficient and reliable operation
益处
- Use in multiple application with a flexible, wide-output voltage range for use in multiple applications
- Reduces maintenance requirements and safety risks via innovative arcing self-protection system
- Ideally solve for 24 x 7 production processes where high reliability and performance are paramount
- Reduce costs by selecting only needed high power capabilities
技术文档
比较
| Model | OLH10K Series | OLS10KD Series | OLS10K Series |
|---|---|---|---|
| 输出功率（瓦） | 10000 | 10000 | 10000 |
| 波纹（ppm） | <1000 | <500 | <500 |
| 输出电压范围 (V) | 60000 to 300000 | 1000 to 100000 | 100000 |
