SL Power™

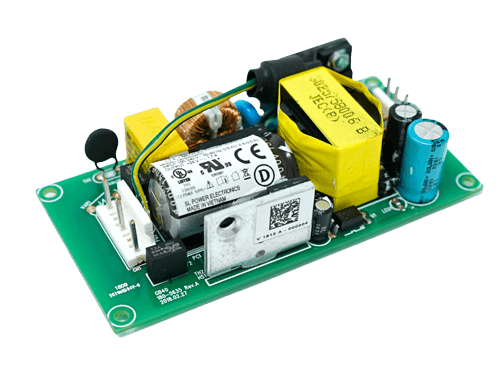

GB30 Series

Active

30 W Single Output Medical and Industrial Grade

Advanced Energy’s SL Power GB30 is a superior performance 30 W AC-DC converter, designed for medical/industrial applications. It is highly efficient (meets DOE level VI) and can effortlessly integrate in any system that requires 30 W of convection cooled power. All models are CE marked to low voltage directive and approved to CSA/EN/IEC/UL62368-1 and CSA/EN/IEC/UL60601-1 3.1 Edition. It meets Heavy Industrial and IEC60601-1-2 4th Edition Levels of EMC and meets Class B Radiated & Conducted Emissions with margin. The GB30 is offered in both Class I and Class II input.

特点

  • 30 W Open Frame and PCB-mount Power Supply
  • 1.9” x 4.0” x 1.0” package
  • Universal Input 90 to 264 VAC
  • <0.1 W no load input power
  • >1,000,000 hours MTBF

益处

  • Approved to EN/IEC/UL62368-1
  • Approved to CSA/EN/IEC/UL60601-1, 3rd Edition
  • Meets Class B Radiated & Conducted EMI with margin
  • Meets Heavy Industrial and IEC60601-1-2 4th Edition Levels of EMC
  • E-Cap life of >7 years
  • 3-year warranty

规格

输出功率(瓦): 30
长度(英寸): 4
宽度(英寸): 1.9
高度(英寸): 1
安装类型: Embedded PSU
最小输出电流 (A): 0.63
最大输出电流 (A): 4
输出电压范围 (V): 5V to 48V
所有规格 折叠规格

库存检查

型号
最小值电压 (V) 最大电压电压 (V) 电流 (A) 标称电压 (V) 输出数量 样品 购买
GB30S05K01 活动,有库存
5V @ 4A , Class I
5 5 4 5 1 要求 购买
GB30S07K01 活动,有库存
7.5V @ 3A, Class I
7.5 7.5 3 7.5 1 要求 购买
GB30S09K01 活动,有库存
9V @ 3A, Class I
9 9 3 9 1 要求 购买
GB30S09P01 Active, 联系我们
9V @ 3.0A PCB Mount Class II
9 9 3 9 1 联系我们 购买
GB30S12K01 活动,有库存
12V @ 2.5A, Class I
12 12 2.5 12 1 要求 购买
GB30S12P01 Active, 联系我们
12V @ 2.5A PCB Mount Class II
12 12 2.5 12 1 联系我们 购买
GB30S15K01 活动,有库存
15V @ 2A, Class I
15 15 2 15 1 要求 购买
GB30S24K01 活动,有库存
24V @ 1.33A, Class I
24 24 1.33 24 1 要求 购买
GB30S24P01 活动,有库存
24V @ 1.33A PCB Mount Class II
24 24 1.33 24 1 要求 购买
GB30S48K01 活动,有库存
48V @ 0.63A, Class I
48 48 0.63 48 1 要求 购买
