tegam ®

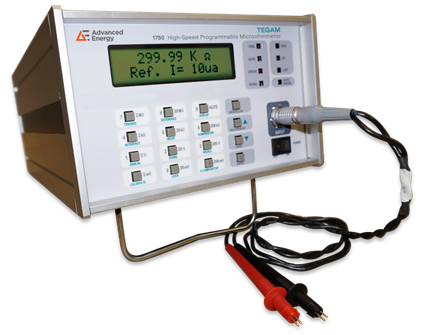

1750 Micro-Ohmmeters

Active

High-Speed Micro-ohmmeter (not CE certified)

Recognized as the industry’s fastest precision micro-ohmmeter, the 1750 Series micro-ohmmeters by TEGAM have become the #1 choice in manufacturing environments.  Fuse manufacturers use it for nondestructive tests where the unmatched precision increases the process yield to the point where the 1750 pays for itself in weeks. The vast majority of resistors less than 1 Ohm are tested and sorted to accuracy better than 0.1% by the 1750.  Automotive suppliers use it to consistently meet stringent quality requirements of welds, bonds and electrical connection in sub-assemblies. Aircraft manufacturers employ the 1750 micro-ohmmeter to measure wiring harnesses and RF shields for connection integrity.  The capability of the 1750 enables the accurate real-time measurement of electro-plating thickness and conductive coatings on housings and shields.

TEGAM’s 1750 Series micro-ohmmeter employs multiple techniques to achieve its impressive accuracy.  A four-wire kelvin technique eliminates the effects of lead resistance while offset compensation removes the errors caused by thermal contact voltages.  The 1750 even monitors its performance over time and adjusts its calibration against a set of internal low temperature coefficient resistors to ensure consistent measurement performance without constant recalibration.

TEGAM specializes in low resistance measurement.  Our technical sales staff and applications engineers understand both the measurement challenges you face and your manufacturing environment.  They can help you solve your product-yield or quality problems with low resistance measurements.

特点

  • Micro-ohmmeter Basic Accuracy: 0.02%
  • Measurement Speed: 10 ms
  • Range : 2 mΩ to 20 MΩ
  • Resolution : 100 nΩ
  • Programmable reference currents
  • GPIB, RS-232 and PLC compatibility
  • Kelvin Klips, Spade Lugs or Kelvin Probes available
  • Easy to operate and easy to integrate
  • 3-year Warranty
  • Assembled in the USA

益处

  • Super-fast measurements allow maximum optimization of production lines
  • Instrument can be used to control high-speed laser trimmers and material handlers
  • High-accuracy measurements aloe for precise component sorting, verifying and labeling
  • Automatic compensation for thermal and electromagnetic noise maintain high accuracy in factory environments
  • Flexible programming options to easily adapt to many different applications
  • Multiple communication interface options to readily connect to maximize programming efficiency
  • Excellent for dry circuit testing of switches, relays, and connector contacts
  • Easily operated via front panel or remote computer

规格

准确性: 0.02%
Connector Type: Lemo
Max. Resolution: 100 nΩ
Maximum Test Current: 1.0 A
测量范围: 100 nΩ to 20 MΩ
工作温度(°C): 0 to 50 ⁰C

库存检查

型号
Accuracy Connector Type Max. Resolution Maximum Test Current Measurement Range 购买
1750 Active, 联系我们
High-Speed Micro-ohmmeter (not CE certified)
0.02% Lemo 100 nΩ 1.0 A 100 nΩ to 20 MΩ 购买
