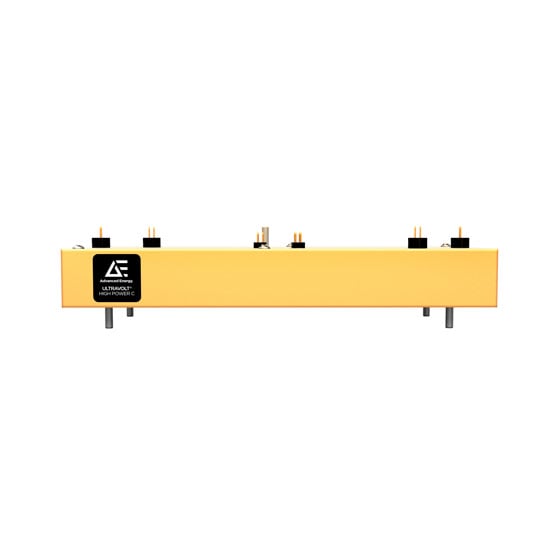

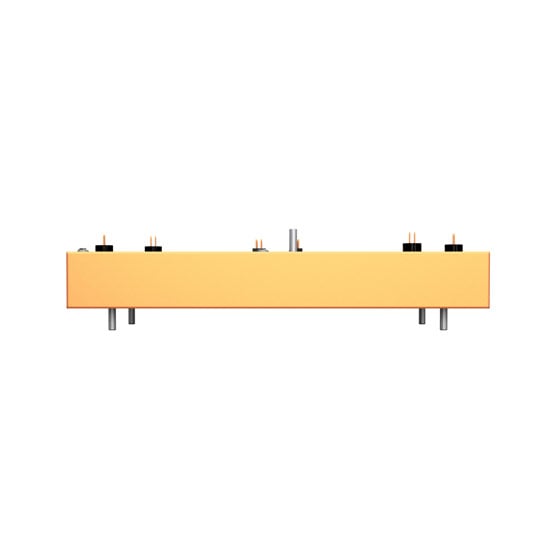

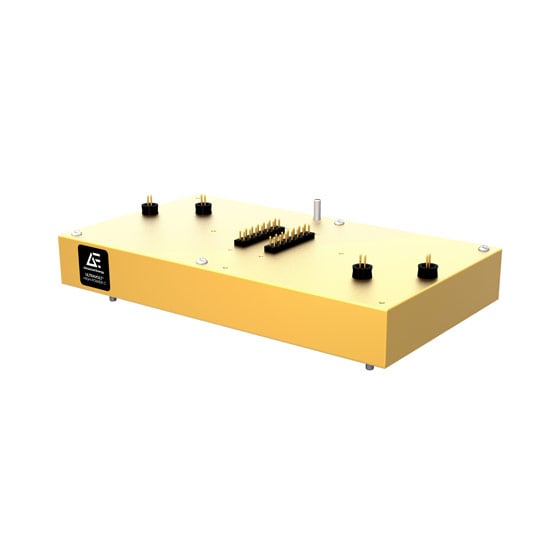

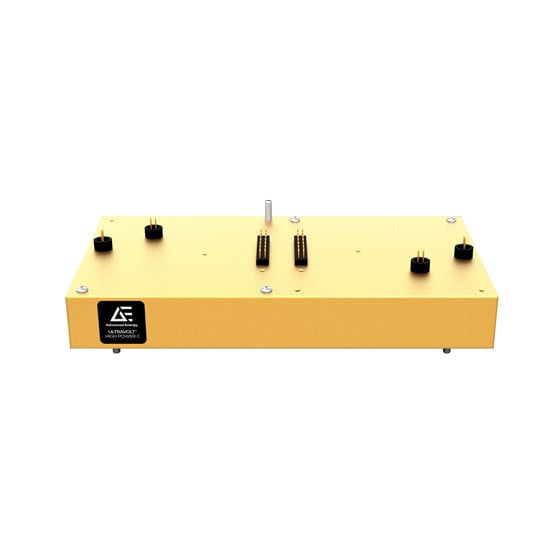

Dual Polarity C Series

Active

Dual-Output High Voltage Capacitor Charging Power Supply

Advanced Energy’s UltraVolt Dual Polarity C series of regulated DC-DC power supplies is designed for high-voltage capacitor charging applications that demand fast charging rates and limited voltage overshoot, such as pulsed power, ultrasound, amplifiers, and pulse generators. Included in the series are seven dual-output models ranging from ±125 to ±6,000 VDC of maximum high-voltage power. Each pair offers both a positive and negative polarity in a single package. From a 24 VDC input, access up to 250 W of total fast-rise charging power with less than 1% overshoot. Each output is individually controlled using an analog interface. Meet specific application needs by selecting mechanical integration options.

特点

  • Fast-rise charging power delivered from an optimized design
  • Limited overshoot, typically less than 1% of high voltage setpoint, depending on the application
  • Fully-integrated dual output package
  • Full-range control and monitoring of high voltage output and current
  • Selection of electrical and mechanical integration options

益处

  • Increase system throughput with quick capacitor charging
  • Minimize stress on storage capacitors, enhance system reliability, and simplify product design
  • Reduce system footprint and simplify packaging
  • Enable more responsive and adaptable control of high voltage capacitor charging
  • Expand mechanical integration and interconnection possibilities

规格

输出功率(瓦): 120 to 250
长度(英寸): 8
宽度(英寸): 4.5
高度(英寸): 1.1
安装类型: Through Hole, Surface Mount
最小输出电流 (A): 0.01
最大输出电流 (A): 1
输出电压范围 (V): 0 to 6000
所有规格 折叠规格

库存检查

型号
控制类型 最大输出功率(瓦) 最大输出电压 (V) 输出数量 波纹(ppm) 温度系数 输出类型 样品 购买
1/2C24-NP125-1 活动,有库存 Analog 60 0.5 2 10000 50 Unipolar 要求 购买
1/2C24-NP250-1 Active, 联系我们 Analog 125 0.5 2 10000 50 Unipolar 联系我们 购买
1/4C24-NP125-1 Active, 联系我们 Analog 60 0.25 2 10000 50 Unipolar 联系我们 购买
1/4C24-NP250-1 活动,有库存 Analog 125 0.25 2 10000 50 Unipolar 要求 购买
1/8C24-NP125-1 Active, 联系我们 Analog 60 0.125 2 10000 50 Unipolar 联系我们 购买
1/8C24-NP250-1 活动,有库存 Analog 125 0.125 2 10000 50 Unipolar 要求 购买
1C24-NP125-1 Active, 联系我们 Analog 60 1 2 10000 50 Unipolar 联系我们 购买
1C24-NP250-1 活动,有库存 Analog 125 1 2 10000 50 Unipolar 要求 购买
2C24-NP125-1 Active, 联系我们 Analog 60 2 2 10000 50 Unipolar 联系我们 购买
2C24-NP250-1 Active, 联系我们 Analog 125 2 2 10000 50 Unipolar 联系我们 购买
4C24-NP125-1 活动,有库存 Analog 60 4 2 10000 50 Unipolar 要求 购买
4C24-NP250-1 Active, 联系我们 Analog 125 4 2 10000 50 Unipolar 联系我们 购买
6C24-NP125-1 Active, 联系我们 Analog 60 6 2 10000 50 Unipolar 联系我们 购买
6C24-NP250-1 Active, 联系我们 Analog 125 6 2 10000 50 Unipolar 联系我们 购买

技术视频

比较

Model Dual Polarity C Series C Series High Power C Series
长度(英寸) 8 3.7
宽度(英寸) 4.5 1.5
高度(英寸) 1.1 0.8
输出电压范围 (V) 0 to 6000 0 to 6000 0 to 60,000
最大输出功率(瓦) 250 30 250
