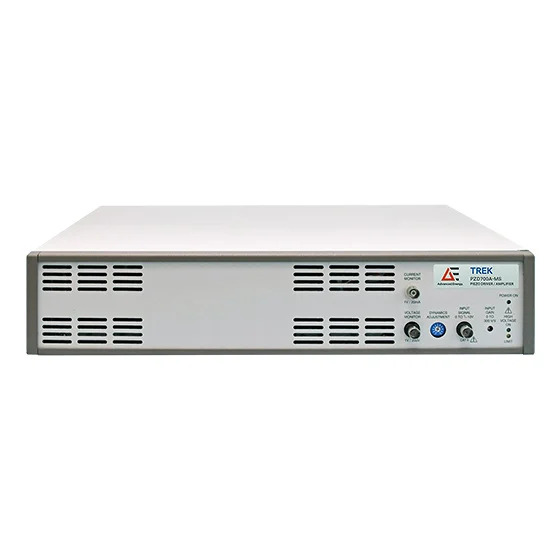

Trek PZD700A M/S
Precise Control, High Voltage Piezo Driver and Amplifier, Output Voltage 0 to ±700 VDC or Peak AC
The Trek® PZD700A M/S piezo driver and amplifier system provides precise voltage control. Its customer-specified voltages are factory set and it features an all-solid-state design, impressive slew rates, and superior bandwidth capabilities. The Trek PZD700A M/S piezo driver and amplifier system’s input is configured as non-inverting, but an inverting configuration is available. It has a four-quadrant active output stage that sinks or sources the current into reactive or resistive loads throughout the output voltage range.
- Precision voltage and current monitors
- Remote access
- Dynamic adjustment optimizes the AC response for various load parameters
- NIST-traceable calibration certificate provided with each unit
- Four-quadrant output for driving capacitive loads
- Rely on ultra-accurate outputs thanks to low-output noise
- Achieve high accuracy via a closed-loop system
- Adjust gain, 0 to 300 V/V
- Save costs thanks to maintenance-free operation and an all-solid-state design
- Safeguard equipment with short-circuit protection
Amplifier Selection Calculator
To help you select the appropriate Trek amplifier, we created this calculator. It uses peak-to-peak voltage to help calculate values associated with driving capacitive loads. If you have any difficulty with this software or would rather not do the download, please use the step-by-step calculator procedure.
