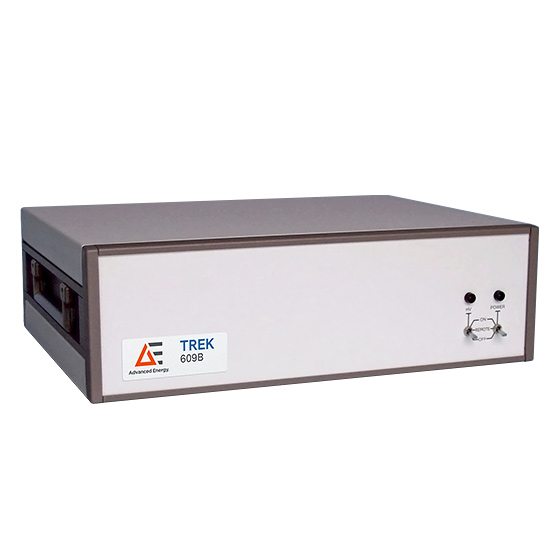

Trek 609B-3
ActiveHigh Voltage Power Amplifier for Industrial and Research Applications
The Trek® 609B-3 is a DC-stable high voltage power amplifier. The four-quadrant, active output stage sinks or sources current into reactive or resistive loads throughout the output voltage range. This output is essential to achieve accurate output responses and high slew rates demanded by highly capacitive or reactive loads. It is configured as a non-inverting amplifier, an inverting amplifier, or as a differential amplifier. Different input configurations can be wired into the unit.
特点
- Configurable as a non-inverting amplifier, inverting amplifier, or as a differential amplifier
- Available factory set line voltage of 100 VAC, 115 VAC, or 230 VAC at 48 to 63 Hz
- All-solid-state design for a high slew rate, wide bandwidth, and low noise operation
- Four-quadrant output for driving capacitive loads
- NIST-traceable calibration certificate provided with each unit
益处
- Achieve accurate output response and high slew rate for highly capacitive or reactive loads
- Protect equipment with short-circuit protection
- Utilize in programmable supply applications with DC-stable device
- Increase accuracy with a closed-loop system
技术文档
配件
Amplifier Selection Calculator
To help you select the appropriate Trek amplifier, we created this calculator. It uses peak-to-peak voltage to help calculate values associated with driving capacitive loads. If you have any difficulty with this software or would rather not do the download, please use the step-by-step calculator procedure.
服务
Calibration and Alignment
Advanced Energy has the tools and processes to ensure your equipment continues to meet its original specifications. Our products are calibrated at global AE service sites with proprietary technology designed to exceed industry standards.
