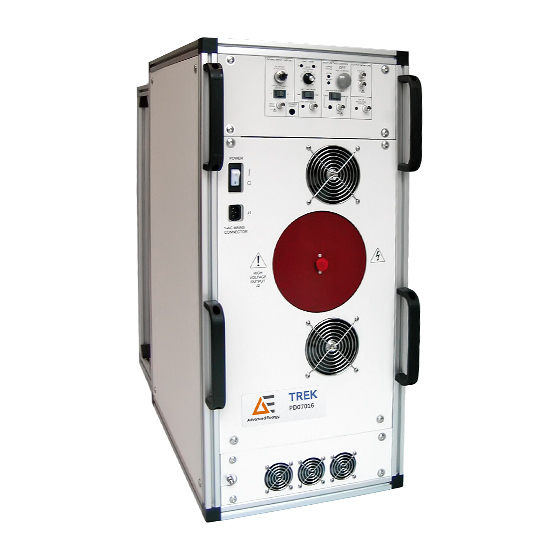

Trek PD07016
Active
2
Non-Inverting High Voltage Amplifier, Output Voltage 0 to ±10 kV DC or Peak AC
The non-inverting Trek® PD07016 high voltage amplifier has a fixed gain of 1000 V/V. It is protected against over-voltage and over-correct conditions generated by active loads or output short circuits to the ground. Precision voltage and current indicators provide low voltage representations of the high voltage output and load current for monitoring or use as feedback signals in a closed-loop system.
特点
- Dynamic adjustment capabilities to optimize the AC response for various load parameters
- Inverting and differential options available
- NIST-traceable calibration certificate provided with each unit
- DC-stable for programmable supply applications
- CE compliant (230 VAC unit only)
益处
- Benefit from a closed-loop system and achieve high accuracy
- Take advantage of complete solid-state design and maintenance-free operation
- Rely on ultra-accurate outputs thanks to low-output noise
- Protect against overvoltage and overcurrent conditions generated by active loads
- Drive capacitive loads via a four-quadrant output
规格
| 输出功率（瓦）: | 3000 |
|---|---|
| 最大输出电流 (A): | ±0.06, ±0.3 |
| 压摆率（伏/毫秒）: | >1000000 |
| 输出电流范围 (mA): | 0 to ±60 |
| 输出电压范围 (V): | 0 to ±10000 |
技术文档
配件
Amplifier Selection Calculator
To help you select the appropriate Trek amplifier, we created this calculator. It uses peak-to-peak voltage to help calculate values associated with driving capacitive loads. If you have any difficulty with this software or would rather not do the download, please use the step-by-step calculator procedure.
服务
Calibration and Alignment
Advanced Energy has the tools and processes to ensure your equipment continues to meet its original specifications. Our products are calibrated at global AE service sites with proprietary technology designed to exceed industry standards.
