Artesyn™

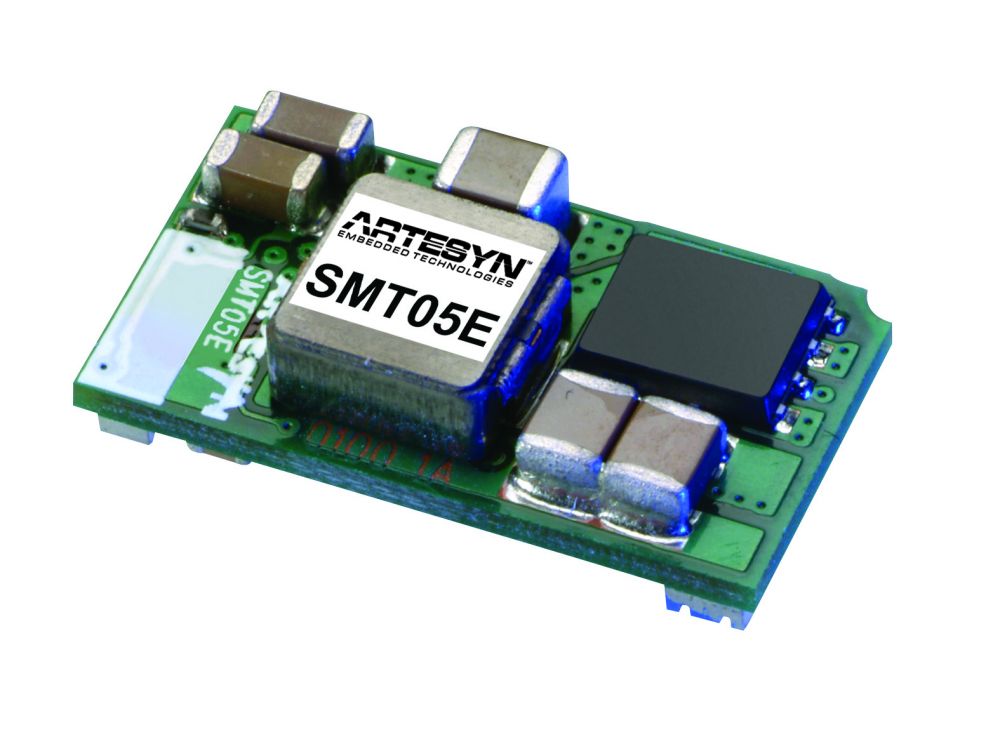

SMT05E_12V Series

Active

18 W (5 A) Non-Isolated DC-DC Converters

The SMT05E_12V series non-isolated DC-DC converter accepts a 10 to 14 VDC input and produces an output that can be trimmed over a very wide 0.8 to 3.63 VDC range to satisfy a broad diversity of semiconductor power needs. Rated at 16.5 W, the converter has a typical efficiency of 91% and can deliver up to 5 A. Standard features include remote On/Off and comprehensive protection against short-circuit and overtemperature conditions. Packaged as a low profile surface-mount module, it has a footprint of 0.45 x 0.8 inch (11.4 x 20.3 mm) and an installed height of only 0.23 inch (5.9 mm).

特点

  • 5 A current rating
  • Input voltage range: 10 to 14 VDC
  • Output voltage range: 0.8 to 3.63 V
  • Ultra-high efficiency: 91% @ 12 Vin and 3.3 Vout
  • Extremely low internal power dissipation
  • Minimal thermal design concerns
  • Designed in reliability: MTBF of 6,920,000 hours per Telcordia SR-322
  • Ideal solution where board space is at a premium or tighter card pitch is required
  • Industry standard surface-mount footprint
  • Available RoHS compliant
  • Two years warranty

规格

输出功率(瓦): 18
长度(英寸): 0.8
宽度(英寸): 0.45
高度(英寸): 0.264
安装类型: BMP; SMT
最小输出电流 (A): 5
最大输出电流 (A): 5
输出电压范围 (V): 0.8V to 3.63V
所有规格 折叠规格

库存检查

型号
最小值电压 (V) 最大电压电压 (V) 电流 (A) 标称电压 (V) 输出数量 样品 购买
SMT05E-12W3V3J 活动,有库存 0.8 3.63 5 0 1 要求 购买
