Artesyn™

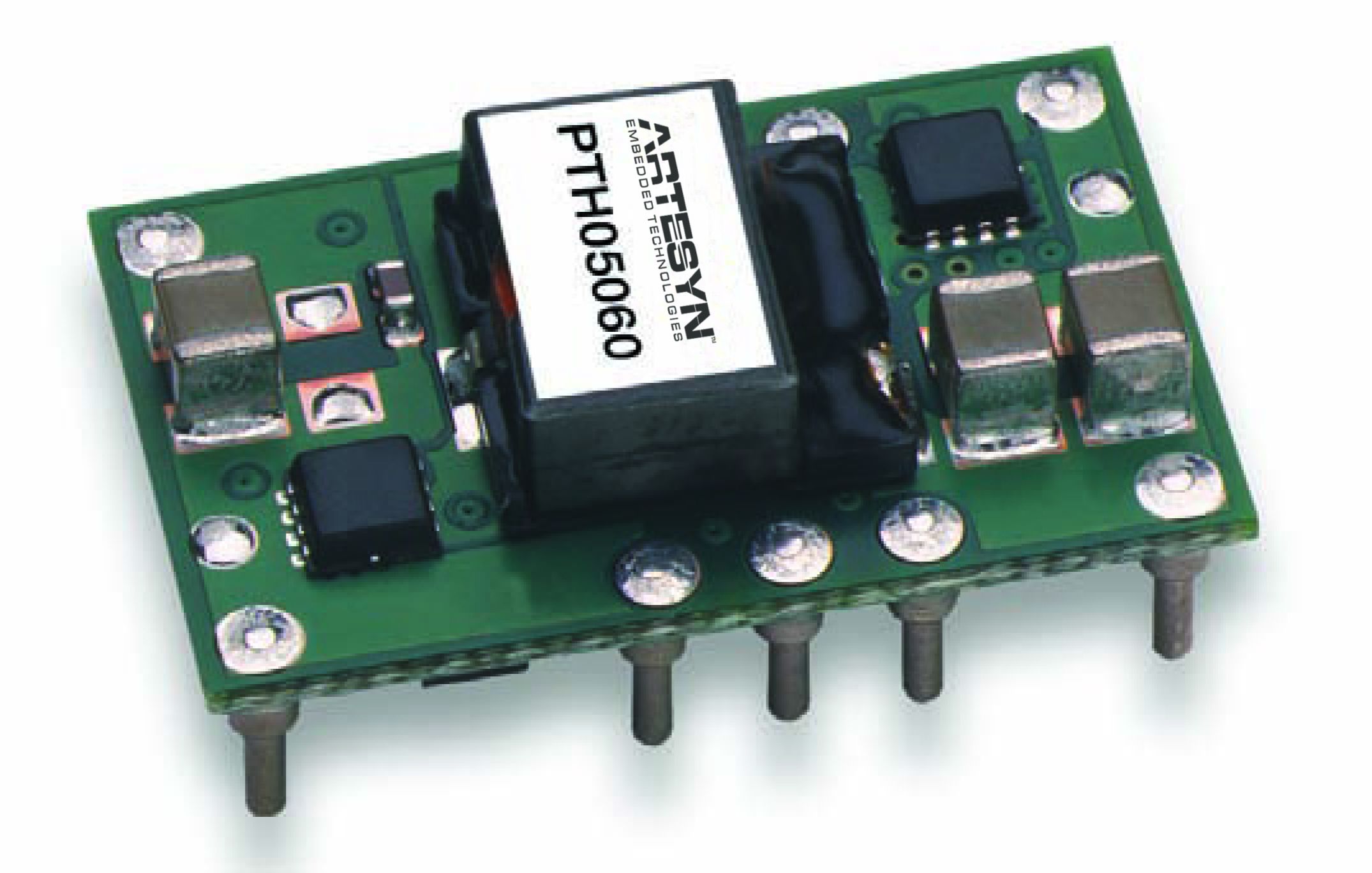

PTH05060

Not for New Designs

36 W (10 A) Non-Isolated DC-DC Converters

The 36 W PTH05060 series of non-isolated DC-DC converters offers such advanced Point-of-Load (POL) functions as Auto-Track™ (a Texas Instruments trademark) sequencing for controlled power-up/power-down of semiconductor devices like DSPs, FPGAs, and ASICs. Delivering up to 10 A and 94% efficiency, the devices offer an input voltage range of 4.5 to 5.5 VDC and an output voltage trimmable from 0.8 to 3.6 VDC to suit semiconductor power needs. Standard features include pre-bias startup, input undervoltage lockout, remote sense, remote On/Off, auto-resetting short-circuit protection, and compliance with the Point-of-Load Alliance (POLA) standard. The devices are available in through-hole horizontal mount and surface-mount versions with a 0.62 x 0.99-inch (15.7 x 25.3 mm) footprint and an installed height of 0.35 inches (9 mm).

特点

  • 10 A output current
  • 5 V input voltage
  • Efficiencies up to 94%
  • Wideoutput voltage adjust (0.8 Vdc to 3.6 Vdc)

益处

  • Autotracksequencing*
  • Available RoHS compliant
  • Margin up/down controls
  • Output ON/OFF inhibit
  • Output voltage sense
  • PointofLoadAlliance (POLA) compatible
  • Prebias startup capability

规格

输出功率(瓦): 36
长度(英寸): 0.99
宽度(英寸): 0.62
高度(英寸): 0.35
安装类型: BMP; SMT &Through Hole
最小输出电流 (A): 0
最大输出电流 (A): 10
输出电压范围 (V): 0.8V to 3.6V
所有规格 折叠规格

库存检查

型号 最小值电压 (V) 最大电压电压 (V) 电流 (A) 标称电压 (V) 输出数量 样品 购买
PTH05060W 0.8 3.6 10 1.2 1 联系我们 购买
