Artesyn™

ATA 10 Watt Isolated DC-DC Converter Series

Active

10 W Industrial DC-DC Converter

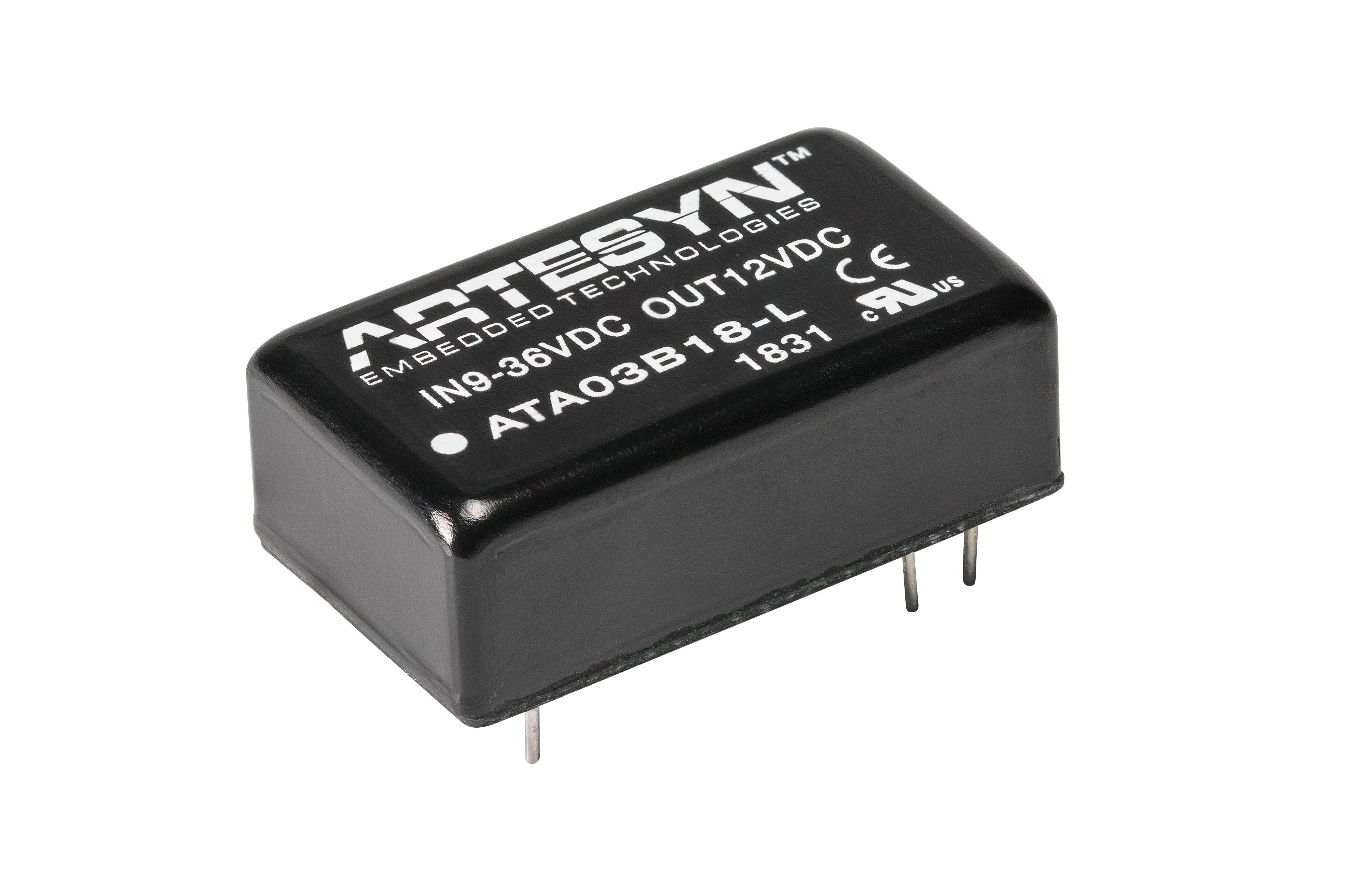

Advanced Energy’s ATA series 10 W isolated DC-DC converters are suitable for a diverse range of low power applications, including data communication, telecommunication and computer peripheral equipment, industrial automation and mobile battery-powered systems. The series comprises 14 variants, each of which is available in a mini dual-in-line package for through-hole mounting.

All ATA series 10 W converters feature ultra-wide 4:1 inputs; seven of the models have 9 to 36 V inputs and the other seven have 18 to 75 V inputs. Within each of these two categories, there is a choice of five single output models, offering voltages of 3.3 V, 5 V, 12 V, 15 V or 24 V, and two dual output models offering +12/-12 V or +15/-15 V.

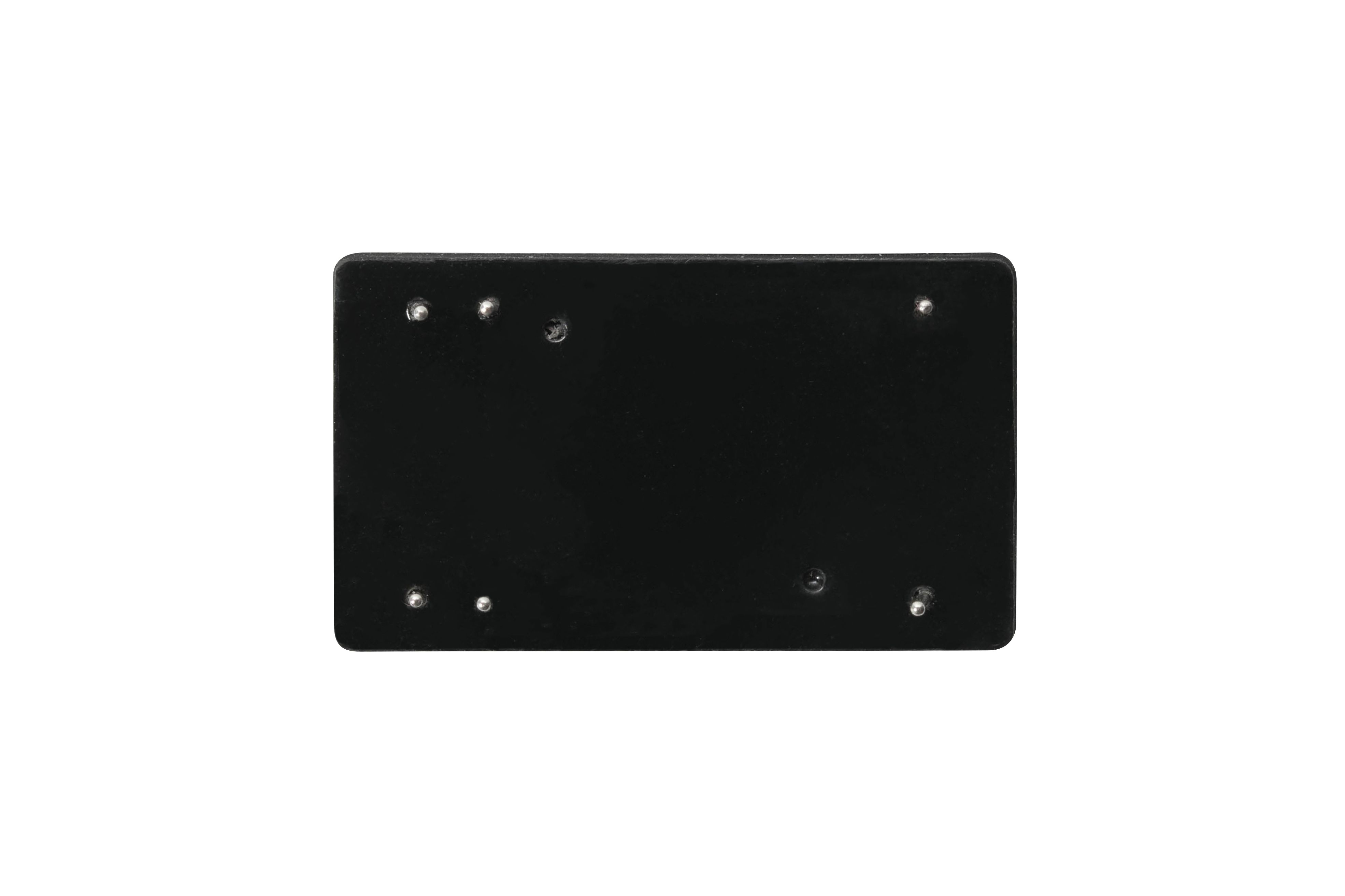

Fully encapsulated in an ultra compact 0.94 x 0.54 inch (24 x 13.7 mm) plastic case, the converters have a height of just 0.32 inch (8 mm). The surface-mount versions accommodate an ambient operating temperature range of -40 to 80˚C, while the through-hole versions can handle temperatures from -40 to 80˚C, both with suitable derating. Offering up to 80% conversion efficiency, the converters use 350 kHz fixed frequency switching to minimize the need for external EMI filtering and comply with the EN 55022 class A and FCC level A standards for conducted noise.

ATA series converters with output voltages of 5 V or higher are rated at 10 W power output; the four 3.3 V models are rated at 8.9 W. Standard features include 1500 VDC input/output isolation, remote On/Off and continuous (hiccup mode) protection against output short-circuit.

特点

  • Input voltage range 9V to 36V
  • Input voltage range 18V to 75V
  • Output voltage (Single) 3v3, 5v, 12v, 15v, 24v
  • Output voltage (Dual) +/-5V, +/-12V, +/-15V
  • Isolation voltage 1500Vdc

益处

  • Output voltage Single and Dual O/P versions
  • Mechanical Fully potted
  • Termination Through Hole or SMT

规格

输出功率(瓦): 10
长度(英寸): 0.94
宽度(英寸): 0.54
高度(英寸): 0.31
安装类型: BMP; SMT &Through Hole
最小输出电流 (A): 0.33
最大输出电流 (A): 2.7
输出电压范围 (V): -15V to 24V
所有规格 折叠规格

库存检查

型号
最小值电压 (V) 最大电压电压 (V) 电流 (A) 标称电压 (V) 输出数量 样品 购买
ATA03A18-L 活动,有库存 5 5 2 5 1 要求 购买
ATA03A36-L Active, 联系我们 5 5 2 5 1 联系我们 购买

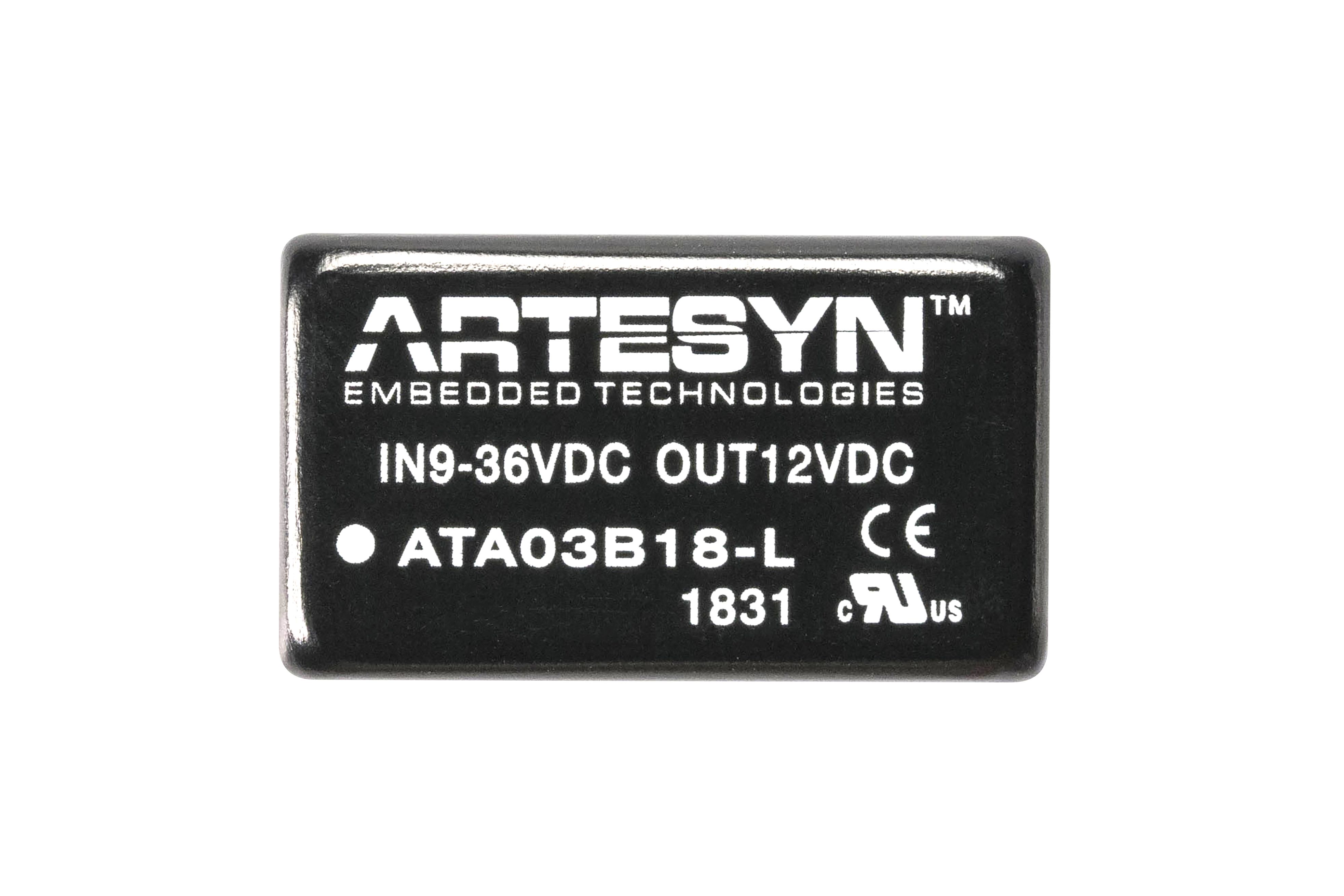

ATA03B18-L 活动,有库存 12 12 0.833 12 1 要求 购买
ATA03B36-L 活动,有库存 12 12 0.833 12 1 要求 购买
ATA03BB18-L 活动,有库存 12 12 0.416 12 2 要求 购买
ATA03BB36-L 活动,有库存 12 12 0.416 12 2 要求 购买
ATA03C18-L 活动,有库存 15 15 0.666 15 1 要求 购买
ATA03C36-L 活动,有库存 15 15 0.666 15 1 要求 购买
ATA03CC18-L 活动,有库存 15 15 0.333 15 2 要求 购买
ATA03CC36-L Active, 联系我们 15 15 0.333 15 2 联系我们 购买
ATA03F18-L 活动,有库存 3.3 3.3 2.7 3.3 1 要求 购买
ATA03F36-L 活动,有库存 3.3 3.3 2.7 3.3 1 要求 购买
ATA03H18-L 活动,有库存 24 24 0.416 24 1 要求 购买
ATA03H36-L 活动,有库存 24 24 0.416 24 1 要求 购买
