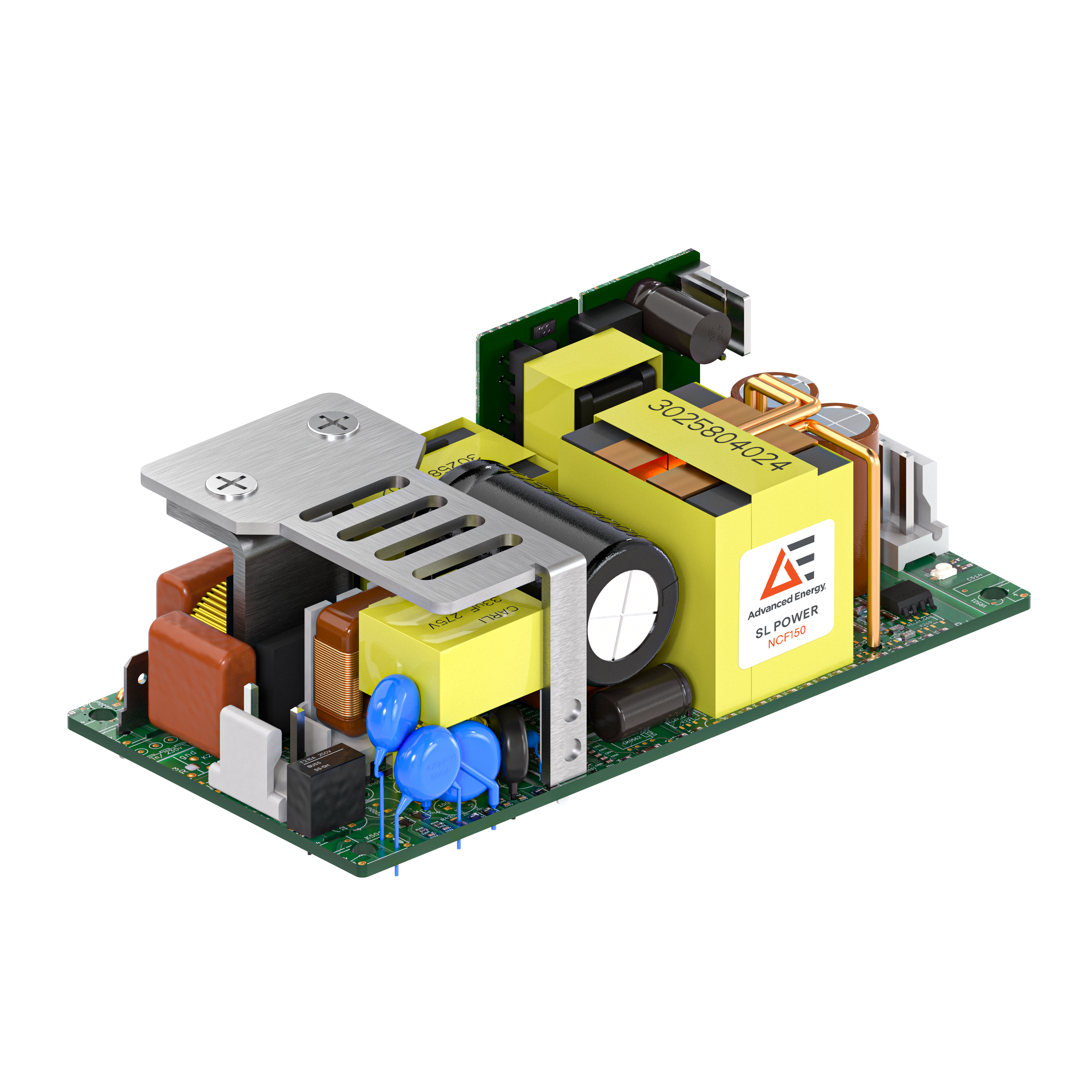

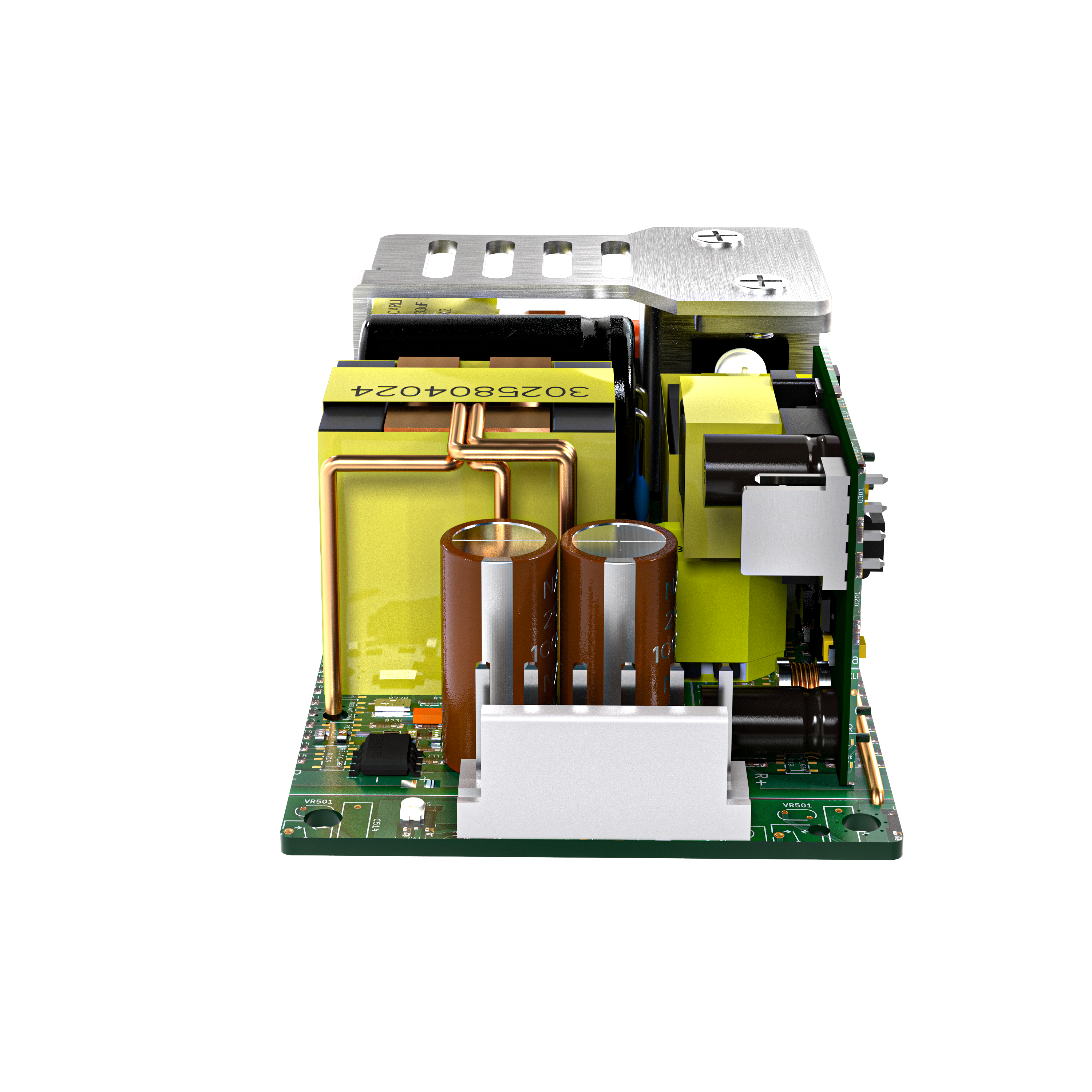

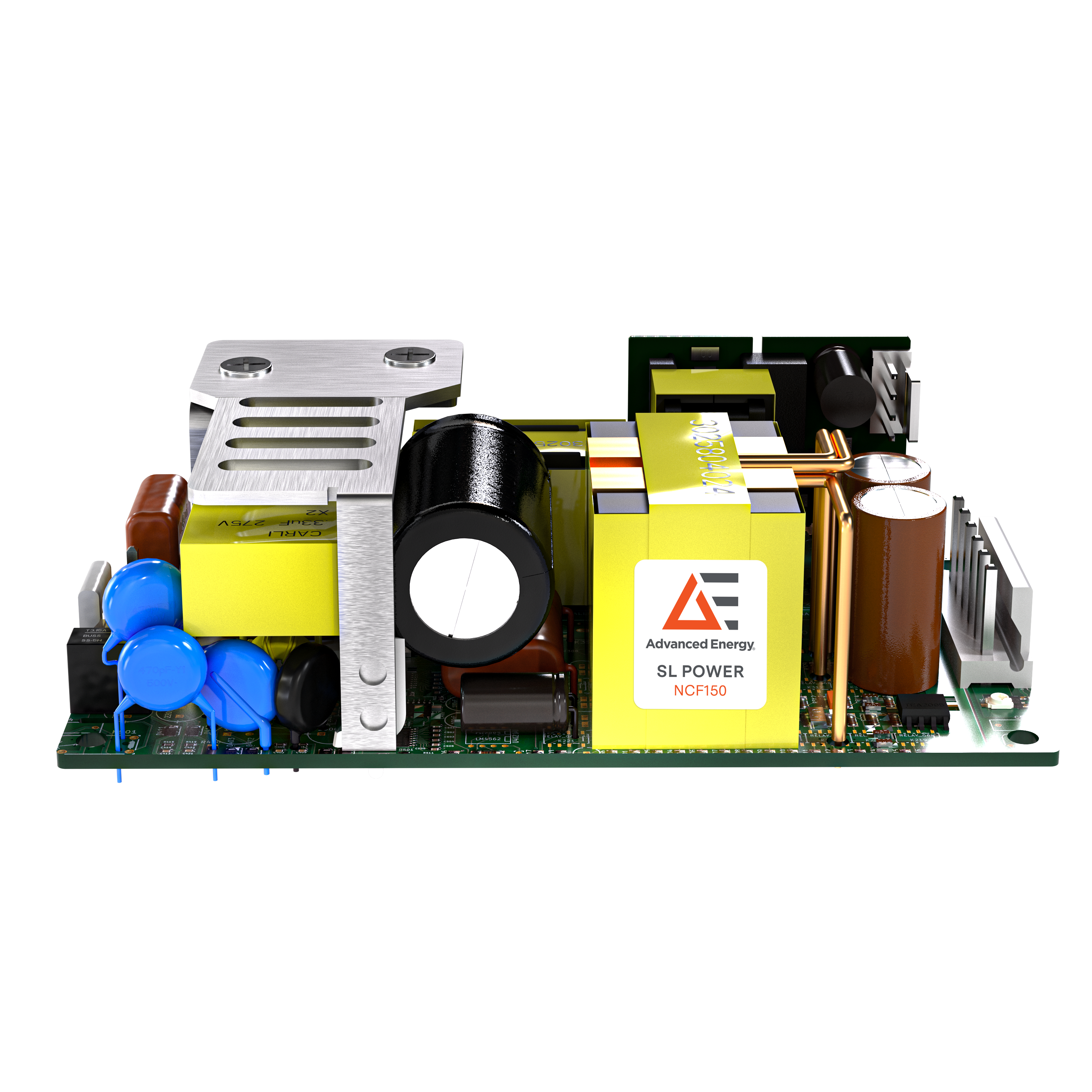

SL Power™

NCF150

Active

150 Watts CF Rated Medical

Advanced Energy’s SL NCF150 series are CF rated products for critical medical applications needing low leakage current with voltages of 12 V, 15 V, 19 V, 24 V and 48 V together with an optional 5 V standby and 12 V fan output. Each model accepts a universal input of 85 to 264 VAC full-load efficiency of greater than 90 percent. These compact switch-mode power supplies feature output overvoltage and short-circuit protection, these units are ideal for use in industrial and medical applications.

特点

  • 150 W max output power
  • 4.0” x 2.0” x 1.26”
  • Medical safety - CF rated
  • -40°C to 70°C with derating
  • 5 V standby @ 0.5 A
  • 12 V fan output @ 0.4 A
  • High efficiency: 90% typical
  • ± 10% adjustment range

益处

  • Industrial/Medical safety
  • Margin programming
  • Single Output
  • EMI Class B
  • EN61000 Immunity
  • UL60601
  • >7 year E-Cap Life
  • 3 Year Warranty

规格

输出功率(瓦): 150
输入电压 (V): Up to 264V
长度(英寸): 4
宽度(英寸): 2
高度(英寸): 1.2
安装类型: Chasis Mount
最小输出电流 (A): 0
最大输出电流 (A): 3
所有规格 折叠规格

技术文档

标题 类型
NCF150 3D File (7 MB) 三维模型
NCF150 Data Sheet (304 KB) 数据表
