Sekidenko OR400M Series
Active
Single-Channel Temperature Measurement Capability with Selectable/Fixed Emissivity

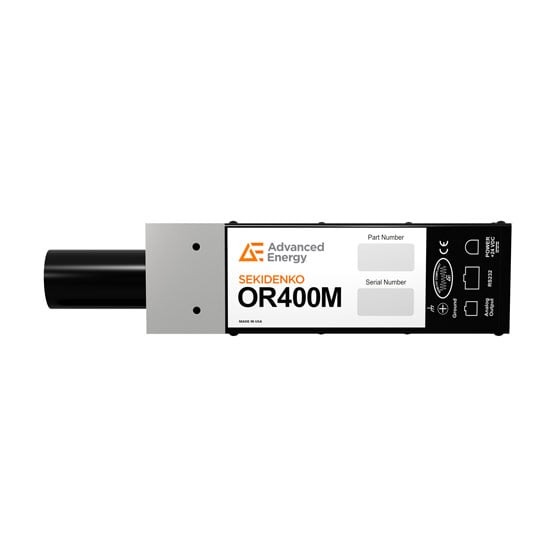

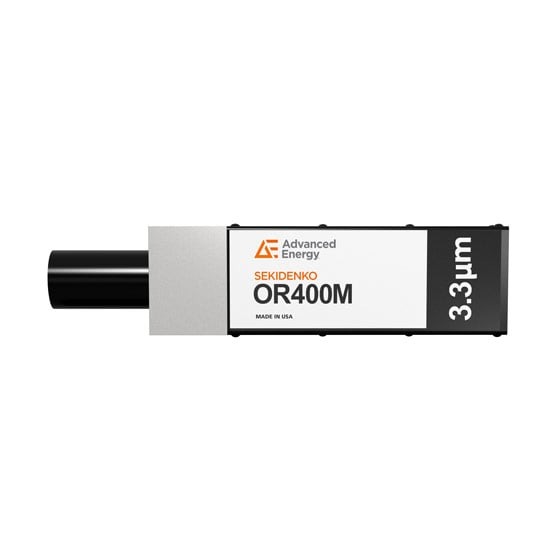

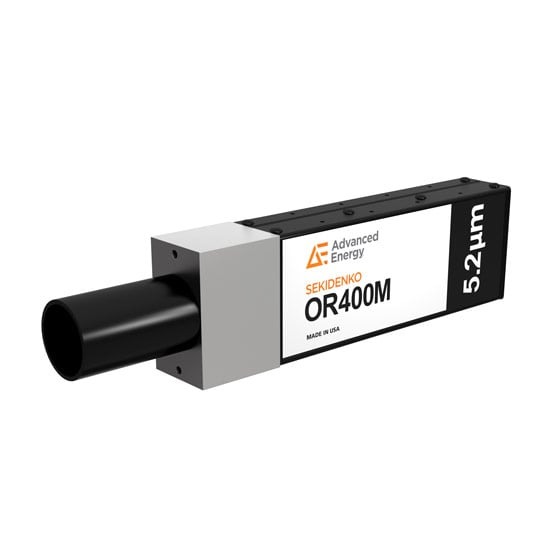

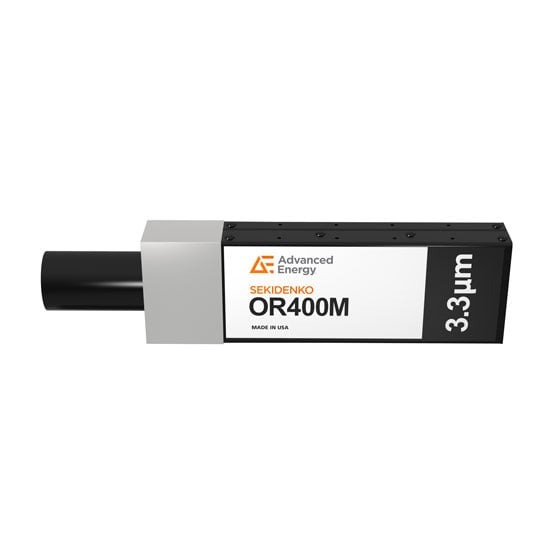

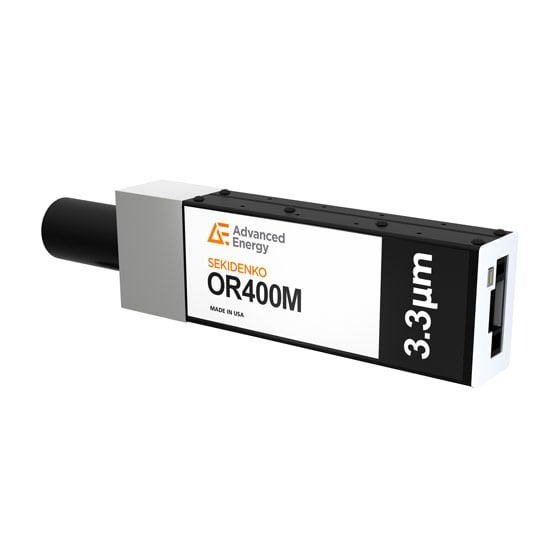

Advanced Energy’s OR400M Optical Pyrometer extends the flexibility of the Sekidenko product family into the mid-IR wavelength range, from 3.3 to 5.2 µm. The OR400M offers a single-channel temperature measurement capability for thin-film solar, glass, and advanced semiconductor processes. The OR400M supports RS-232 and analog data interfaces. Because of its compact design, the OR400M can easily meet small-footprint requirements of many process applications.
特点
- Non-contact temperature measurement employing lensed optical sensors
- Automatic ambient thermal correction
- Industry-leading temperature and read rates
- Highly flexible, module-based platform architecture
- Full I/O and external trigger/synchronization suite
益处
- Improves temperature measurement accuracy for critical processes
- Enhances repeatability and minimizes variation
- Increases productivity, yield, and throughput
- Increases stability and reliability across multiple chambers and substrate materials
规格
| 工作温度范围 (°C): | 50 to 1300 |
|---|---|
| 光谱范围（微米）: | 3.3 to 5,2 |
| 接口/输出（毫安）: | RS-232 at up to 115 kB |
| 准确性: | ±3 °C |
| 重量（千克）: | 0.39 |
| 波长重复性（pm）: | ±0.1 |
技术文档
Product Information Documents
Miscellaneous
技术视频
Advanced Pyrometers: Enhancing Process Repeatability
11月 25, 2025
Discover how advanced pyrometers enhance thermal process repeatability and boost product quality in demanding industrial environments. This video highlights key features like active ambient compensation, immunity to contamination, robust designs for harsh conditions, and active emissivity compensation. Learn how these innovative temperature measurement tools ensure accuracy and reliability, overcoming challenges such as stray energy interference, changing emissivity, and extreme temperatures. Elevate your manufacturing processes with precision and innovation for superior performance!
