Advanced™ Bus Module—SCR and Pyrometer Integration
Active
Precise data transmission for various fieldbus communication protocols
The Advanced Bus Module (ABM) can enhance the Thyro-XD SCR power controller's performance by enabling ultra-fast EtherCAT® connectivity. Users who choose to enable EtherCAT communication through the ABM and interface cards can benefit from additional functionality and performance by integrating temperature feedback from multiple Impac® pyrometers for real-time temperature control.
特点
- Connects Thyro-XD SCRs with Impac pyrometers
- Smallest footprint for optimized design with Thyro-XD SCRs
- Available grid optimization via dASM mode for up to 32 SCRs in full wave mode
益处
- Flexibility—Connect with a variety of common fieldbus communications via Anybus interface
- Real-time temperature control—SCR-pyrometer integration
- Insight—Full parameter access to all connected SCRs via Thyro Tool Pro Software with integrated USB interface

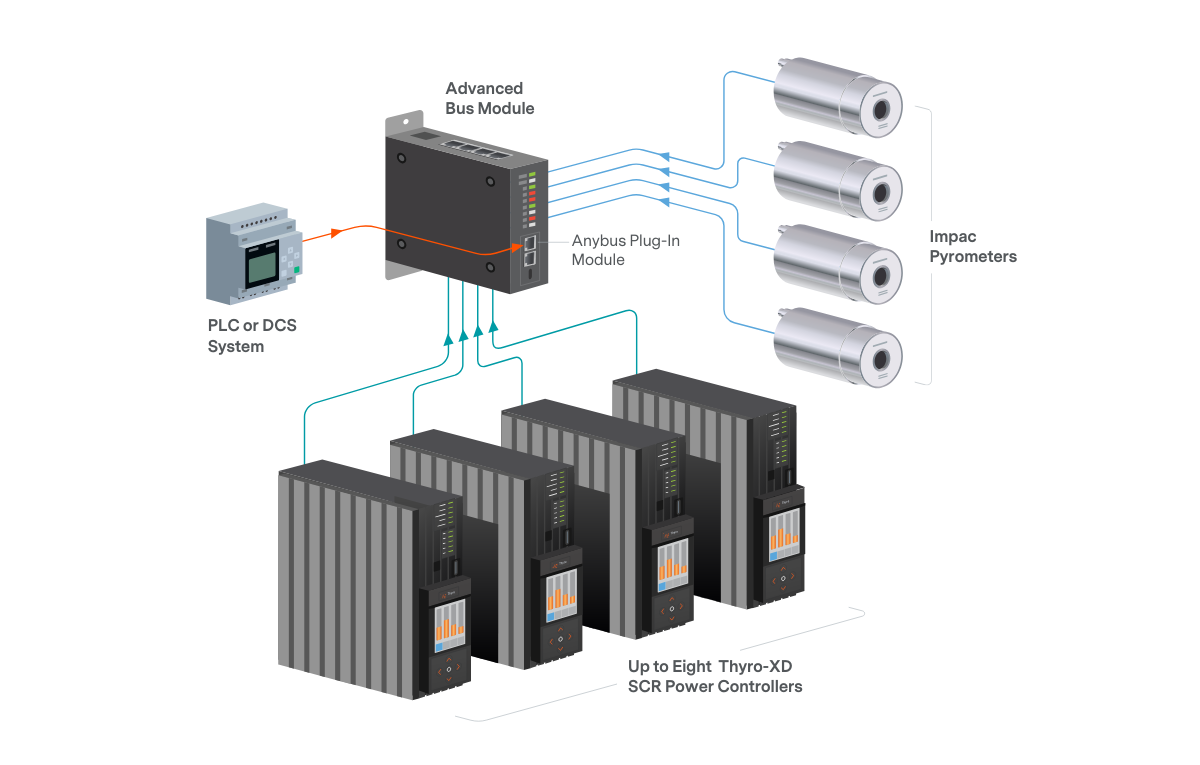

.png "Thyro-ABM-Diagram-(2).png")
Options
| Part Number | Model Descriptions |
|---|---|
| 2000190022 | Advanced Bus Module S: Advanced Bus Module Standard with EtherCAT® Switches |
| 2000190031 | Advanced Bus Module D: Advanced Bus Module Standard with dASM and without EtherCAT Switches |
| 2000190030 | Advanced Bus Module N: Advanced Bus Module Standard, without EtherCAT Switches, without dASM |
| Check Accessories for Part Number | Anybus Digital Interface Card: Ethernet/IP®, EtherCAT, PROFIBUS®, PROFINET®, Modbus TCP/IP® |
| 2000000380 | Thyro-Tool Pro PC: PC software for commissioning, visualization, configuration, and trending |
配件
Thyro Anybus Module - EtherCAT®
Communication Module Adds Another Interface
Thyro Anybus Module - EtherNet/IP
Communication Module Adds EtherNet/IP Interface
Thyro Anybus Module - Modbus
Communication Module Adds Modbus TCP Interface
Thyro Anybus Module - Profibus
Communication Module Adds the Profibus Interface
Thyro Anybus Module - Profinet
Communication Module Adds Profinet Interface
Thyro GSD Software
Download Thyro GSD files
下载
- Thyro GSD CANopen (Thyro-S, -A, -AX) (13 KB)
- Thyro GSD DeviceNet (Thyro-A, -AX) (47 KB)
- Thyro GSD EtherCAT (Thyro-PX) (13 KB)
- Thyro GSD EthernetIP (Thyro-PX) (11 KB)
- Thyro GSD EthernetIP (Thyro-S, -A, -AX) (4 KB)
- Thyro GSD Profibus (Thyro-PX) (10 KB)
- Thyro-PX ProfiNet Software (Thyro-PX) (16 KB)
- Thyro-PX ProfiNet Software (Thyro-S, -A, -AX) (14 KB)
Thyro Tool Pro
Thyro Tool software is custom software made for Thyro SCR Power Controllers
