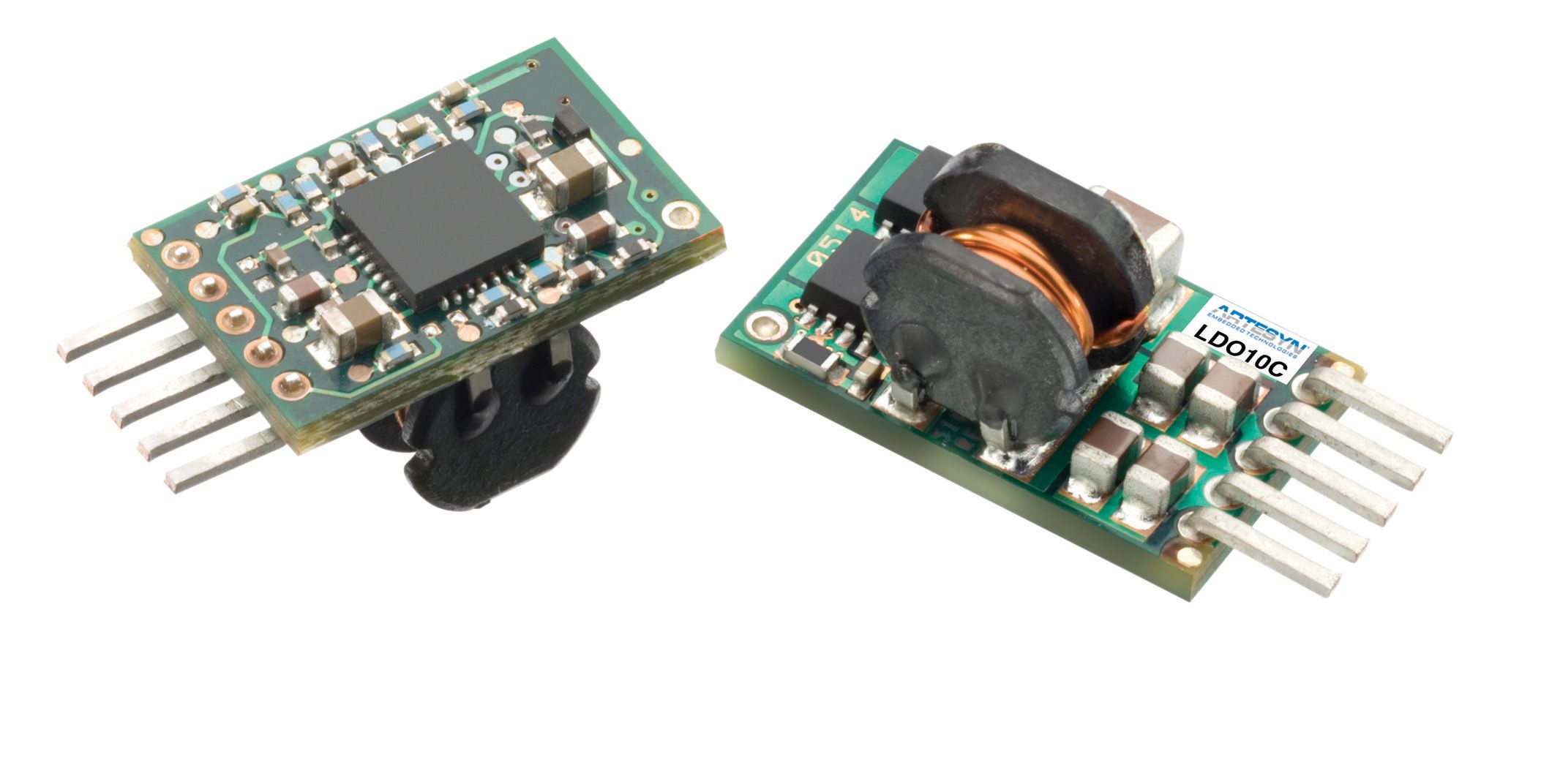

LDO10C Series

Active

50 W (10 A) Non-Isolated DC-DC Converters

The LDO10C series non-isolated DC-DC converter is designed for cost- and space-sensitive applications. It has a wide 3 to 13.8 VDC input range and offers a 0.59 to 5.1 VDC adjustable output that accommodates a wide variety of silicon power needs. Capable of delivering up to 10 A, the converter has a typical efficiency of 94%. A remote enable facility is provided as standard. The LDO10C series of 50 W DC-DC converters offer a choice of through-hole horizontal, through-hole vertical, and surface mounting.

特点规格 Stock Check 技术文档 Support

特点

High Efficiency up to 94%
Wide input voltage range: 3 to 13.8Vdc
Wide output voltage trim / adjustability: 0.59 to 5.1Vdc
Input Range 3 to 13.8 Vdc
Wide Output Trim 0.59 to 5.1 Vdc

益处

Current sink capability for termination applications
Excellent transient response
No added input or output capacitors needed for ripple current capability or stability
Remote on/off
Through Hole or Surface Mount (suffix "S") termination
Vertical (suffix "V") or Horizontal (suffix "H") Mounting

规格

输出功率（瓦）:	50
长度（英寸）:	0.65
宽度（英寸）:	0.41
高度（英寸）:	0.52
安装类型:	BMP; SMT &Through Hole
最小输出电流 (A):	10
最大输出电流 (A):	10
输出电压范围 (V):	0.59V to 5.1V
最小输出功率（瓦）:	50
最大输出功率（瓦）:	50
Minimum Input Voltage (V):	3
最大输入电压 (V):	13.8
保修期（年）:	2
