SL Power™
MINT1065 Series
Active
65 W Single Output Medical and Industrial Grade

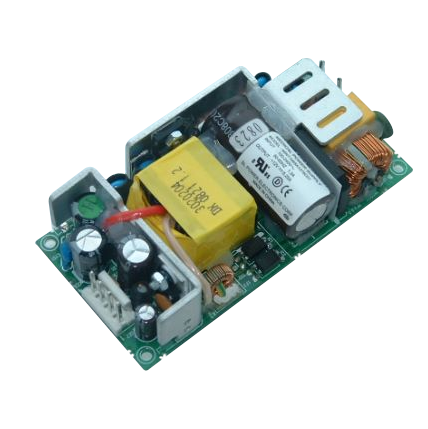

Advanced Energy’s SL Power MINT1065 medically-approved AC-DC power supplies are available with a nominal main output of 12 V, 13.2 V, 15 V, 18 V, 20 V, 24 V or 48 V. MINT1065 power supplies provide up to 65 W convection. All models have output overvoltage, short circuit and overload protection and a small 2 x 4 x 1.2 inch form factor.
特点
- 65 W Convection Cooled AC-DC Power Supply
- Universal Input 90 to 264 VAC
- Less than 0.5 W No Load Power Dissipation
- 2” x 4” x 1.2” Package
益处
- Medical & ITE – Universal Input Power Supply
- Rugged EMC Compliant Design
- Approved to IEC60601-1, 3rd Edition & EN/IEC/UL62368-1
- Approved to EN/IEC/UL60950-1, 2nd Edition
- Meets Efficiency Level IV Efficiency
- Compliant (LVD, RoHS)
- 3 Year Warranty
规格
| 输出功率（瓦）: | 65 |
|---|---|
| 长度（英寸）: | 4 |
| 宽度（英寸）: | 2 |
| 高度（英寸）: | 1.17 |
| 安装类型: | Embedded PSU |
| 最小输出电流 (A): | 1.35 |
| 最大输出电流 (A): | 5.25 |
| 输出电压范围 (V): | 12V to 48V |
技术文档
Product Information Documents
Safety & Compliance Certificates
Guides & Manuals
Engineering Resources
