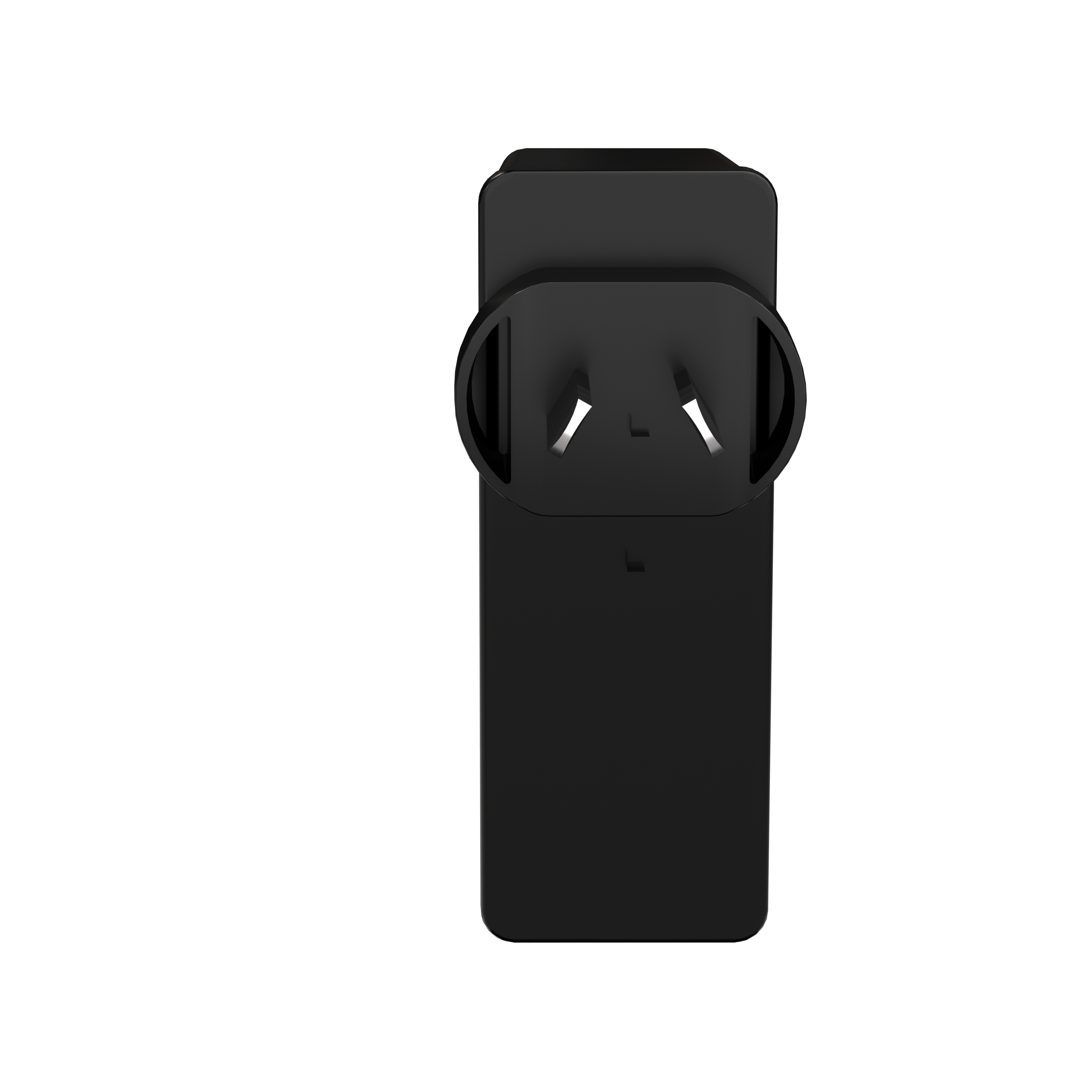

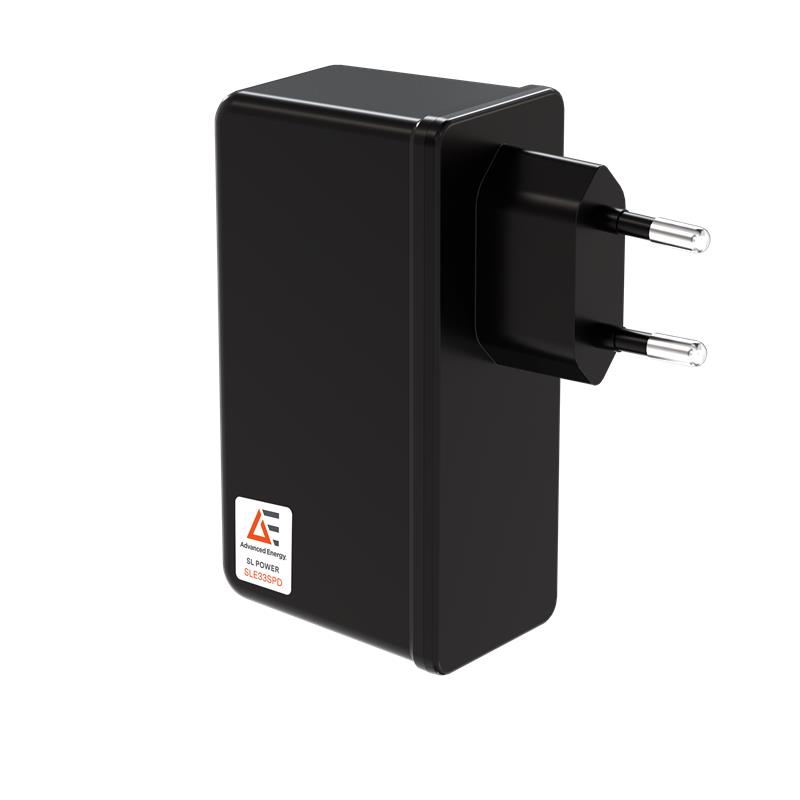

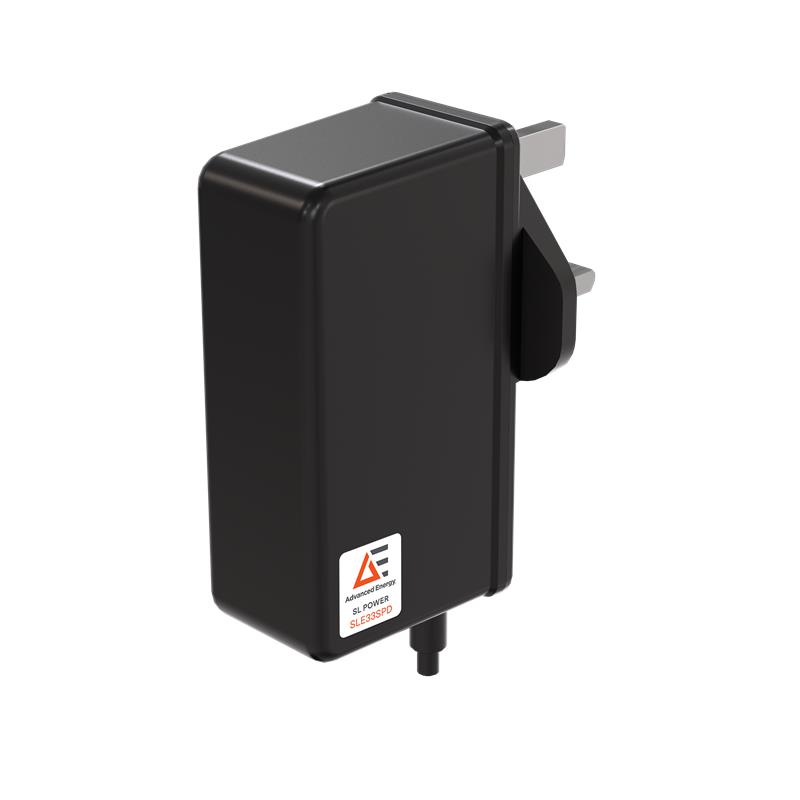

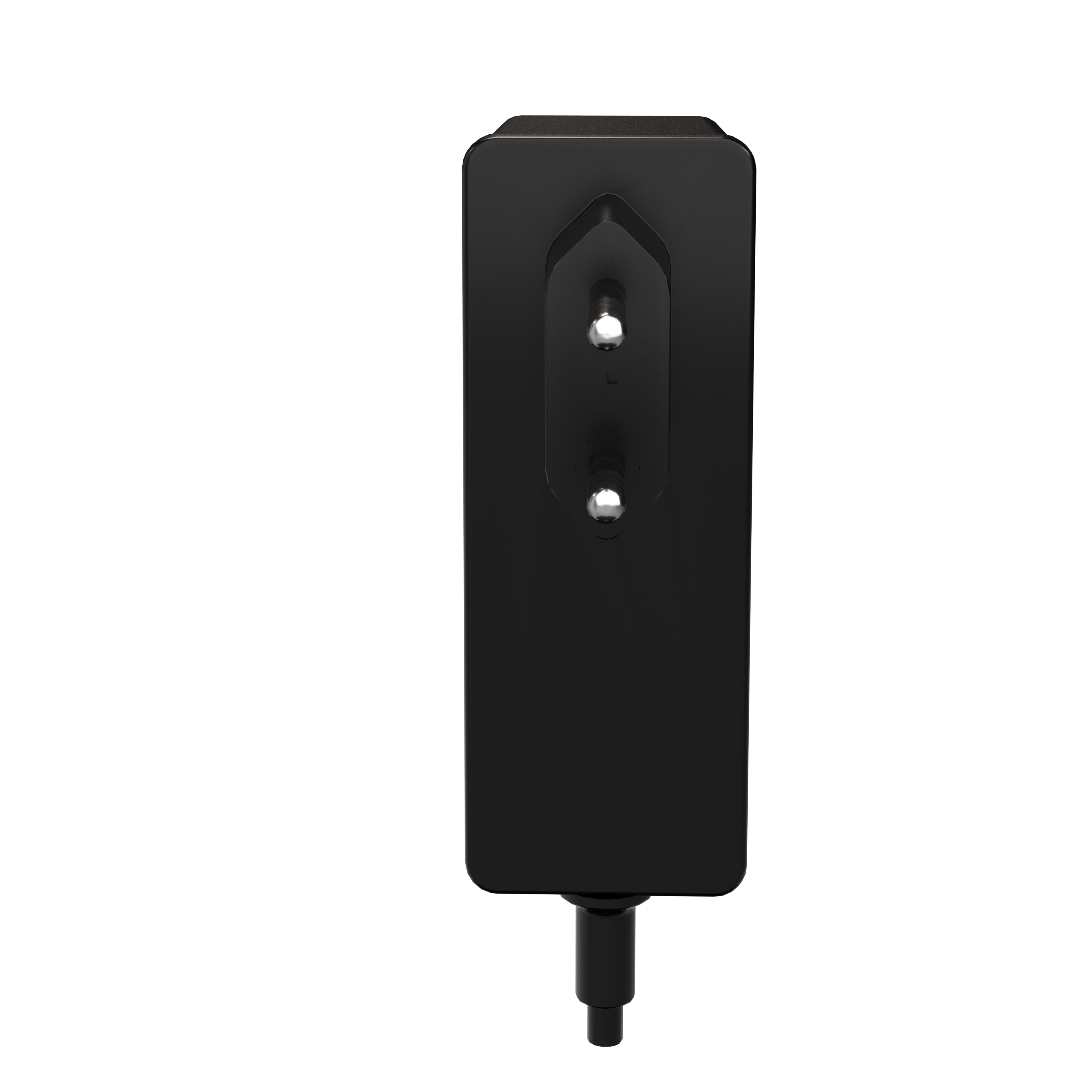

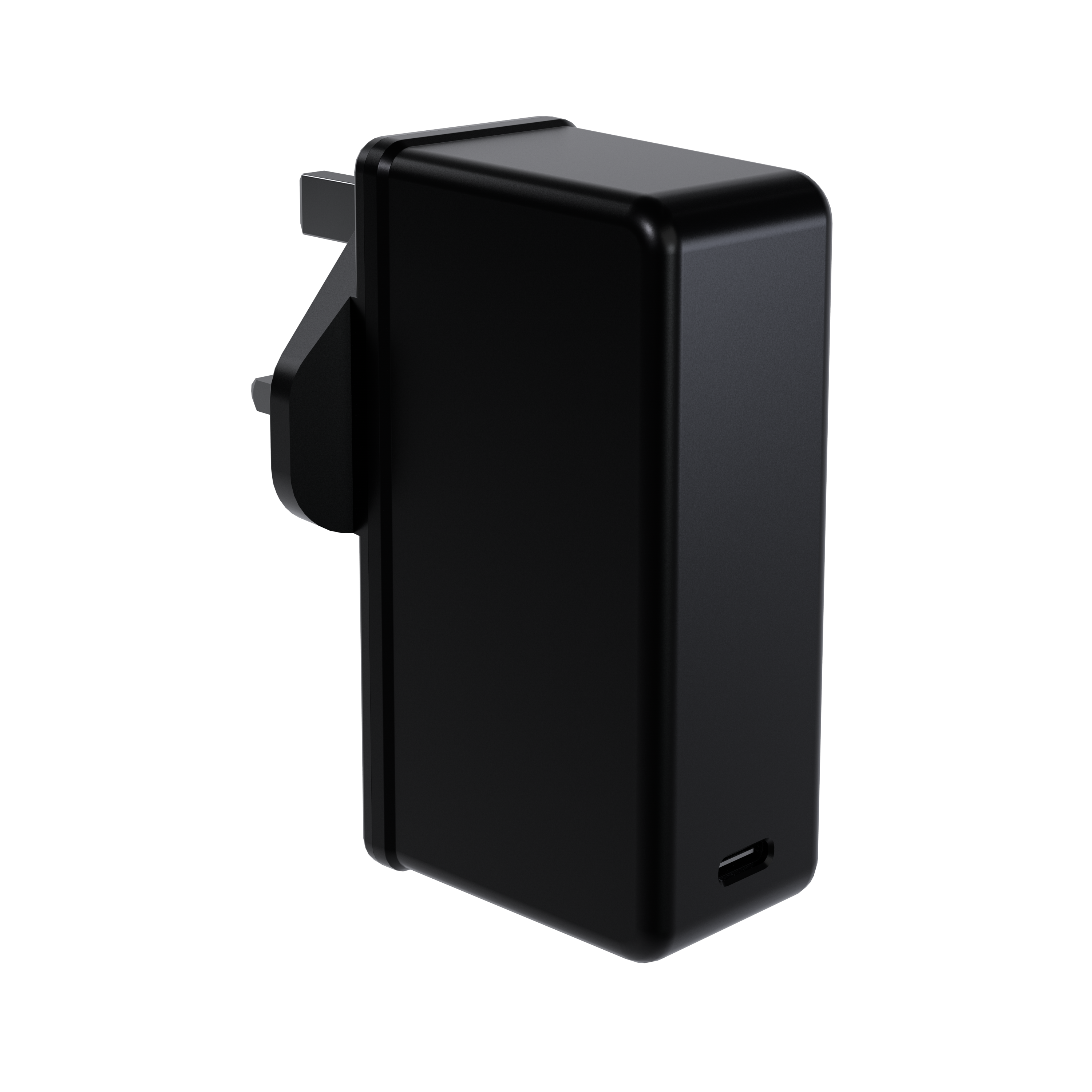

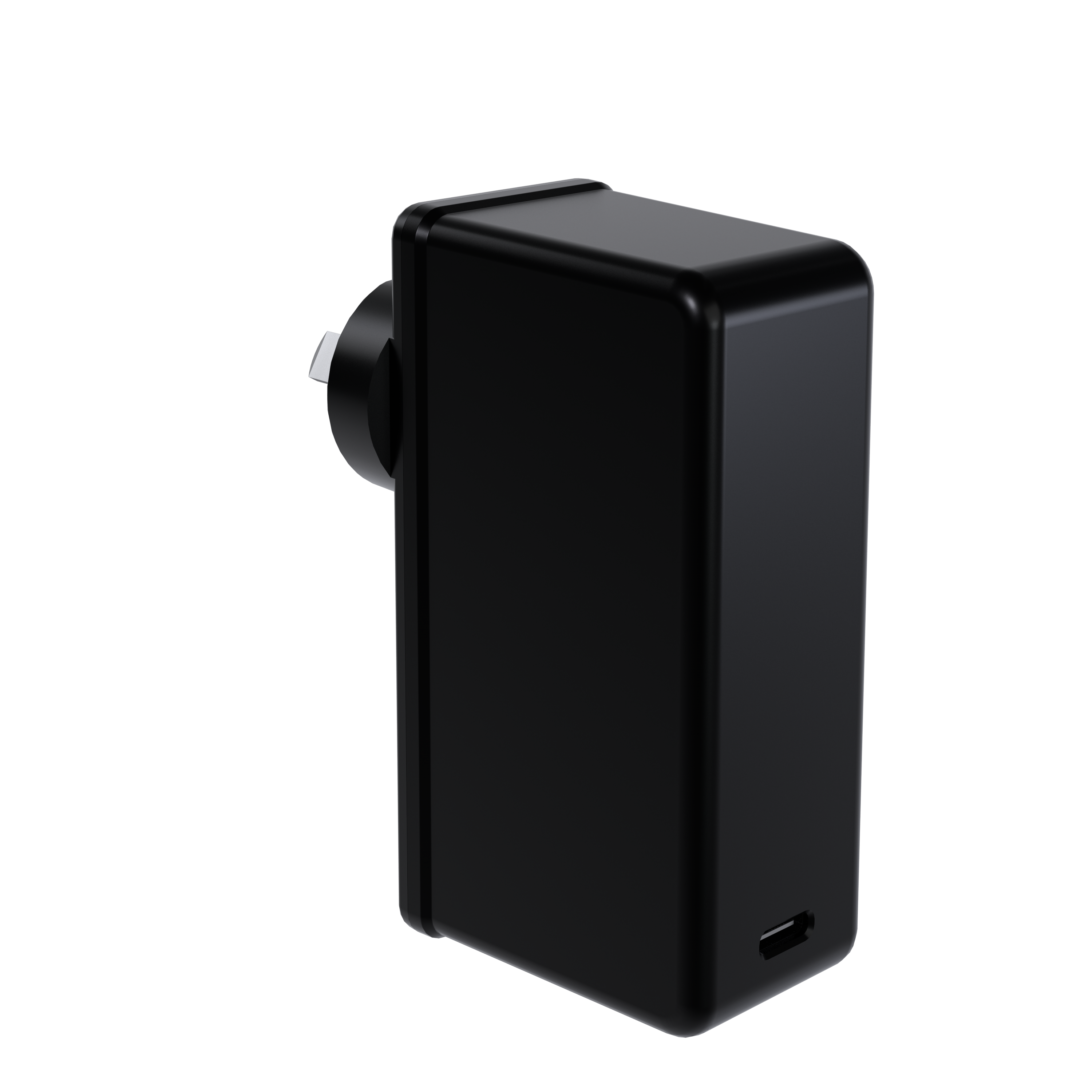

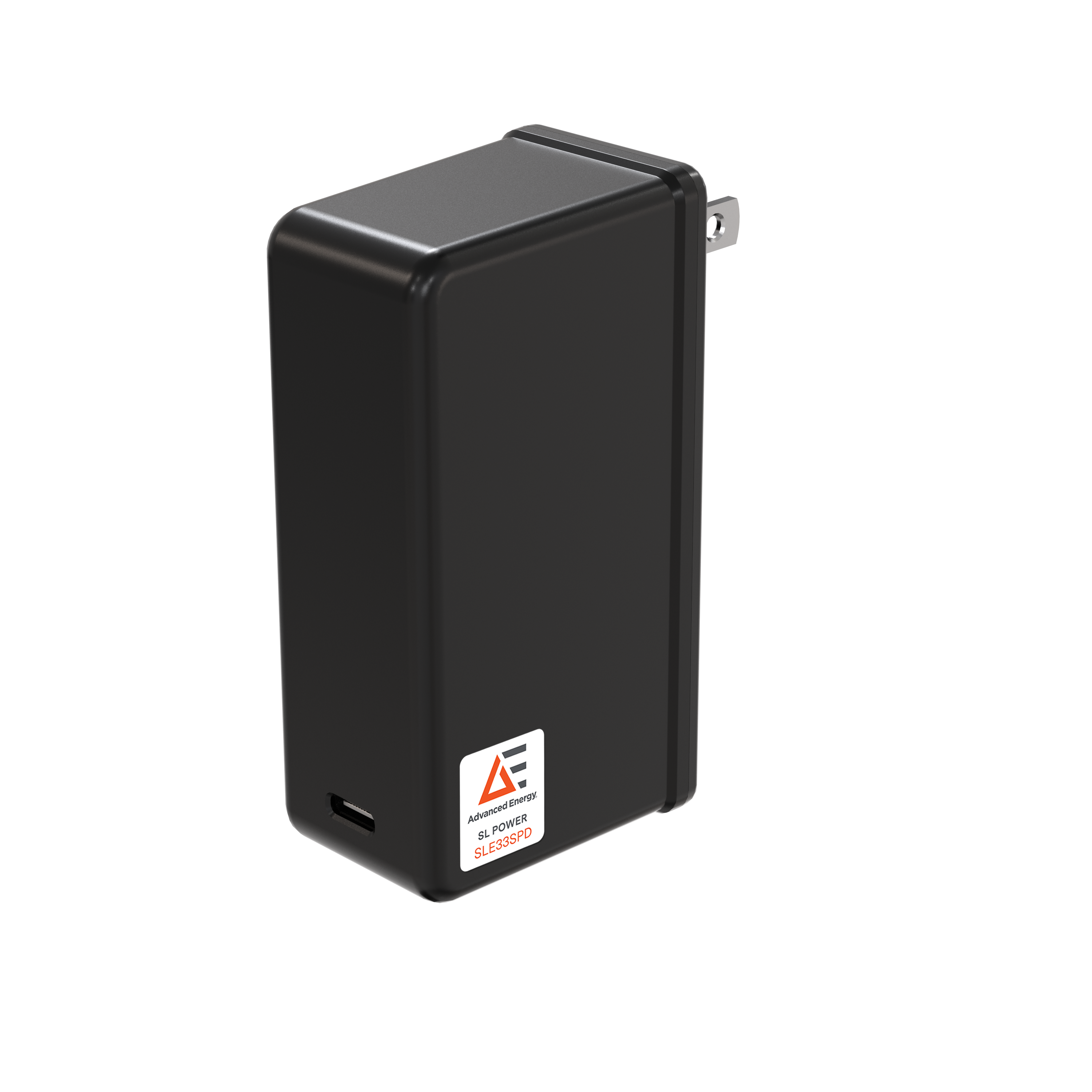

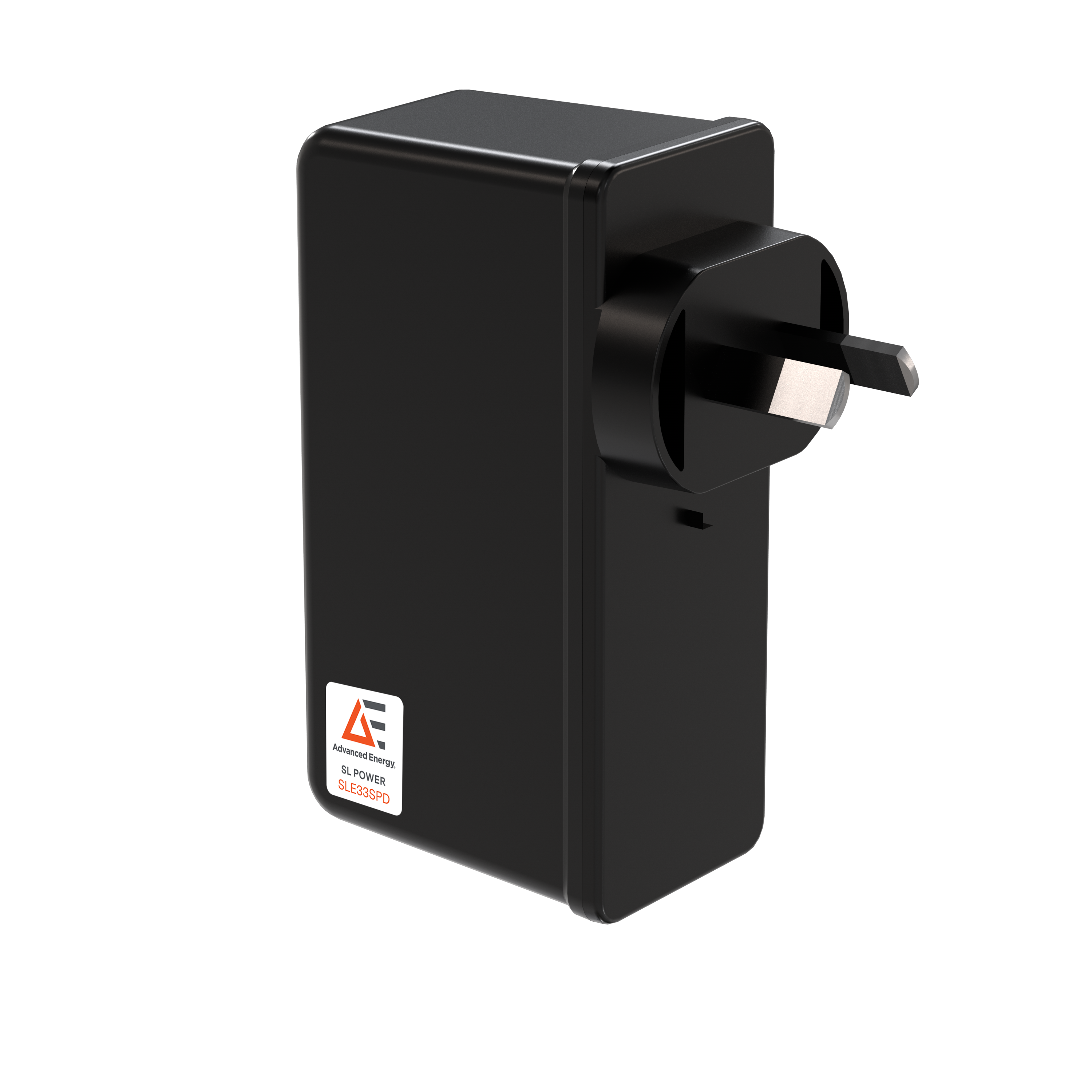

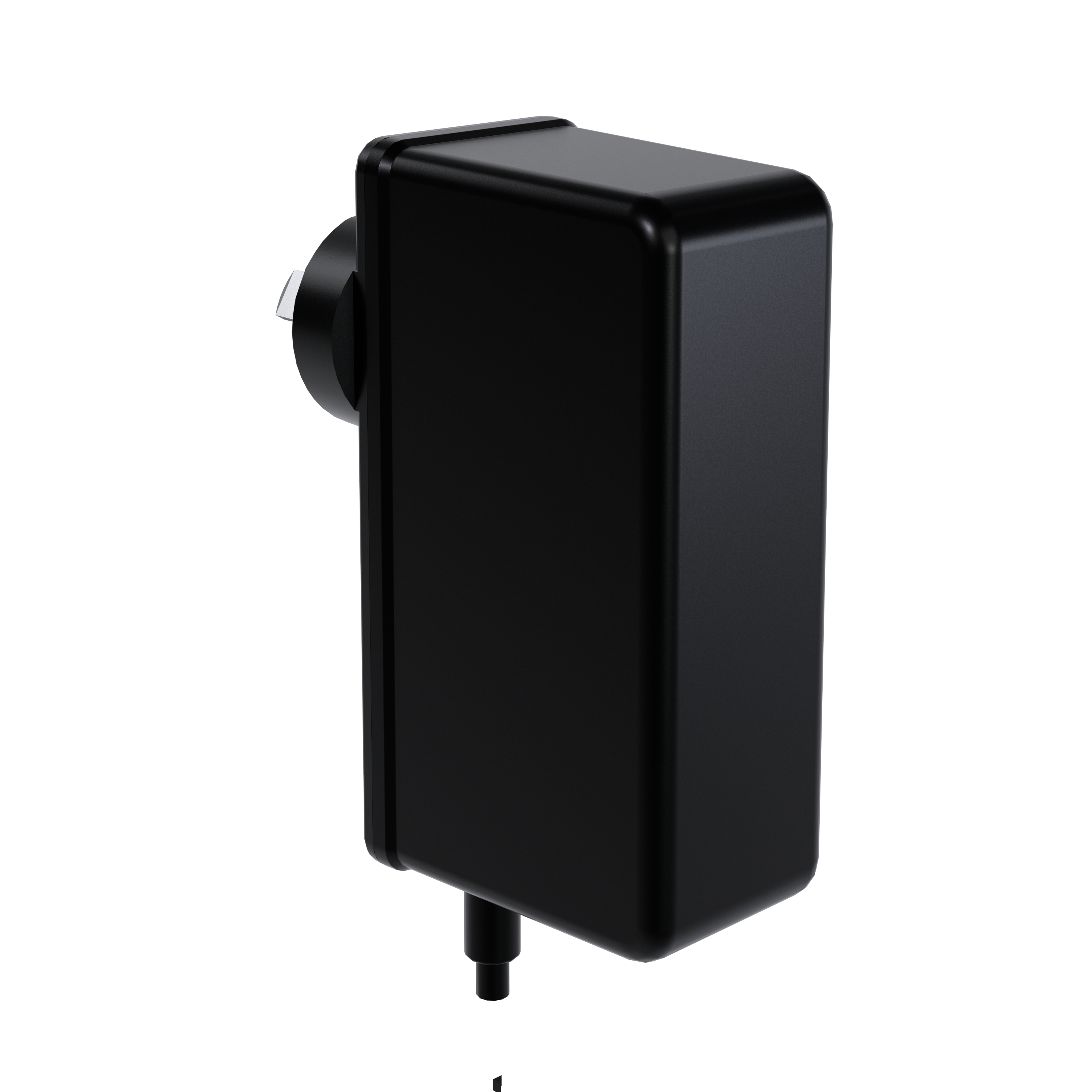

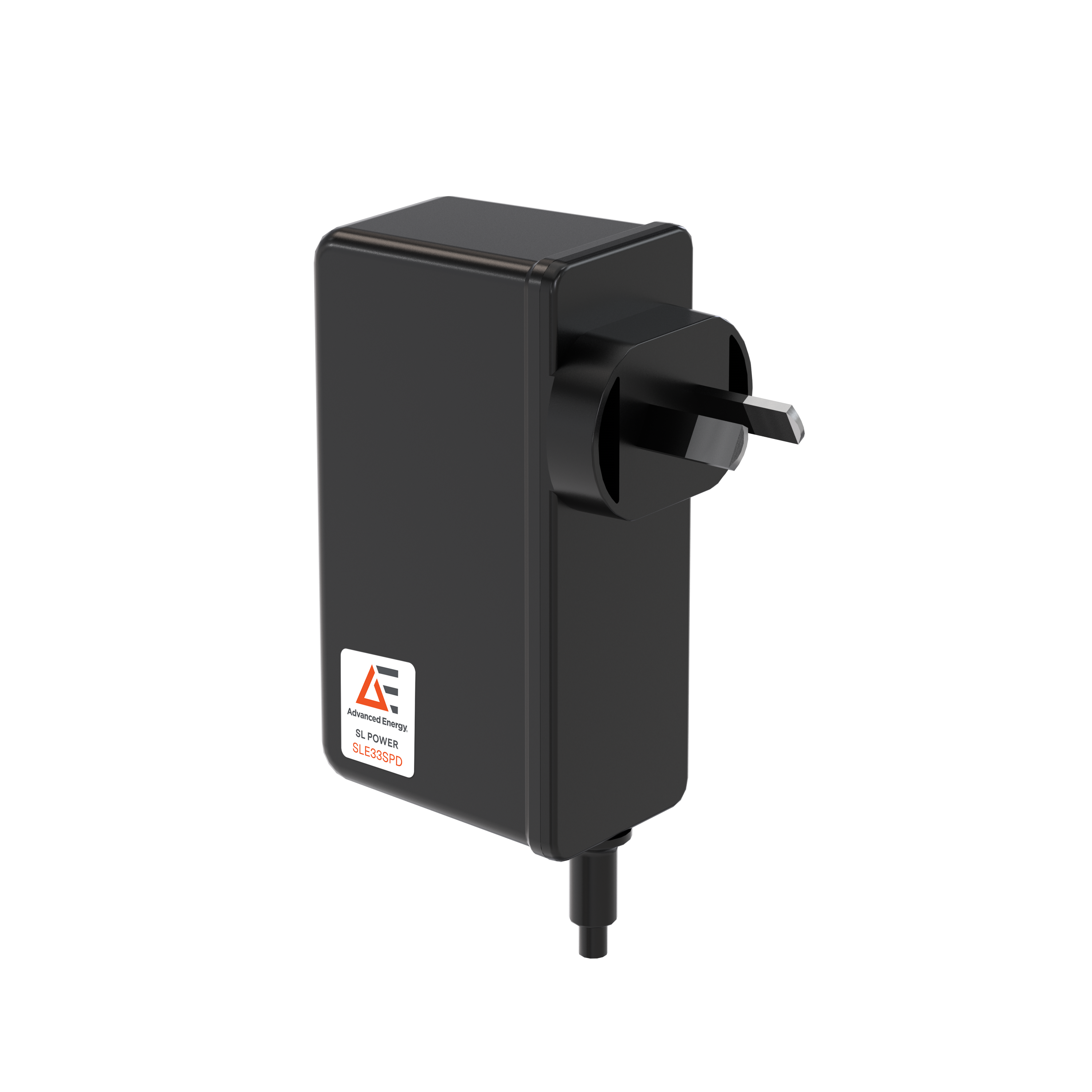

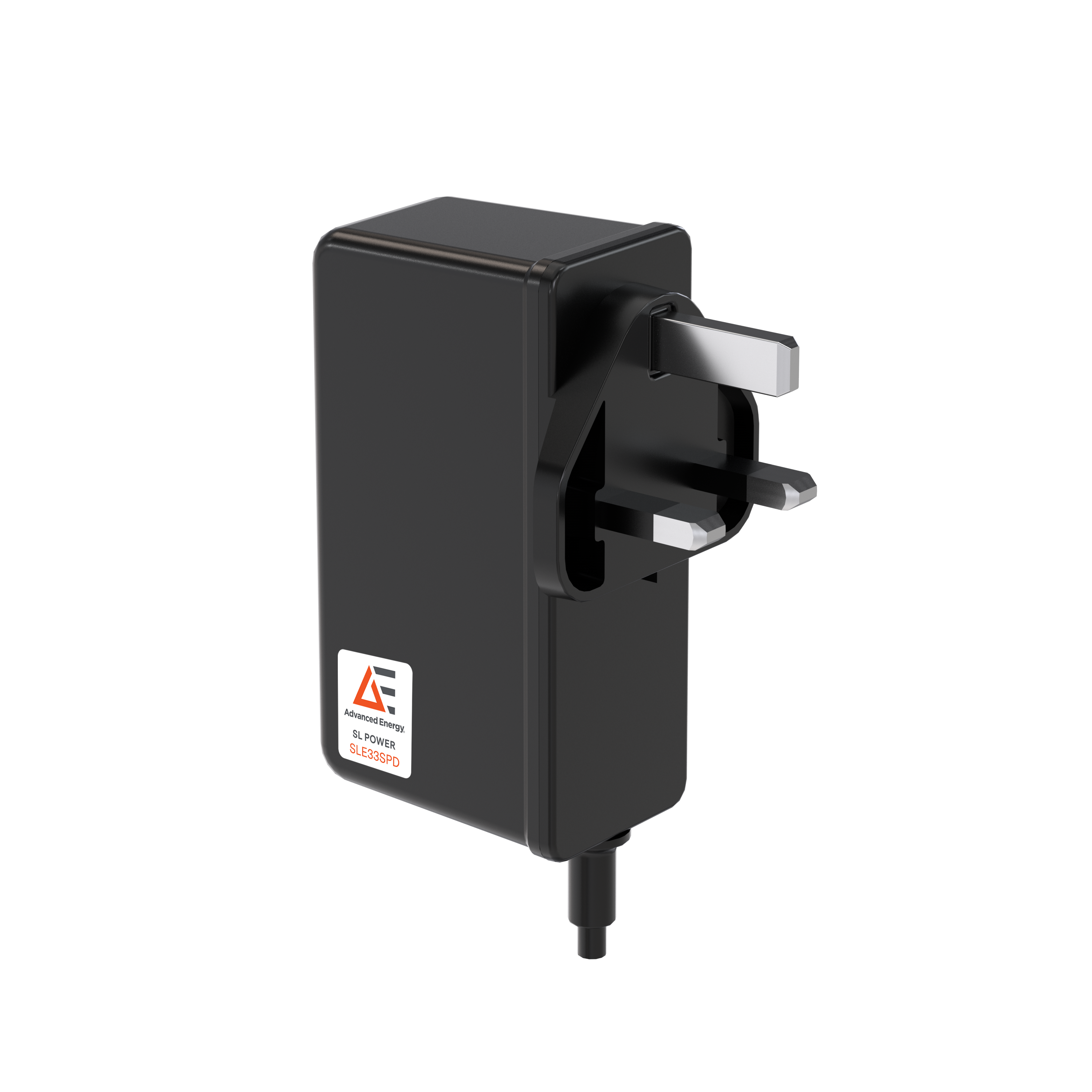

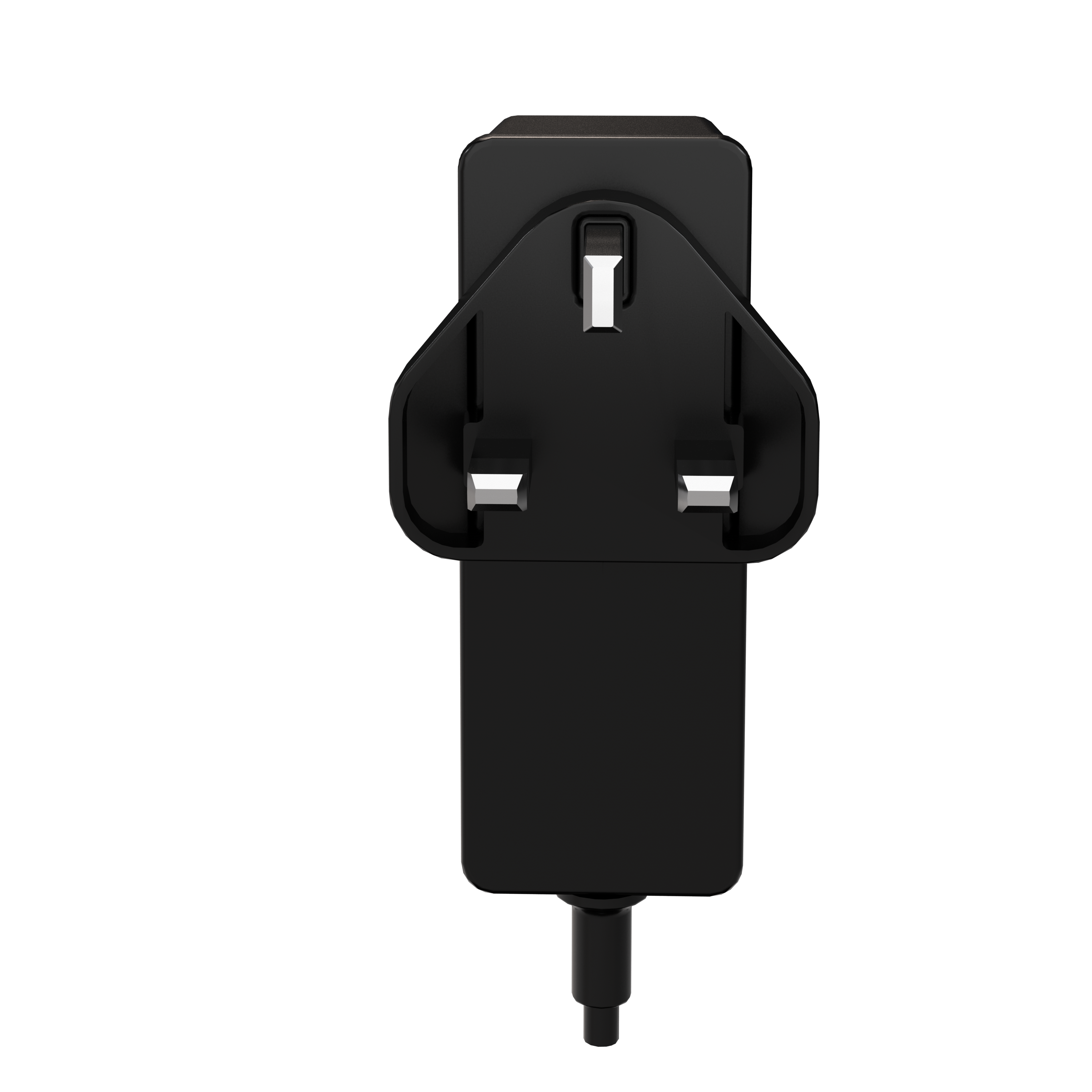

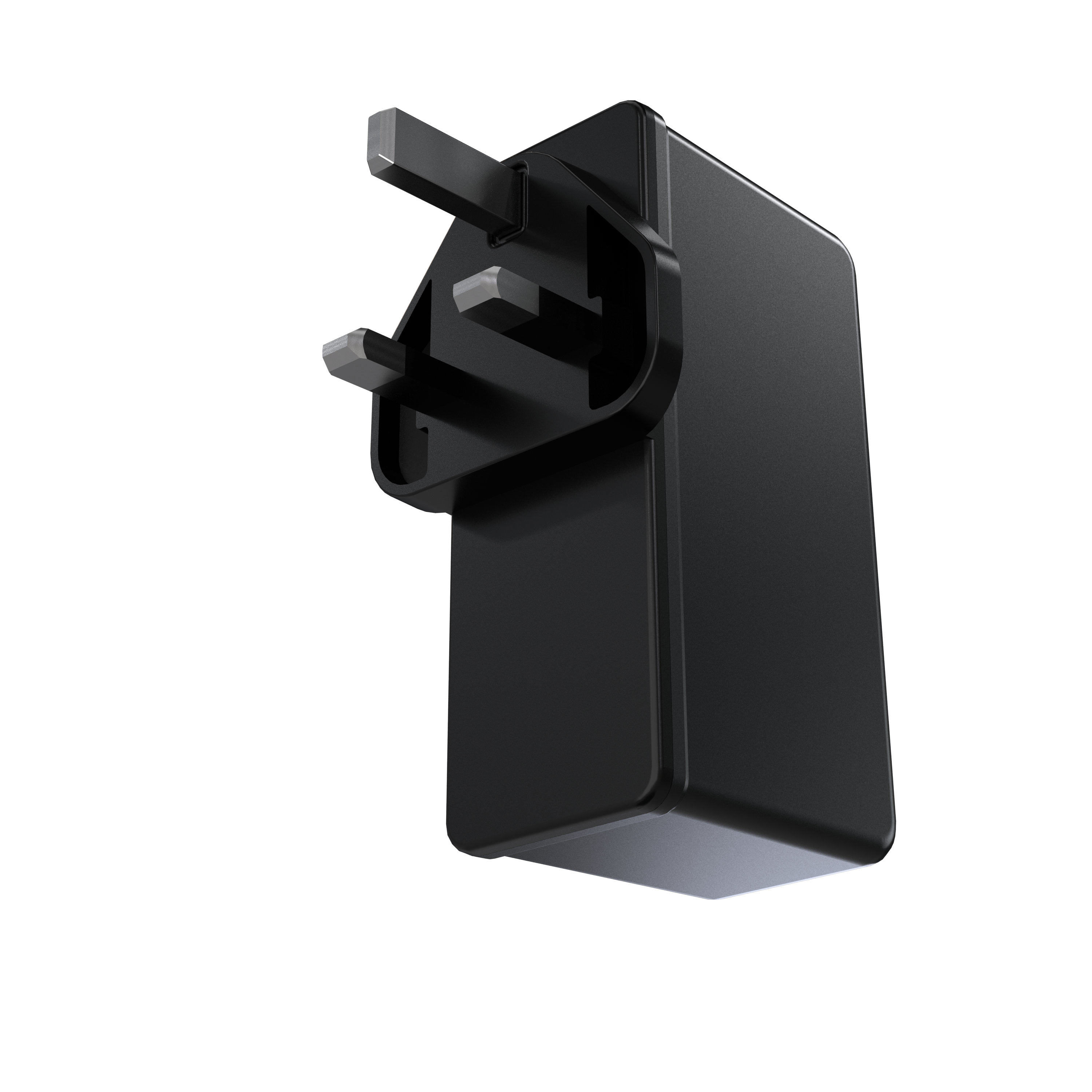

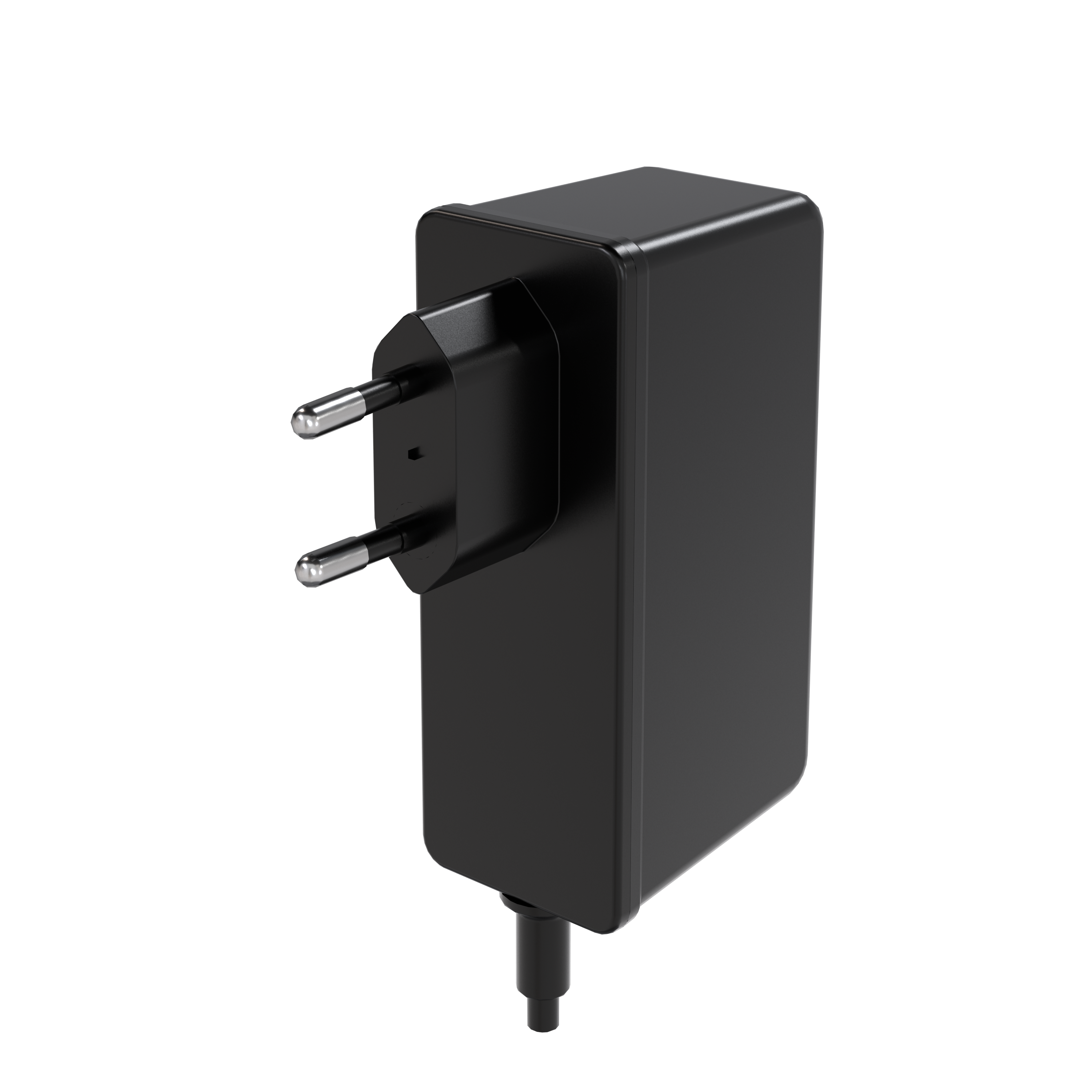

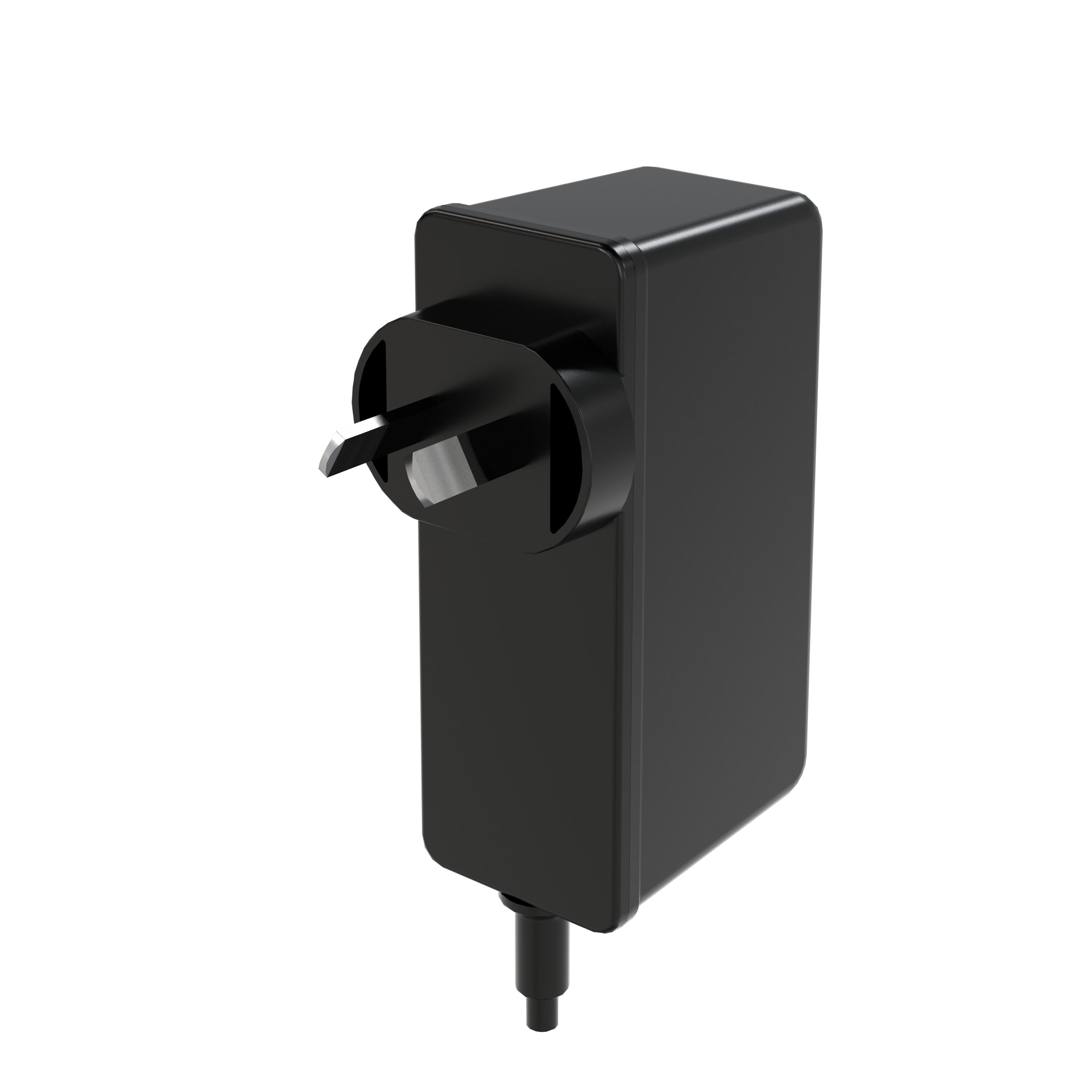

SLE33 Series
Active

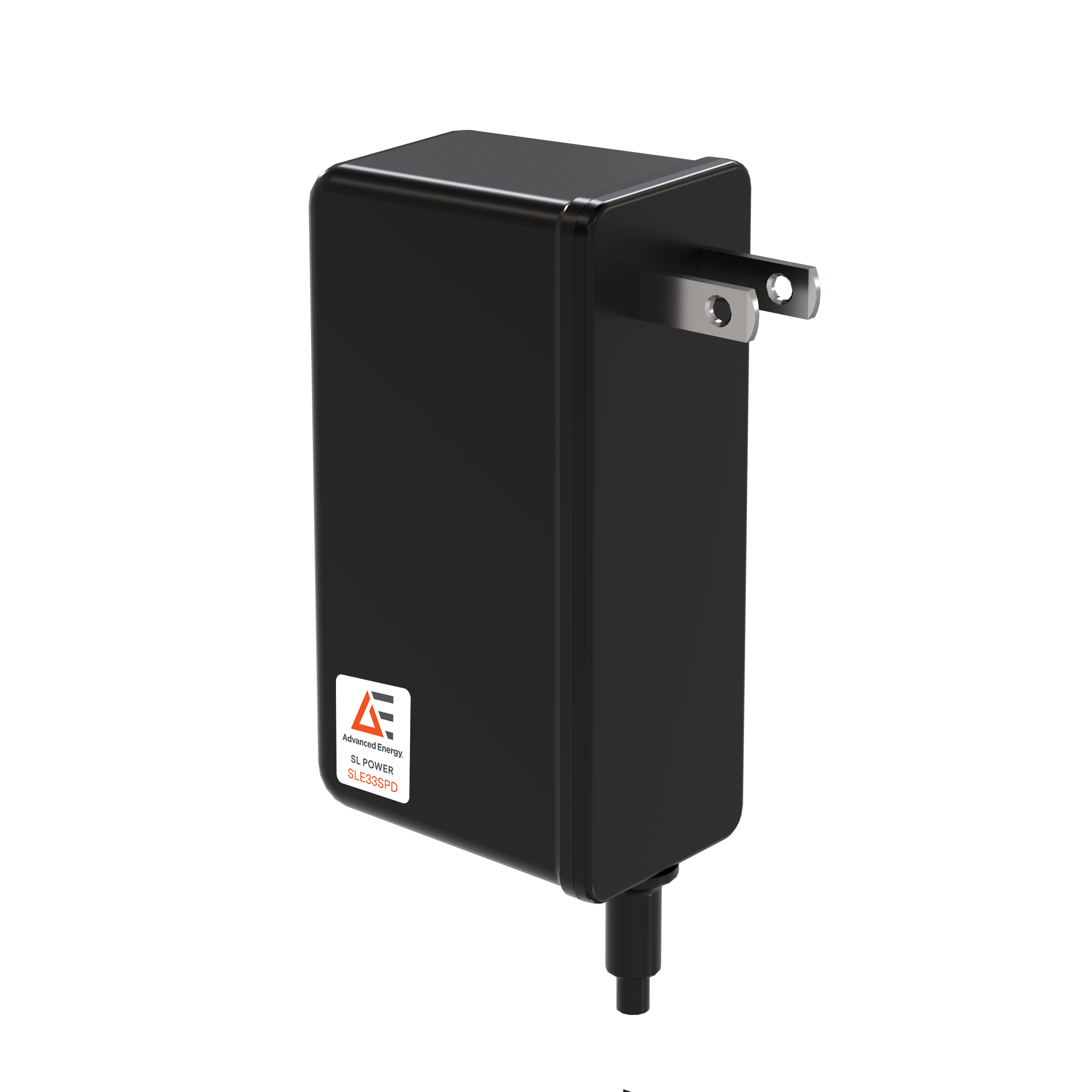

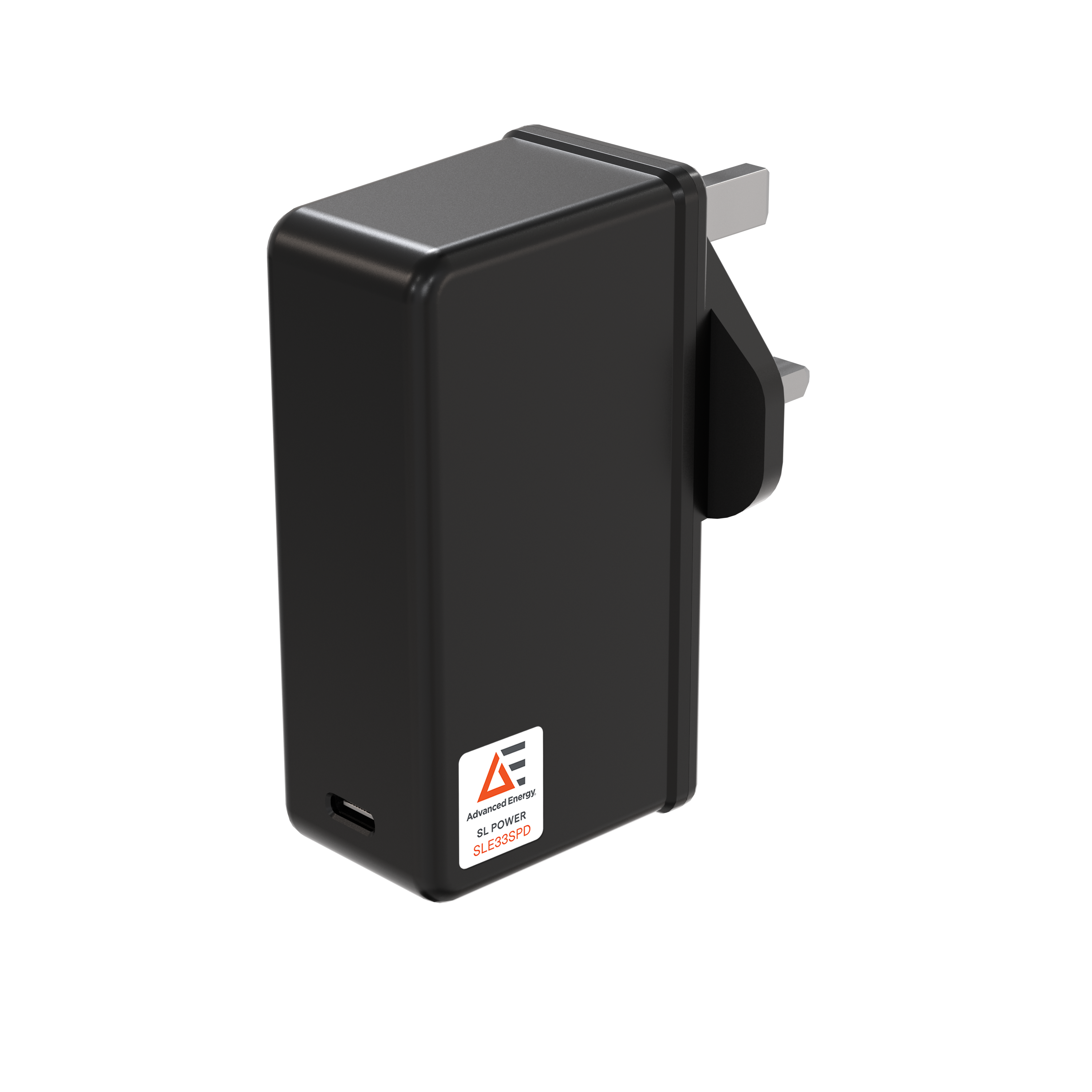

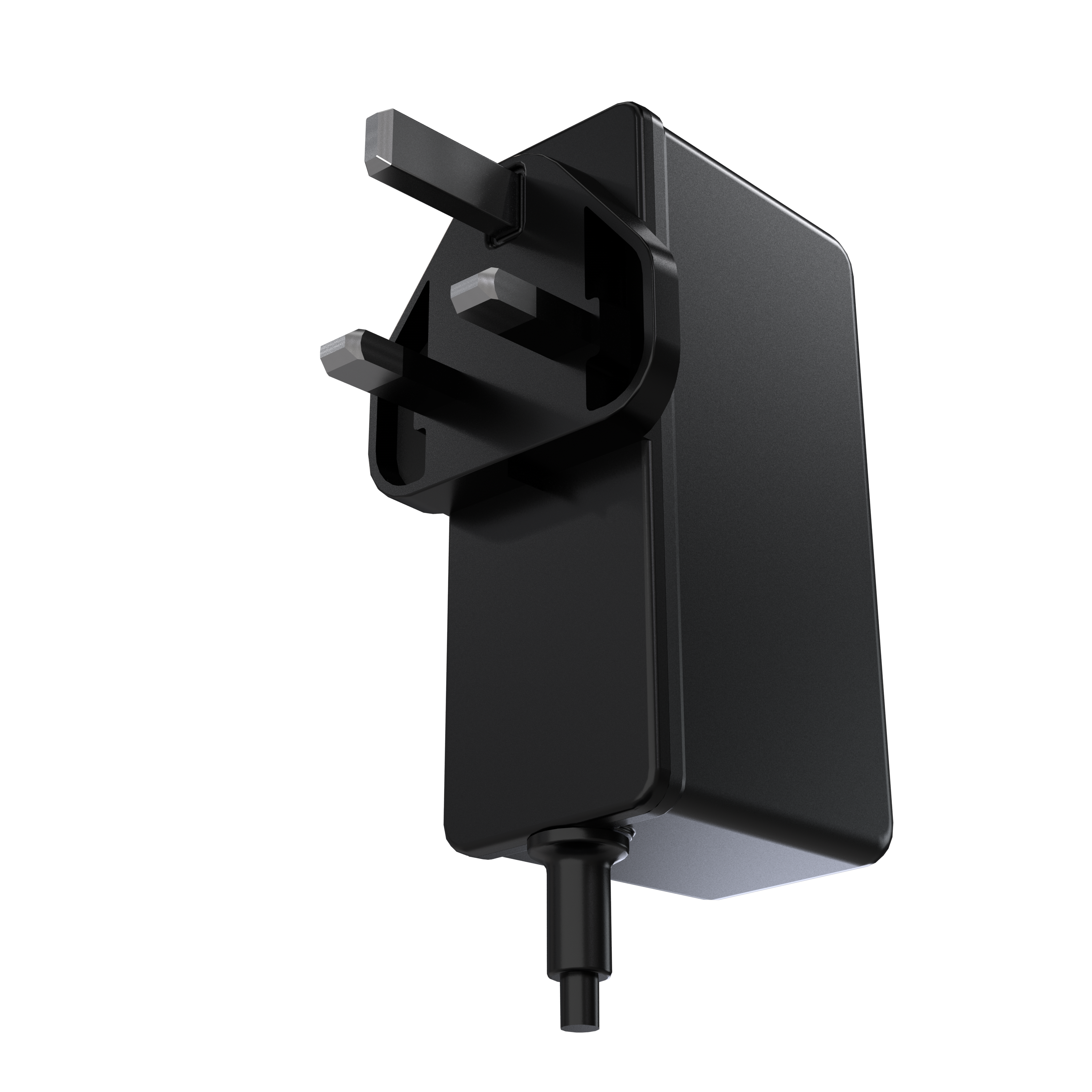

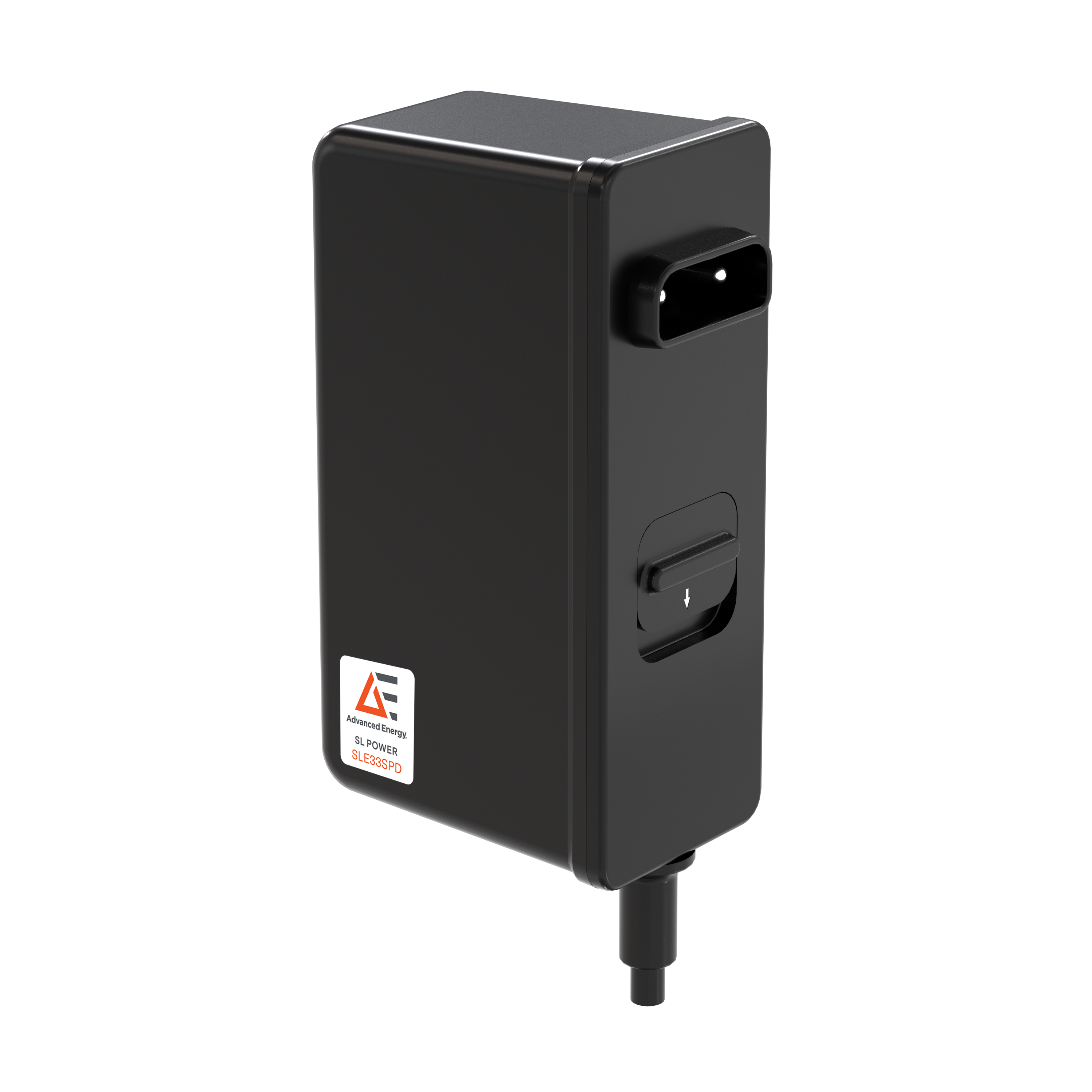

Level VII Compliant 33 W USB-C PD Adapter
Advanced Energy's SLE33 series AC-DC power adapters feature both medical and ITE safety approvals. It delivers up to 33 W output with USB-C PD and meets proposed Department of Energy Level VII and European Code of Conduct V5 Tier 2 Directive efficiency standards. The SLE33 is suitable for medical equipment up to class BF.
特点
• ≤ 0.075W standby power
• USB-C with power delivery output
• 2 x MOPP input to output isolation
• Up to 5000 m operating altitude
• Low leakage current less than 100 μA

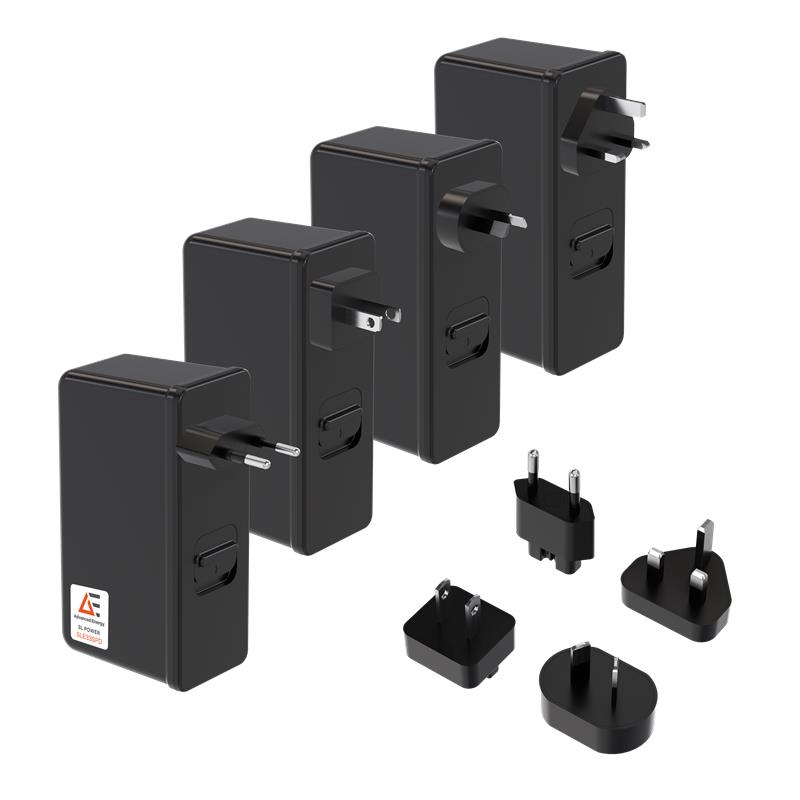

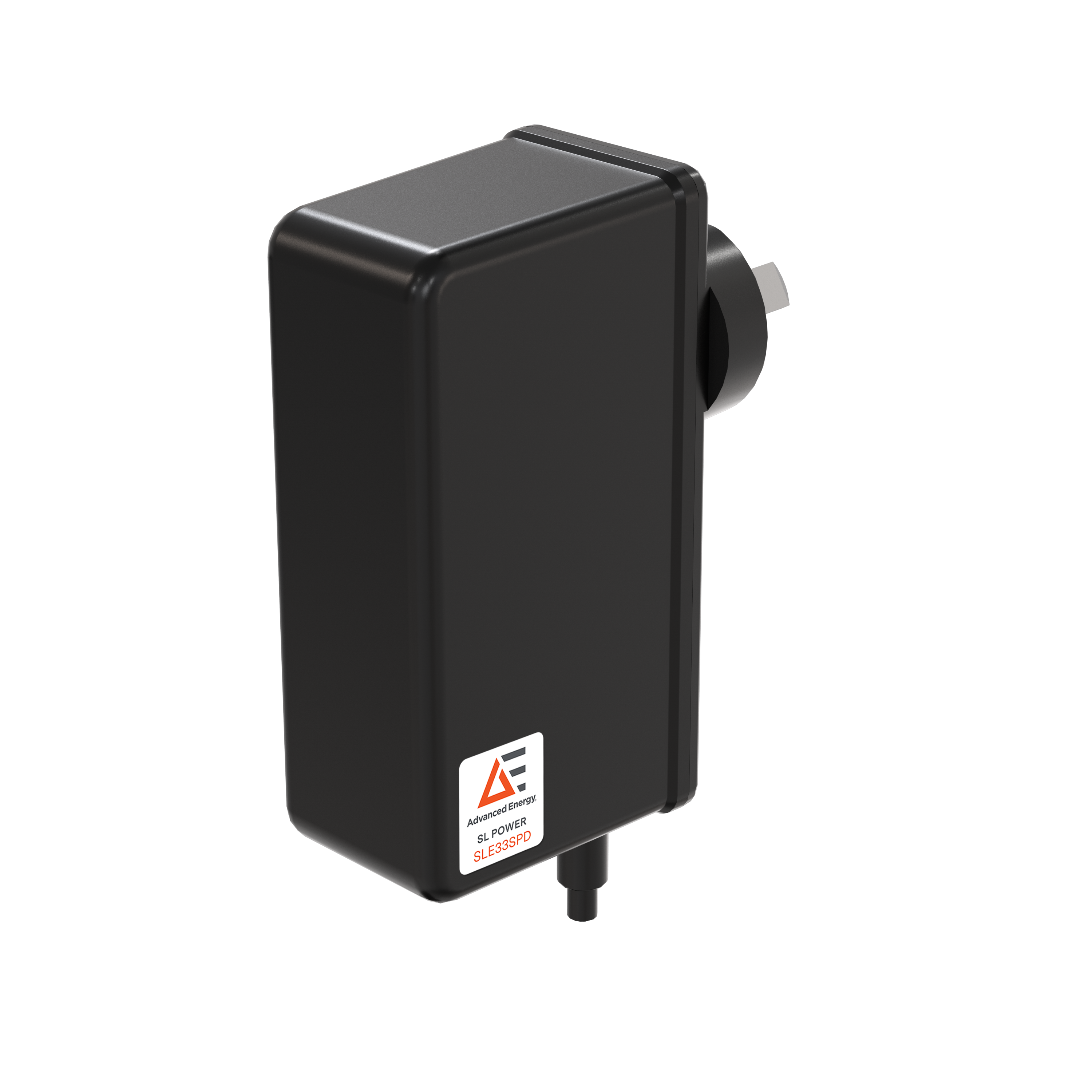

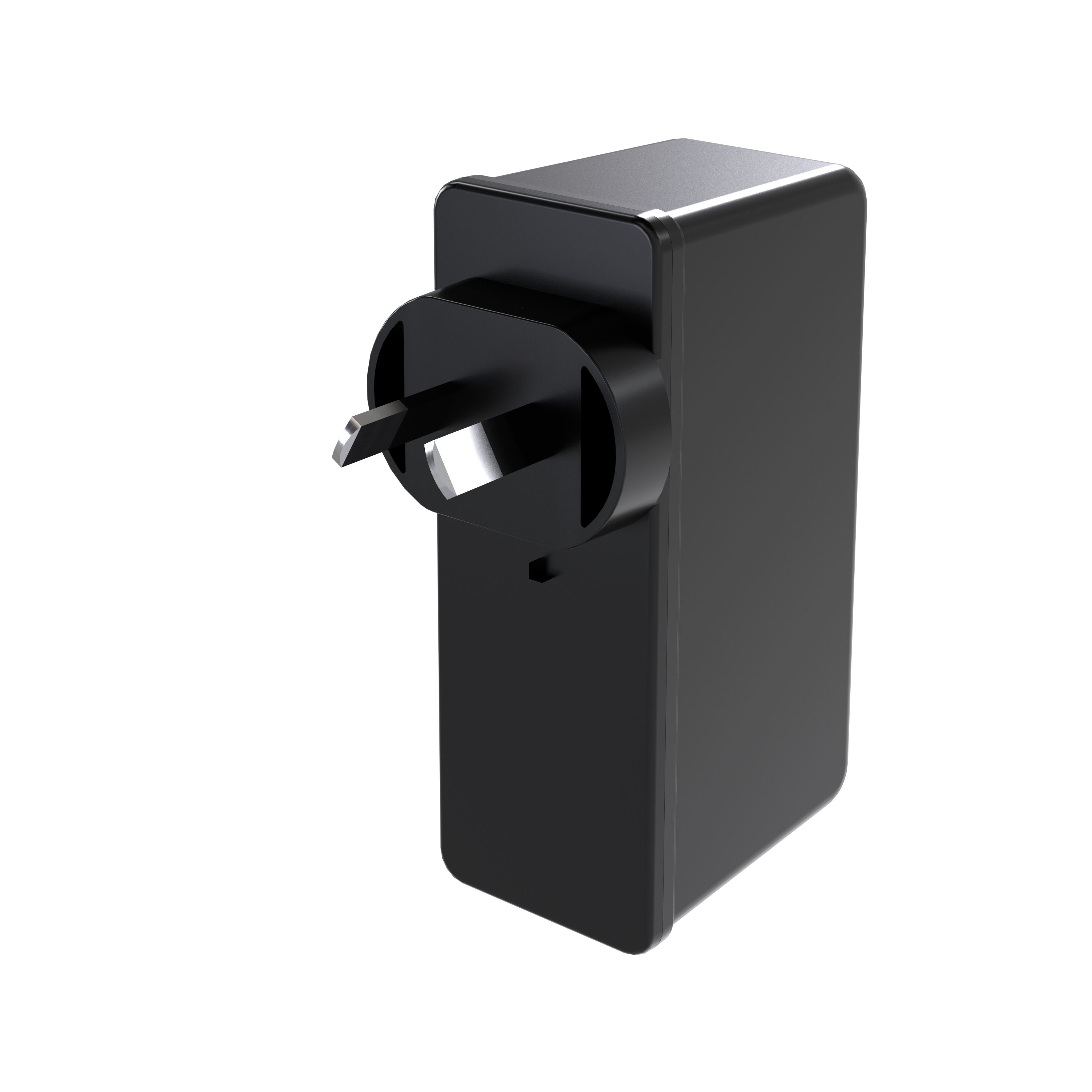

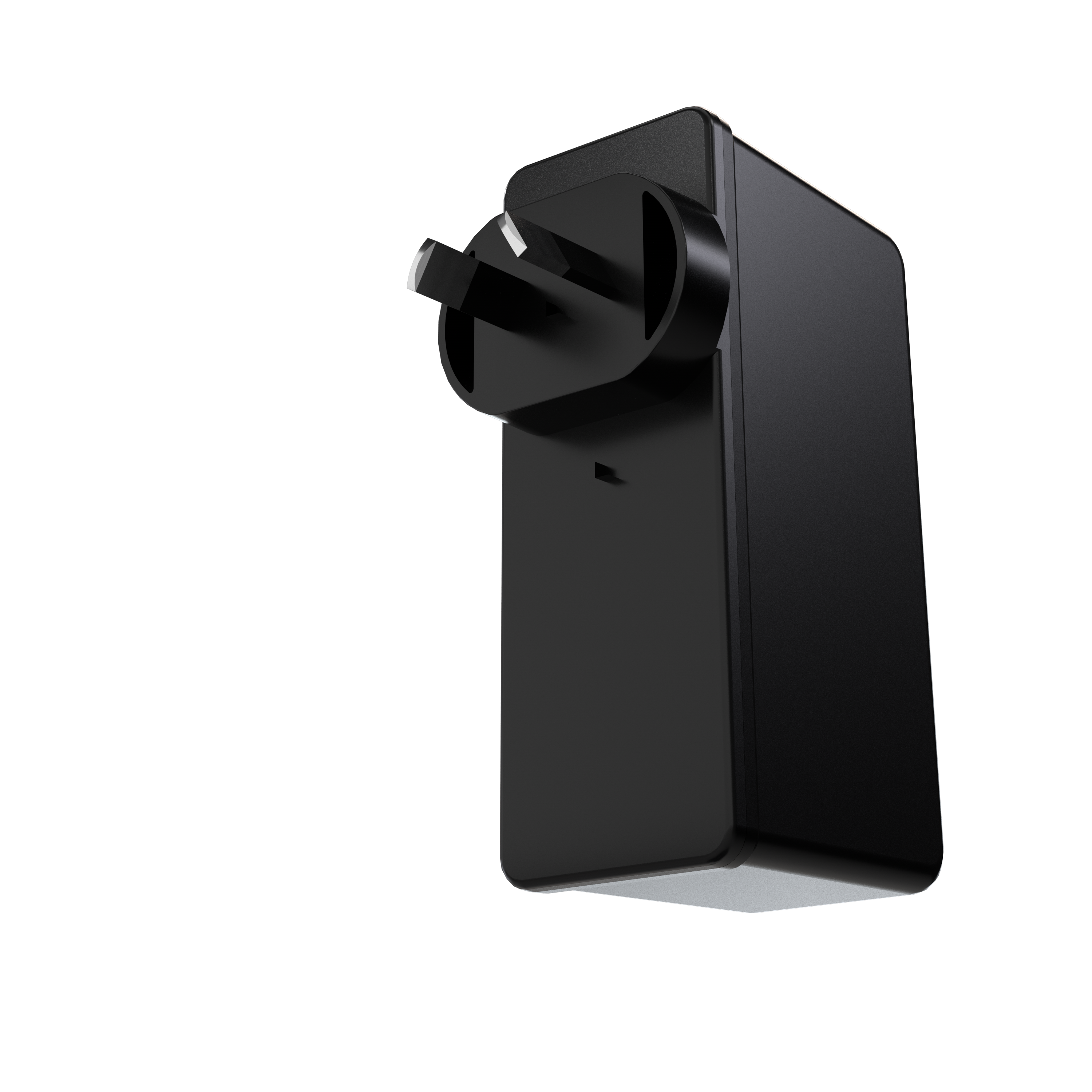

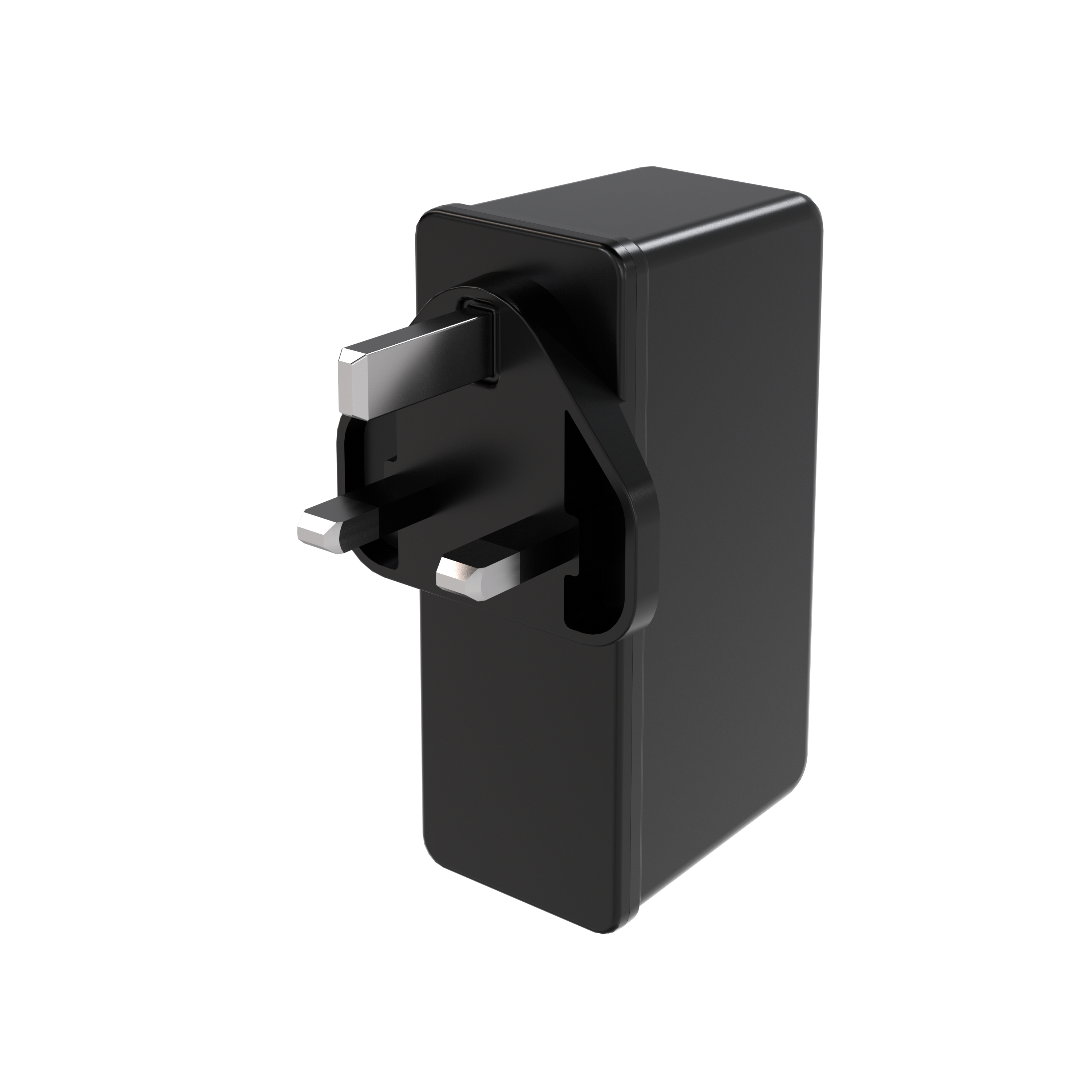

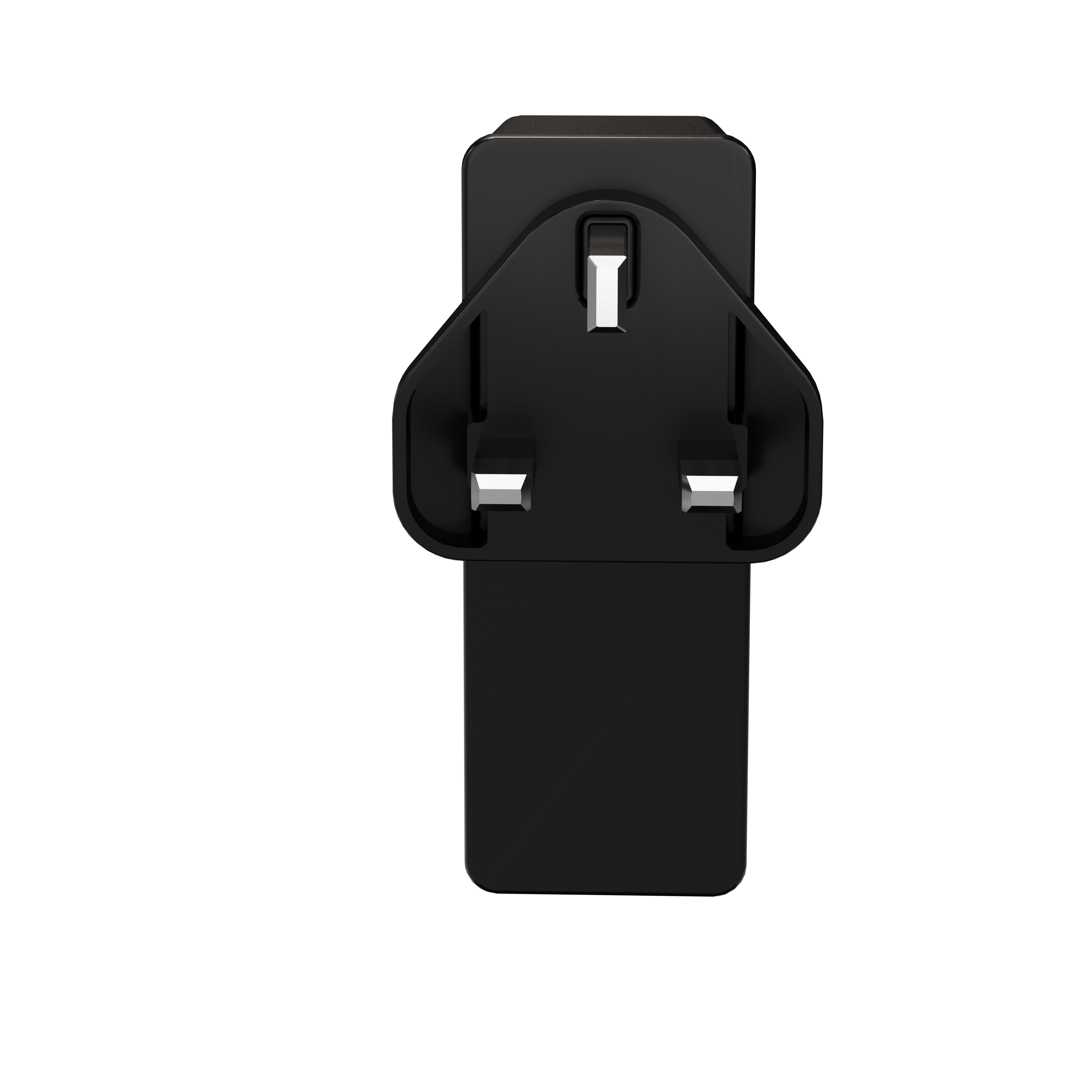

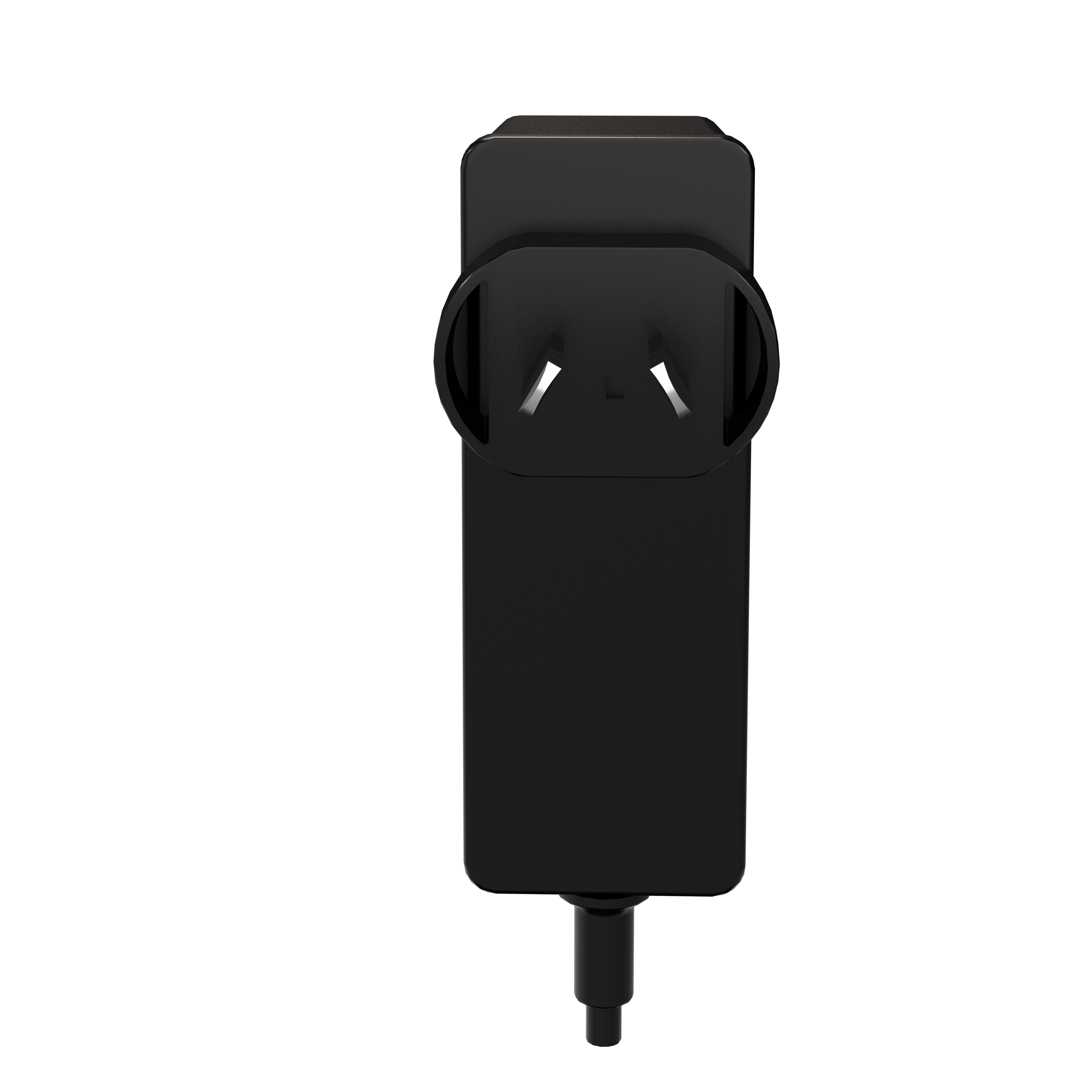

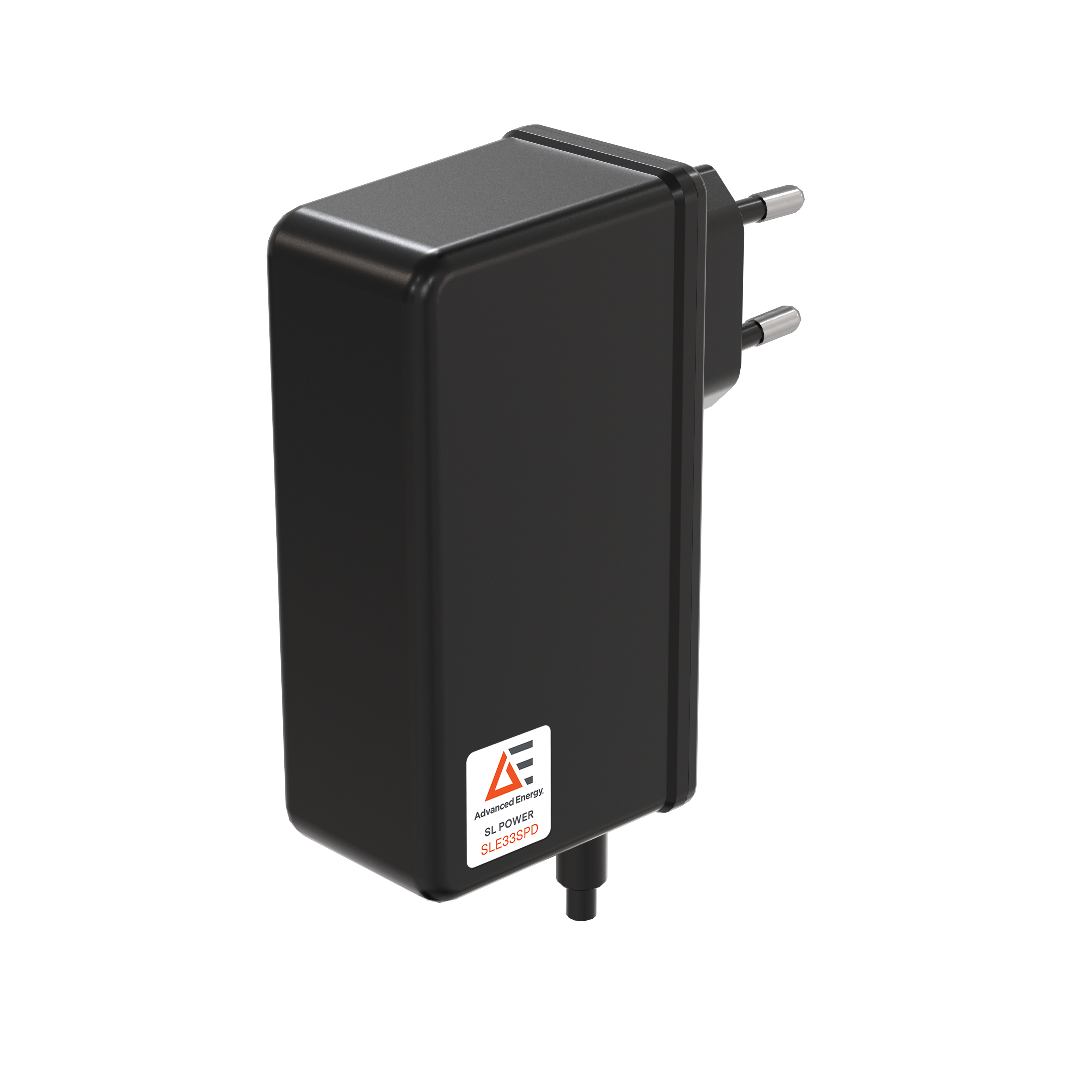

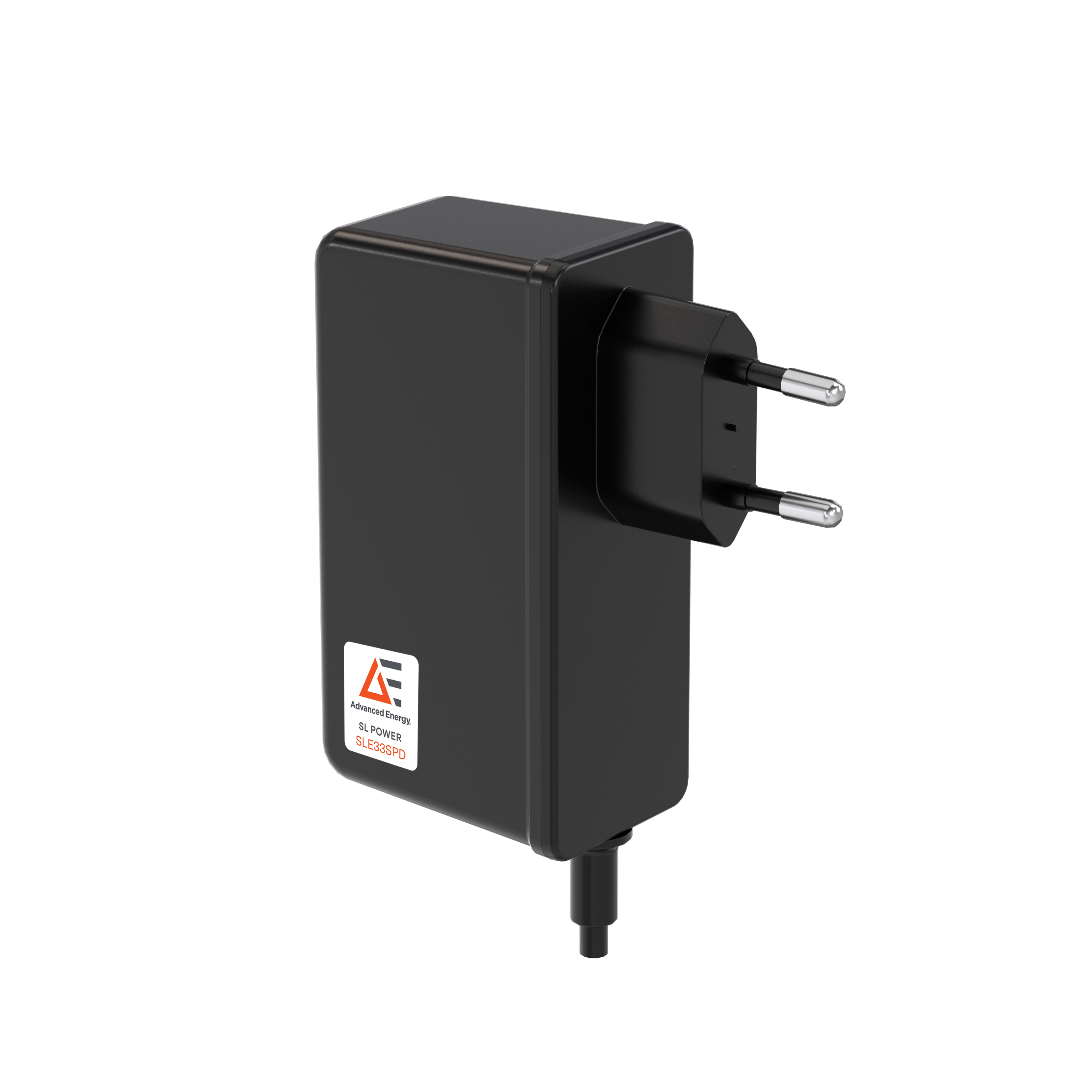

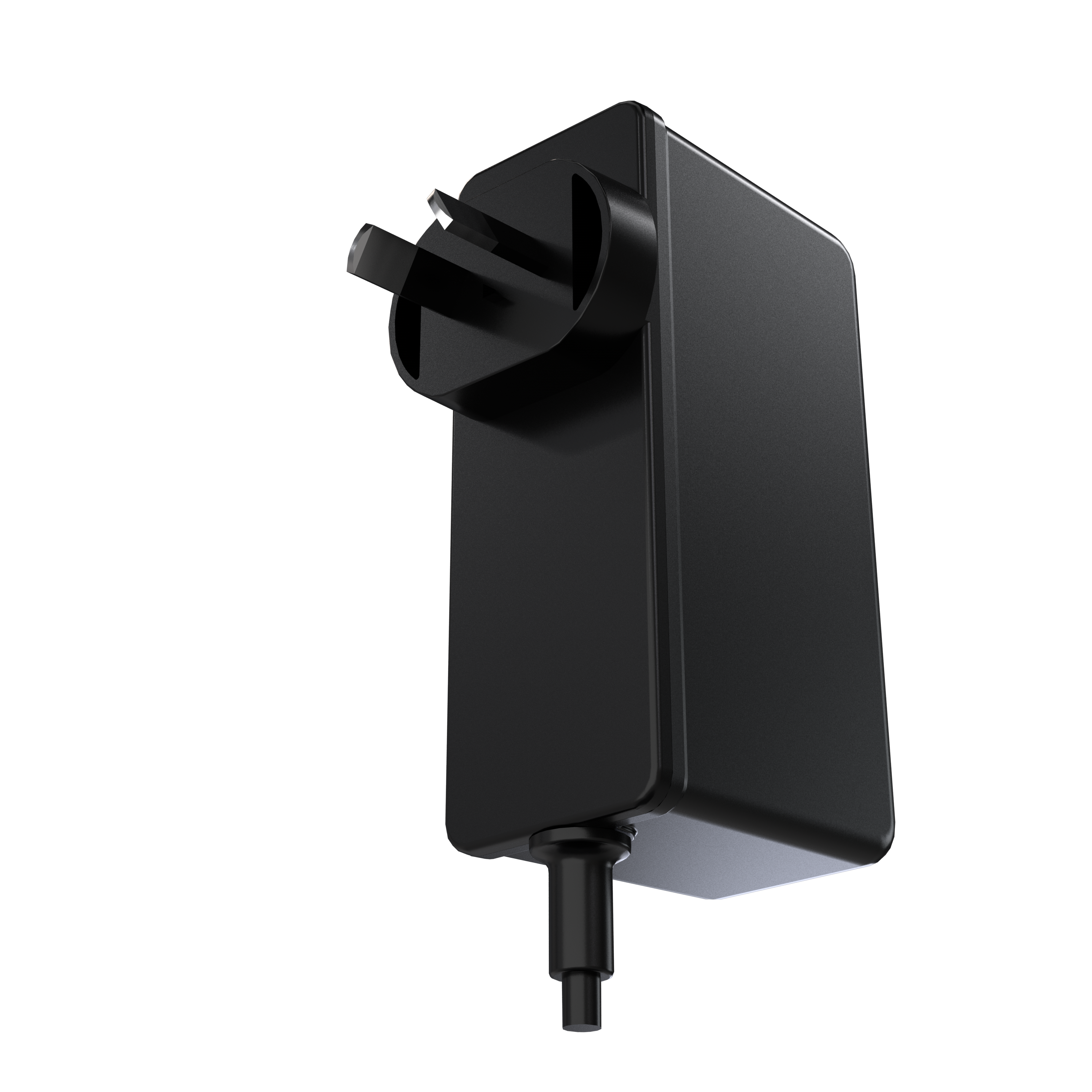

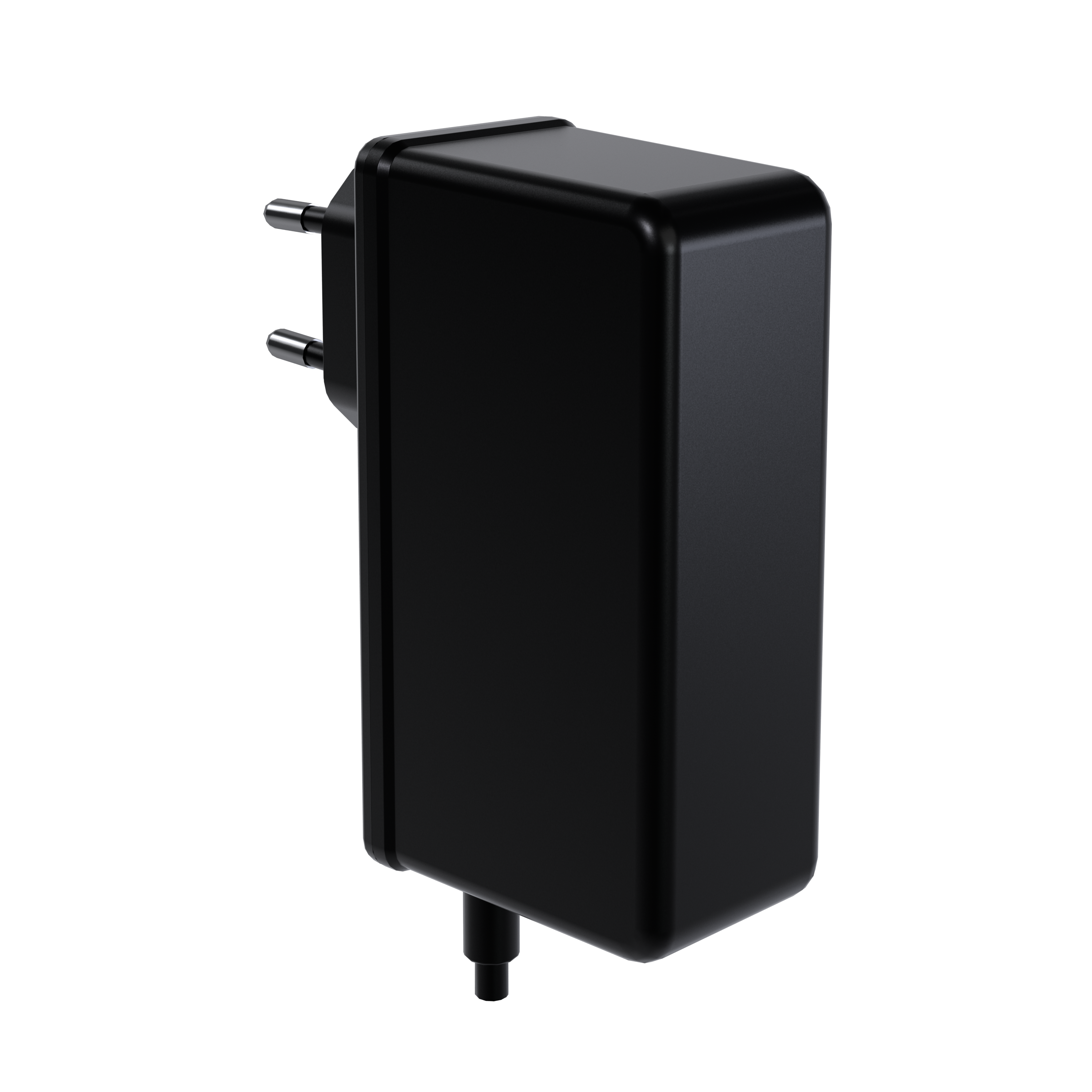

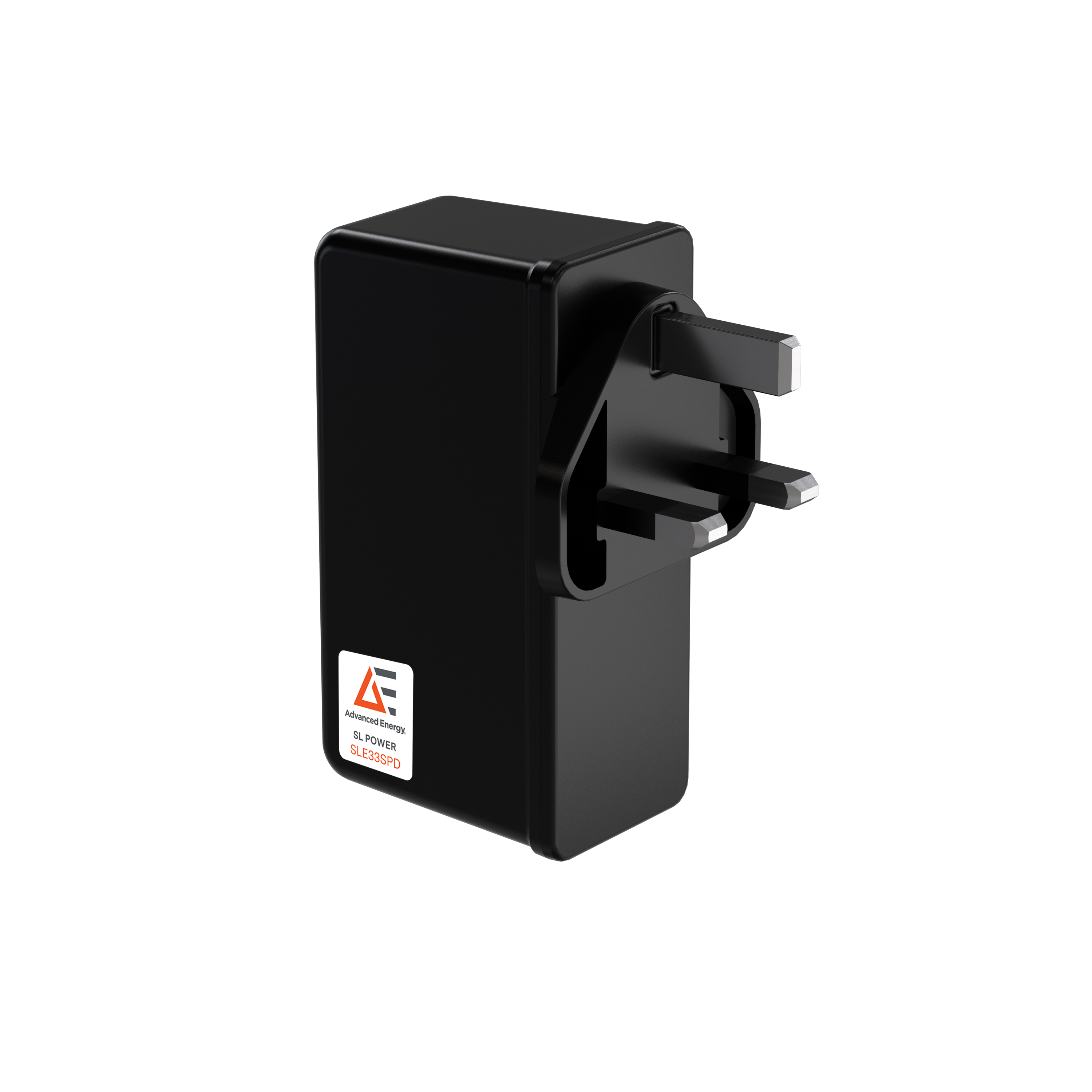

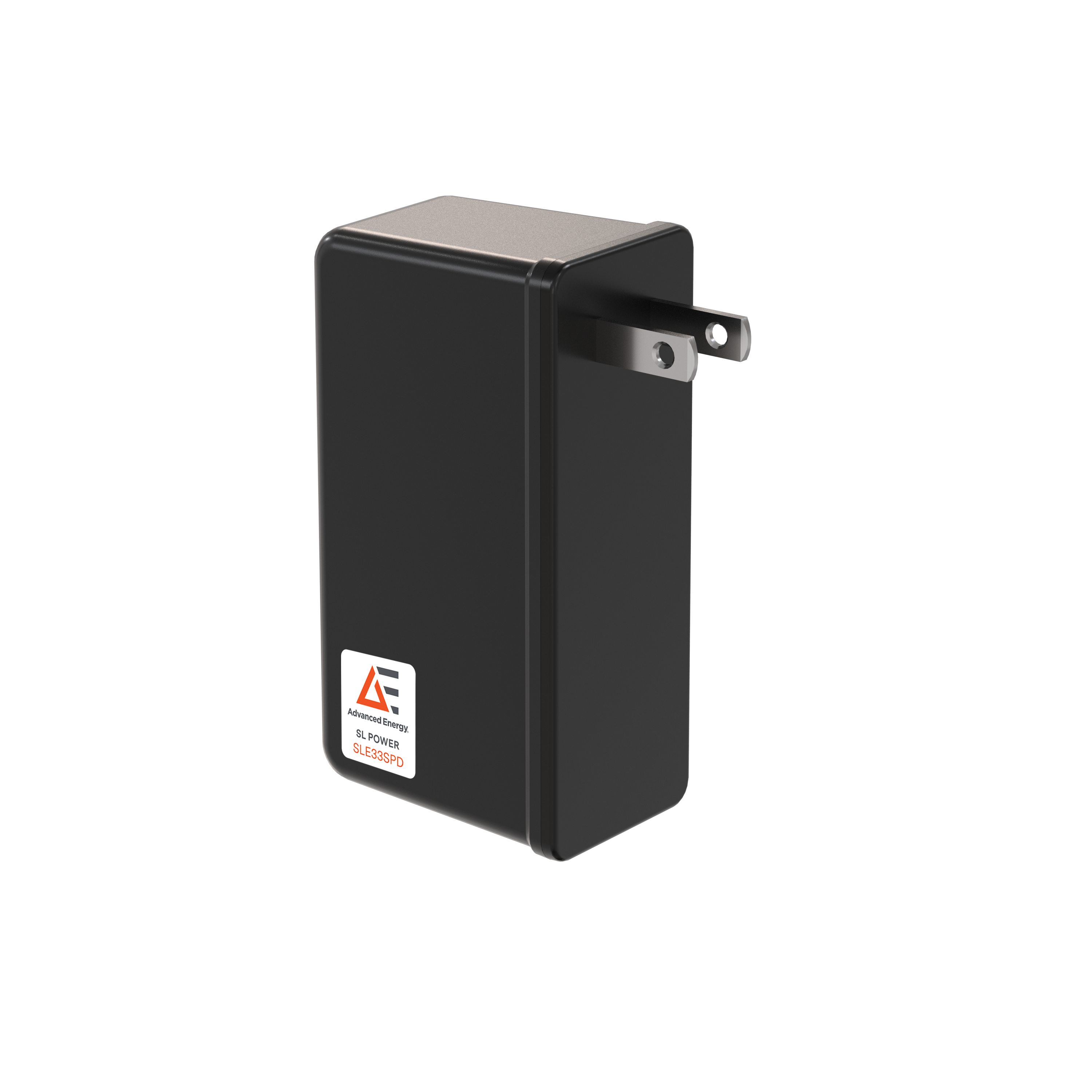

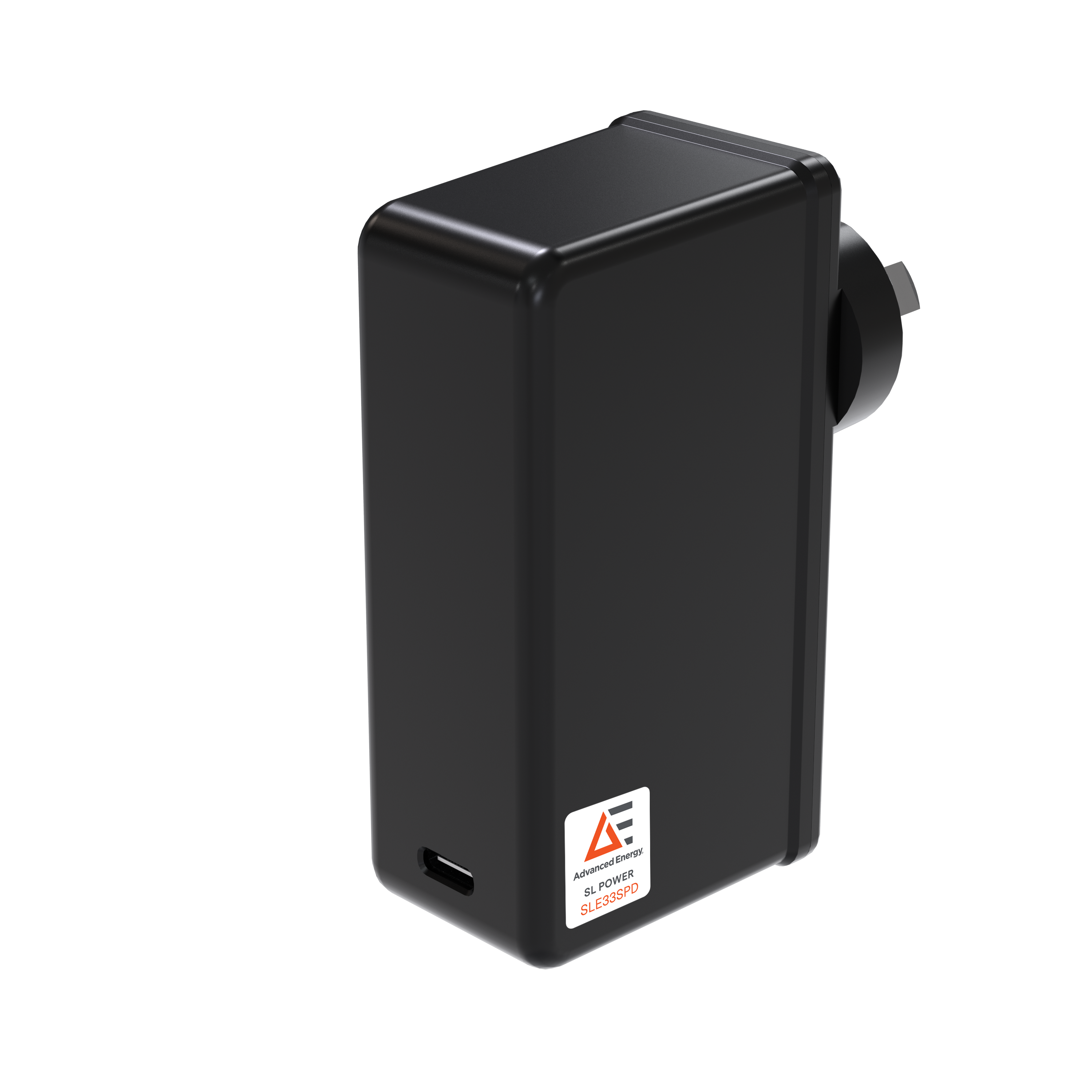

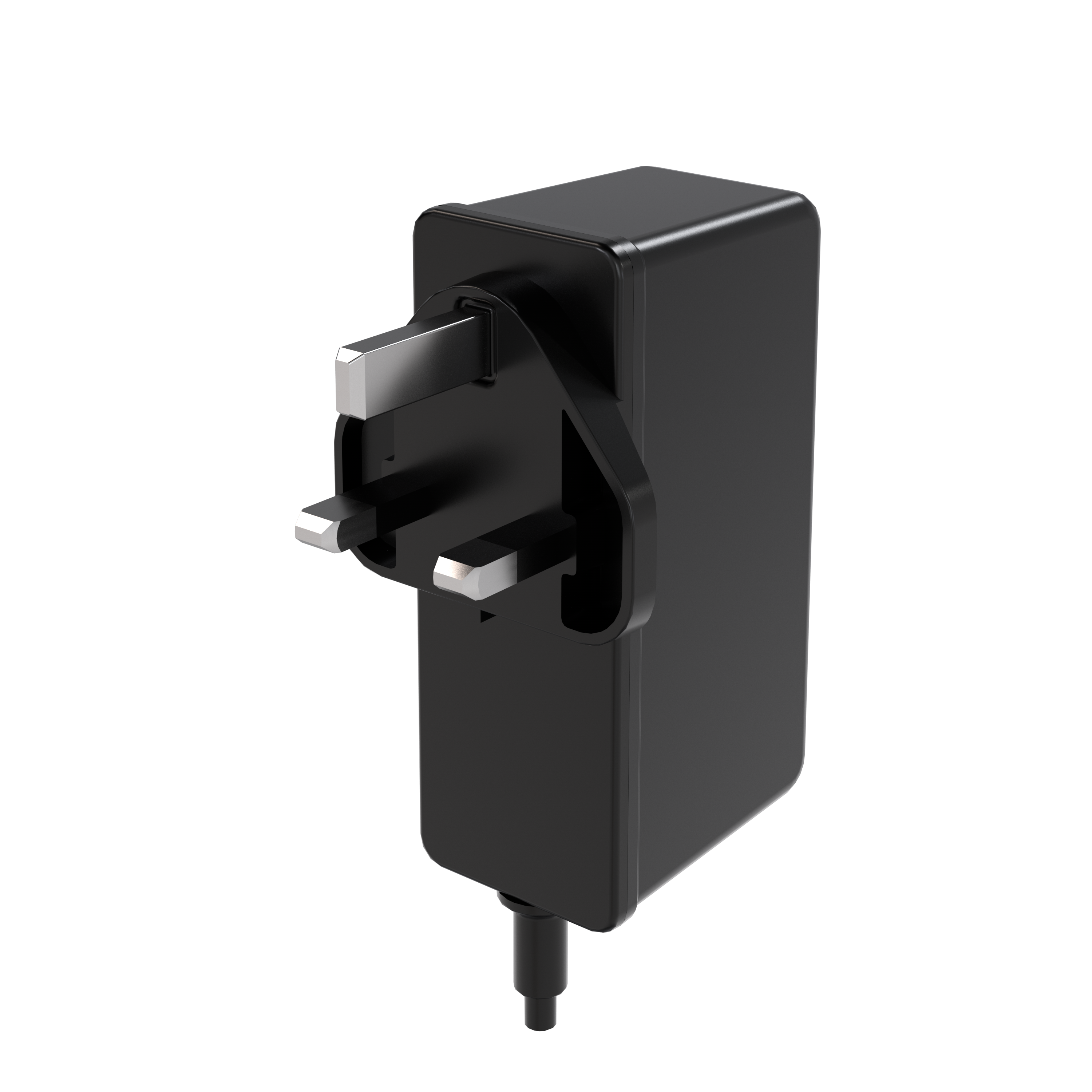

• AC input via interchangeable or fixed blades (class II)
• USB-C with power delivery output
• 2 x MOPP input to output isolation
• Up to 5000 m operating altitude
• Low leakage current less than 100 μA
• AC input via interchangeable or fixed blades (class II)
益处
• Medical and ITE safety certifications
• Suitable for medical equipment up to class BF
• Overvoltage, overcurrent and short circuit protection
• EU CoC V5 Tier 2 compliant
• DoE efficiency level VII
• Medical: IEC 60601-1 ANSI/AAMI ES 60601-1 ITE: IEC 62368-1, UL 62368-1
• Suitable for medical equipment up to class BF
• Overvoltage, overcurrent and short circuit protection
• EU CoC V5 Tier 2 compliant
• DoE efficiency level VII
• Medical: IEC 60601-1 ANSI/AAMI ES 60601-1 ITE: IEC 62368-1, UL 62368-1
规格
| 输出功率（瓦）: | 33 |
|---|---|
| 长度（英寸）: | 3.56 |
| 宽度（英寸）: | 1.32 |
| 高度（英寸）: | 1.89 |
| 安装类型: | Wall mount, interchangeable plug |
| 最小输出电流 (A): | 0 |
| 最大输出电流 (A): | 3 |
| 输出电压范围 (V): | 4.75V to 21V |
