LCM 12 kW Shelves

Active

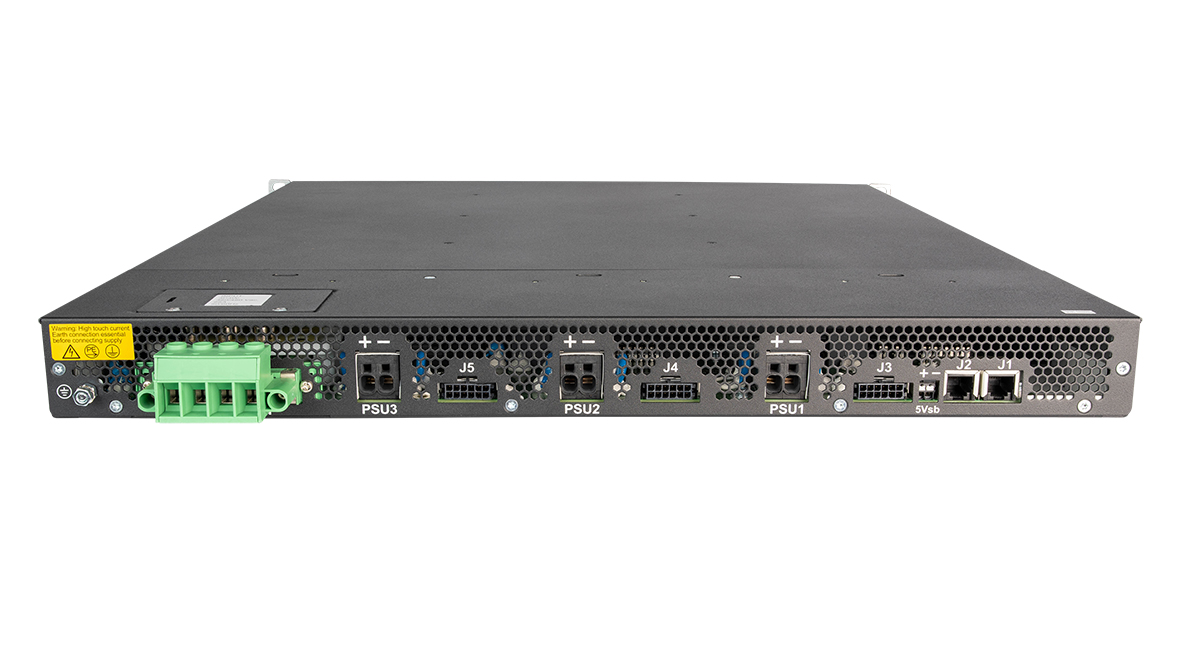

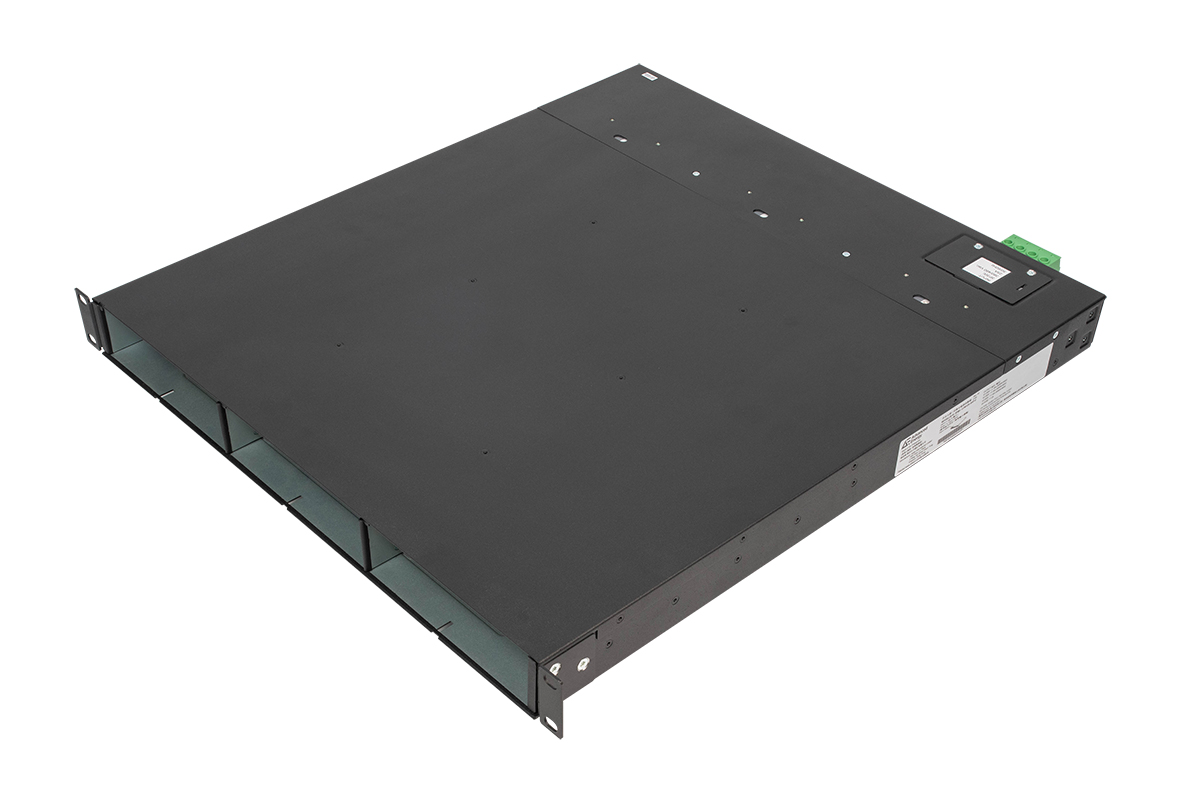

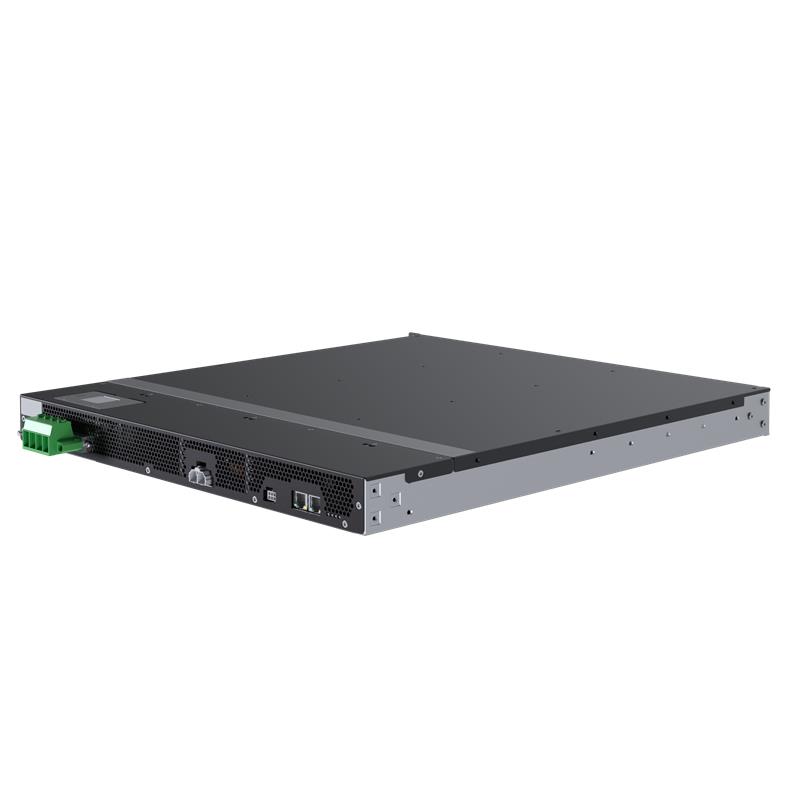

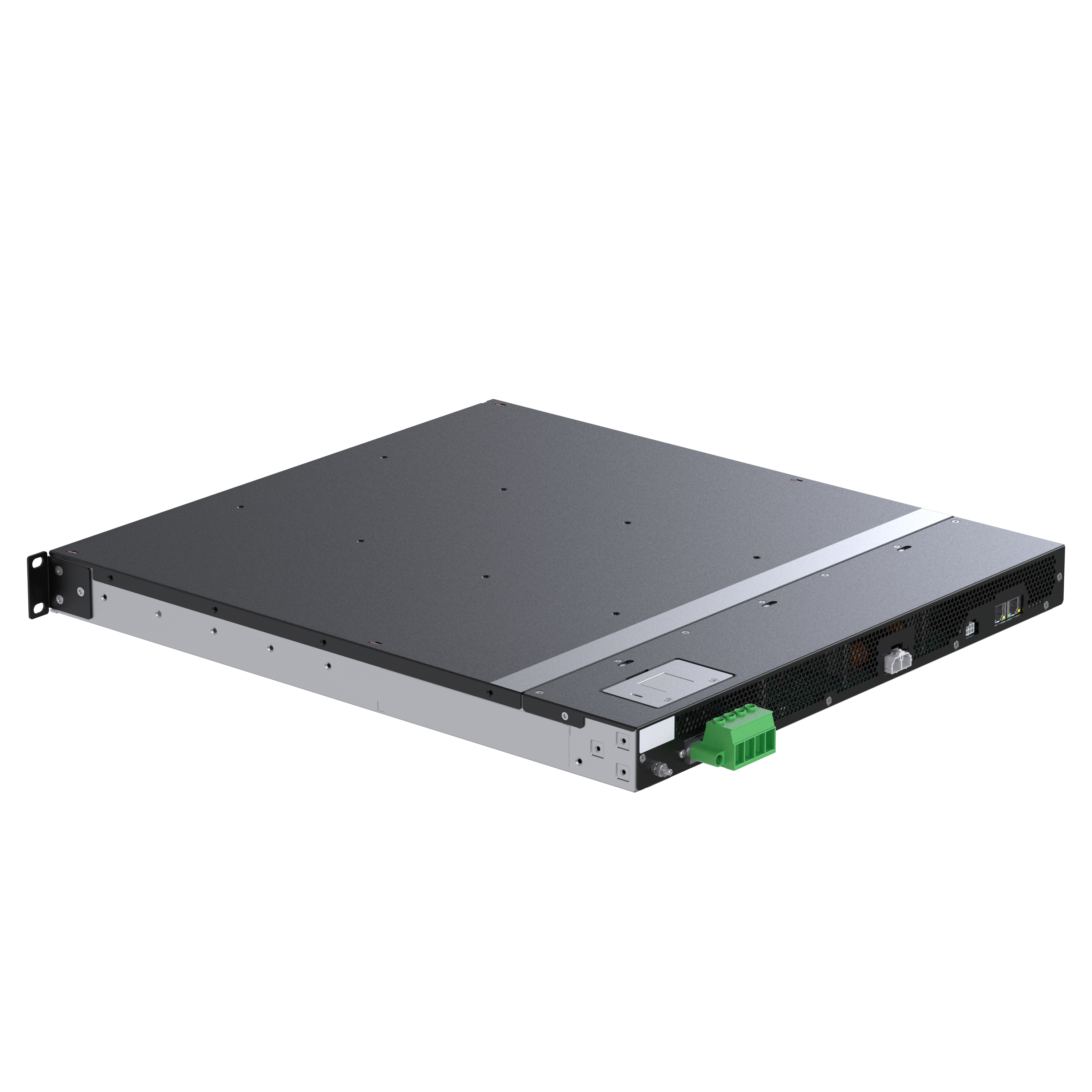

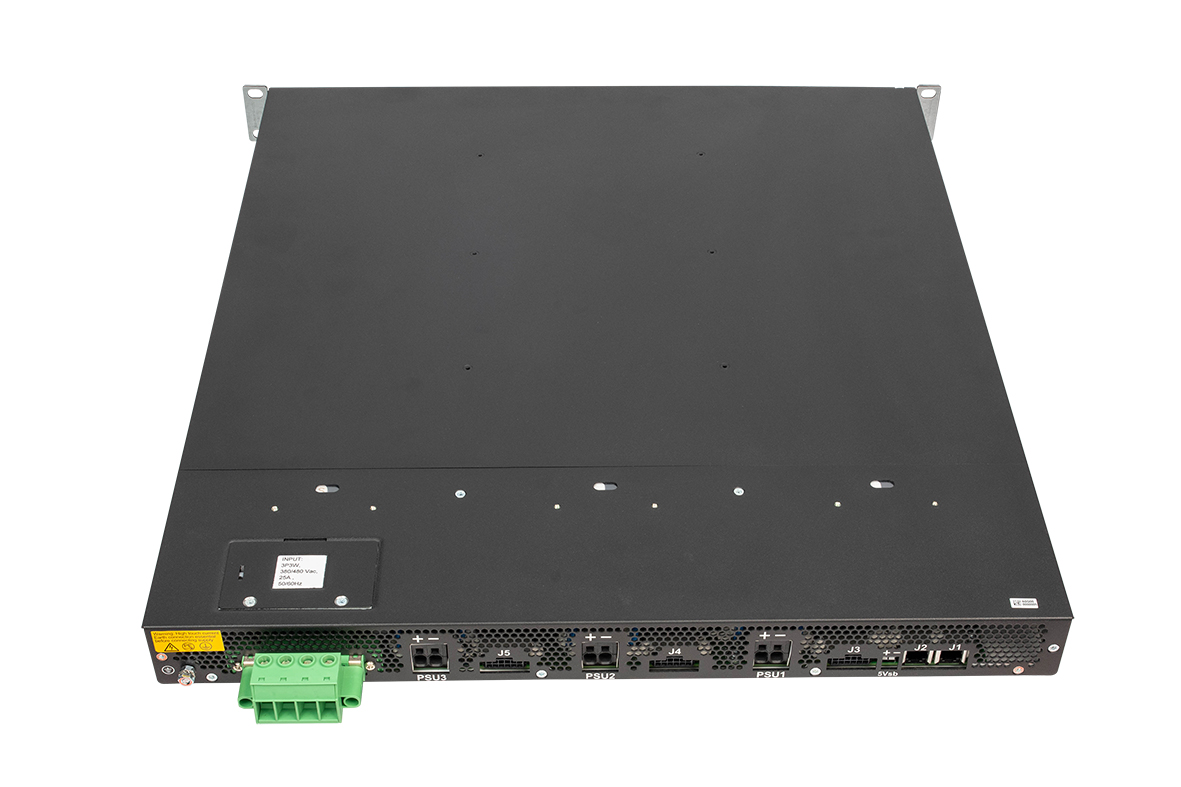

The LCM12K mounting shelf combined with up to three LCM4000HV modules (available separately) provides a centralized current source for medium- to large-scale LED lighting and horticulture applications. This 19″ 1U rack-mount shelf enables hot-plug replacement of the 4 kW modules, providing high reliability and simplified maintenance. A unique design allows all standard AC inputs 208 to 600 VAC from single- to three-phase sources. The output of each 4 kW block provides a flicker-free current source from 0 to 16 A, at a 100 to 300 VDC output voltage. High nominal operating voltage reduces the cost of standard wiring and increases efficiency with minimal voltage drop over long distance.

特点规格 Stock Check 技术文档 Support

特点

True "hot plug": Enables power module removal and installation with utility power on
4000 W output power per power module
Input range: 187 to 264 VAC; 311 to 528 VAC single or three-phase
Harmonics meets IEC 61000-3-12 requirements
Parallel shelf versions: operation in N+1 redundancy up to 8 kW
Low standby power: 35 W max at 180 VAC
Nominal output voltage: 250 VDC; series type shelves operation up to 900 VDC
Output voltage adjustment accuracy: ±0.5% on nominal (digital); ±1% (analog)
Analog control: 0 to 10 VDC; 0 to 24 VDC; or digital control using MODBus

益处

Minimized maintenance
Redundant backup for high reliabiity
Easy scaling (module/shelf/rack)
DSP controlled
Five-year warranty
Industrial safety
Supports AEI iTS and IHLC
Wide input voltage range
Input fusing: both lines fused
Expandable digital communication using external AEI comm adapters
Voltage range setting parallel or serial

规格

输出功率（瓦）:	12000
长度（英寸）:	21.1
宽度（英寸）:	19
高度（英寸）:	1.72
安装类型:	19" EIA
最小输出电流 (A):	0
最大输出电流 (A):	48
输出电压范围 (V):	180-660
最小输出功率（瓦）:	0
最大输出功率（瓦）:	12000
Minimum Input Voltage (V):	180
最大输入电压 (V):	528
保修期（年）:	5
