Powering Medical Device Performance: A Guide to Medical Power External Adapters
已发布 五月 06, 2025 由 Michael Acepcion
Choosing the right medical power adapters to ensure device reliability and industry compliance
Blog Summary
1. Importance of Medical Power Adapters: Medical-graded external power adapters are crucial for the optimal performance and safety of medical devices, converting AC to DC and ensuring stable, reliable power for various medical applications.2. Compliance with Safety Standards: These adapters comply with global safety standards like IEC 60601, featuring low leakage current and extra insulation to protect patients and operators from electrical hazards
3. Choosing the Right Adapter: Selecting the appropriate adapter involves considering voltage, power rating, safety features, and compatibility with the device. This ensures the functionality, safety, and longevity of medical equipment.
In medical technology, every component plays a role in the reliability and safety of life-saving devices. Medical-graded external power adapters enable critical medical equipment to function at its optimal performance while ensuring operator and patient safety. Selecting the right medical power external adapter contributes to the seamless operation and dependability of medical devices.
External Power Adapters in Medical Devices
Medical power external adapters are vital in the healthcare sector, powering medical devices for operational efficiency and safety.
These devices convert alternating current (AC) from a wall outlet into consistent direct current (DC) used by most medical electronic devices. To ensure stability, reliability and precise operation of the equipment, these adapters are required to provide accurate and repeatable power. Adapters are also key in charging portable medical devices like blood pressure meters and glucose meters.
External power adapters for medical applications are also designed to comply with global standards. Adapters are designed to handle various input voltages, allowing them to be used internationally. They comply with safety standards such as IEC 60601, ensuring protection from electrical hazards for patients and operators. Unlike some commercial power supplies, these adapters are built with additional safety features like low leakage current and extra insulation to minimize the risk of electrical shock.
Medical Power External Adapter Applications
External medical power adapters are essential for a wide range of medical devices, ensuring reliable power for patient monitoring systems (ECG machines, blood pressure monitors, pulse oximeters), laboratory equipment (centrifuges, analyzers, microscopes), and portable devices (ultrasound machines, defibrillators, infusion pumps). They provide stable power for therapeutic devices (dialysis machines, electrosurgical units) and home healthcare devices (nebulizers, home dialysis systems, sleep apnea machines). Adapters also support telemedicine devices (digital stethoscopes, teleconsultation setups), enabling remote healthcare delivery.
Choosing the Right Medical Power External Adapter
Choosing the right adapter is crucial for the functionality and safety of medical devices. Key factors are voltage, power rating, and safety features, which must match the device's specifications. Incorrect voltage or power rating can impair functionality or cause power shortages. The adapter’s connector must also be compatible with the device.
Medical adapters must also adhere to a stricter safety standard like IEC 60601 and feature low leakage current for patient safety. These stricter standards come with trade-offs. The adapters require higher creepage and clearance spacings on safety critical areas of the assembly leading to product size limitations. Due to the low leakage requirement, the product is unable to use high-value Y capacitors for filtering, which are typically employed to minimize electromagnetic noise and comply with established standards. Environmental factors such as temperature and humidity, as well as the demands of frequent use, should be considered.
A holistic approach is needed, considering integration with the medical device, user experience, and futureproofing. Adapters should be energy-efficient, compliant with regulations and supported by the manufacturer. Features like output voltage accuracy, low ripple and noise, overload protection, compact design and adequate cooling are also important.
Advanced Energy's Medical Power External Adapters
Advanced Energy has developed several series of its SL Power external adapters and external power supplies to meet the requirements for medical applications.
One example is the GE series. The GE family of external adapters offers three products ranging from 30 W to 150 W. These adapters feature an E-cap life of greater than five years, options up to IP67 rated enclosure and a three-year warranty, making them ideal for both medical and industrial applications.
Another series is the ME family of medical external power supplies that includes eight products ranging from 10 W to 240 W. The ME series is a high-performance family with E-cap life of more than seven years and meets Level VI requirements. The entire series under this family of low power external power supplies is approved to safety EN/IEC/UL60601-1, 3.2 and EN/IEC/UL60601-1-11:2010 for home healthcare (non-hospital use) applications.
Another series is the ME family of medical external power supplies that includes eight products ranging from 10 W to 240 W. The ME series is a high-performance family with E-cap life of more than seven years and meets Level VI requirements. The entire series under this family of low power external power supplies is approved to safety EN/IEC/UL60601-1, 3.2 and EN/IEC/UL60601-1-11:2010 for home healthcare (non-hospital use) applications.

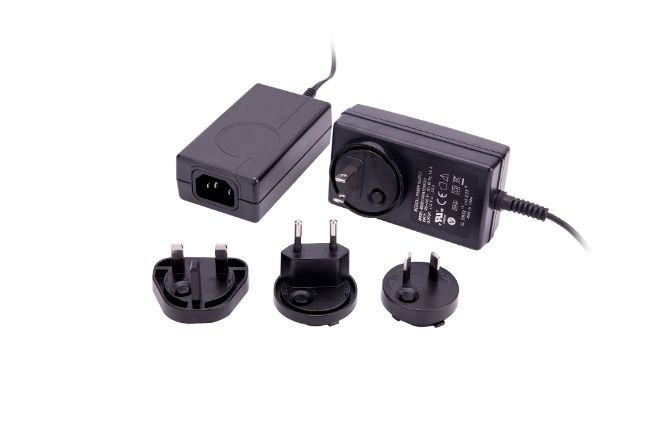

Fig. 1. Example of Advanced Energy’s ME series of medical external adapters

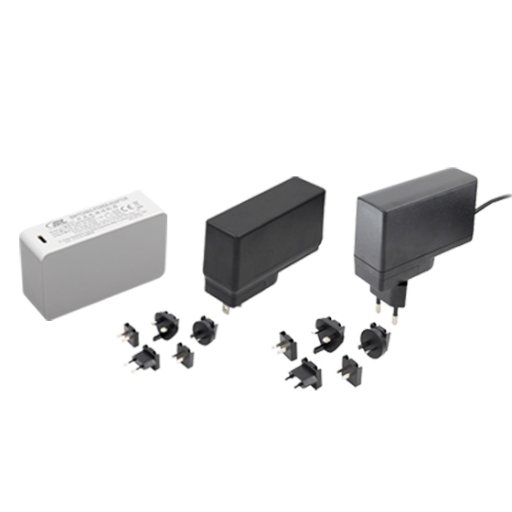

Fig. 2. Example of Advanced Energy’s SLE series of medical external adapters
The SLE series features nine external power supply families ranging from 6 to 90 W. With streamlined designs, the SLE series delivers an efficient cost structure without sacrificing the quality and reliability expected from an SL Power solution. Compliant to both medical and industrial safety standards, the SLE series offers incredible versatility.
Finally, the MENB series of medical external power supplies includes three products under this family ranging from 10 W to 60 W. The MENB series meets Level V requirements and provides a regulated output with low ripple. MENBs are certified to UL/EN/IEC60601-1, 3rd Edition. This series offers both wall mount and desktop versions.
Conclusion
Selecting the right medical power adapter is a decision that significantly impacts the functionality and safety of medical devices. The correct adapter ensures devices operate within their specifications, reducing malfunctions and extending equipment life. Meanwhile, compliance with medical safety standards like IEC 60601-1 is crucial for patient and operator safety and the right adapter choice enhances operational efficiency and accuracy in diagnostics and treatment, directly affecting patient outcomes.
Discover the ideal power solutions with Advanced Energy. Advanced Energy has experts available to discuss AE’s extensive range of medical power adapters to meet a variety of specific needs.
Michael Acepcion
Advanced Energy
Michael Acepcion is a Medical Product Line Manager at Advanced Energy.
